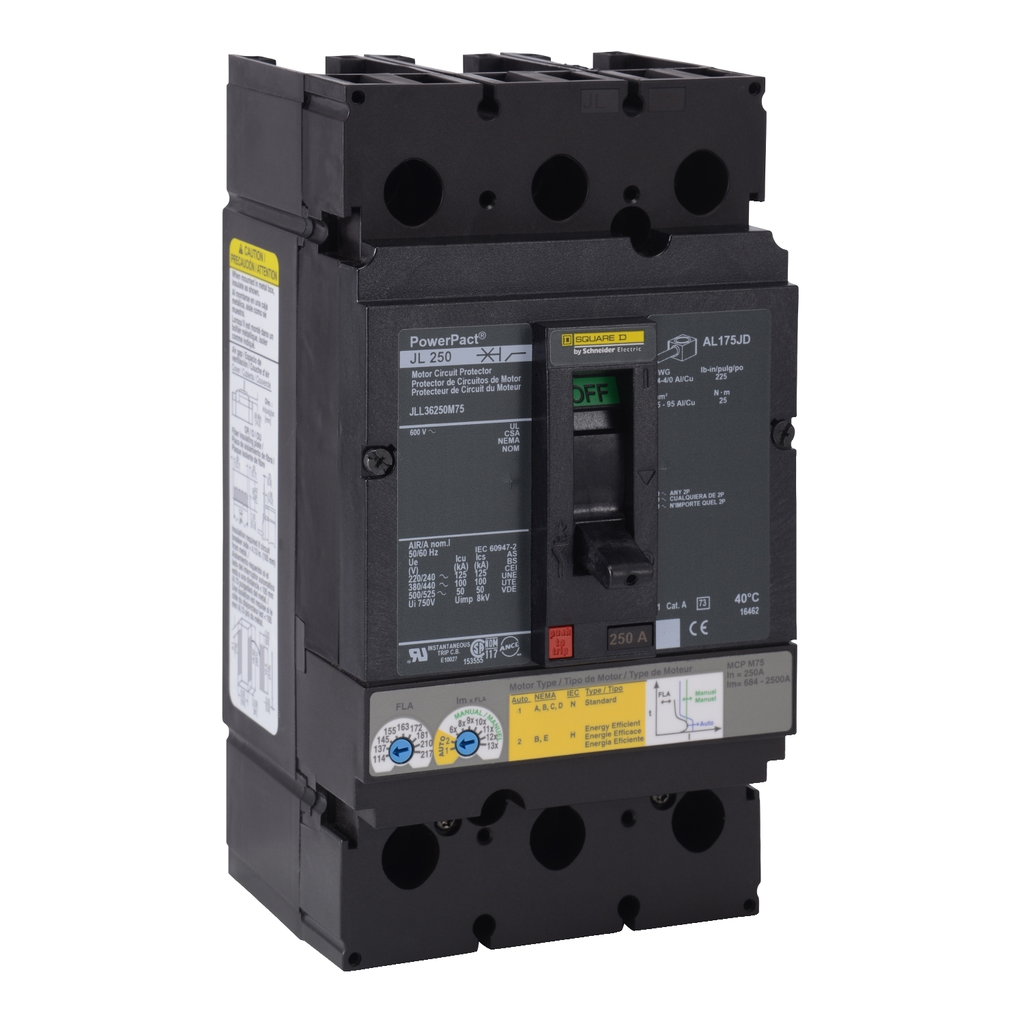

Motor circuit protector, PowerPacT J, 250A, 3 pole 50 kA, 600 VAC

Motor circuit protector, PowerPacT J, 250A, 3 pole 50 kA, 600 VAC

SQDJLL36250M75 JLL36250M75 785901661009
2317.87 / EACH
  • Amperage: 250 A
  • Certifications: CCC, CE, IEC, UR
  • Country of Origin: Mexico
  • Depth: 127.00 mm, 5 in
  • Height: 191.01 mm, 7.52 in
  • Mounting Type: Unit Mount
  • Number of Poles: 3
  • Trip Point: 684-2500 A
  • Voltage: 600 V
  • Warranty Length: 18 mth
  • Width: 104.65 mm, 4.12 in
The PowerPact™ J-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. The amperage ratings of the thermal trip elements are calibrated at 104°F (40°C) free air ambient temperature. Per the National Electric Code® (NEC®) and the Canadian Electrical Code, standard circuit breakers may only be applied continuously at up to 80% of their rating. This PowerPact J, Motor Circuit Protector and is 3-pole and has a breaking capacity of 100kA@600VAC and has a rated current of 250A. This ia a unit mount breaker and complies to UL listed, IEC, CCC, CE & CSA standards. With a magnetic hold current of and a magnetic tripping current of 684-2500A. Dimensions for this product are 7.52 in (H),4.12 in (W), 5 in (D) with an ambient temperature rating of 40 °C. This product comes with an 18 month warranty. Common Design Features, Mounting holes, door trim, and handle accessories.
  • Product Description
  • Specifications
The PowerPact™ J-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. The amperage ratings of the thermal trip elements are calibrated at 104°F (40°C) free air ambient temperature. Per the National Electric Code® (NEC®) and the Canadian Electrical Code, standard circuit breakers may only be applied continuously at up to 80% of their rating. This PowerPact J, Motor Circuit Protector and is 3-pole and has a breaking capacity of 100kA@600VAC and has a rated current of 250A. This ia a unit mount breaker and complies to UL listed, IEC, CCC, CE & CSA standards. With a magnetic hold current of and a magnetic tripping current of 684-2500A. Dimensions for this product are 7.52 in (H),4.12 in (W), 5 in (D) with an ambient temperature rating of 40 °C. This product comes with an 18 month warranty. Common Design Features, Mounting holes, door trim, and handle accessories.
  • Ordering And Shipping Details
    • Returnability : Yes
    • Country Of Origin : MX
    • GTIN : 00785901661009
    • Category : 01127-HL, JL UNT MNT MTR CIRCUIT PROTECTR
    • Discount Schedule : DE2
  • Contractual Warranty
    • Warranty : 18 months
  • Complementary
    • Width : 4.12 in (104.65 mm)
    • Ue Rated Operational Voltage : 600 V AC
    • Height : 7.52 in (191.01 mm)
    • Awg Gauge : AWG 3/0...350 kcmil aluminium/copper
    • In Rated Current : 250 A
    • Magnetic Tripping Current : 684…2500 A
    • Poles Description : 3P
    • Breaking Capacity : 125 kA 240 V AC || 100 kA 480 V AC || 50 kA 600 V AC
    • Electrical Connection : Lugs load || Lugs line
    • Tightening Torque : 230.12 lbf.in (26 N.m) 0.15…0.29 in² (95…185 mm²) AWG 3/0...350 kcmil)
    • Number Of Poles : 3
    • Mounting Mode : Unit mount
    • Depth : 5 in (127.00 mm)
  • Environment
    • Product Certifications : IEC || UR || CE || CCC
    • Ambient Air Temp For Op : 104 °F (40 °C)
  • Offer Sustainability
    • Green Premium Status : Green Premium product
    • Pvc Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • EU RoHs Directive : Compliant
    • Mercury Free : Yes
  • Main
    • Rating Code : L
    • Product Or Component Type : Motor Circuit Protector
    • Range Of Product : PowerPact J
    • Trip Unit Technology : Thermal-magnetic
