SQUARE D

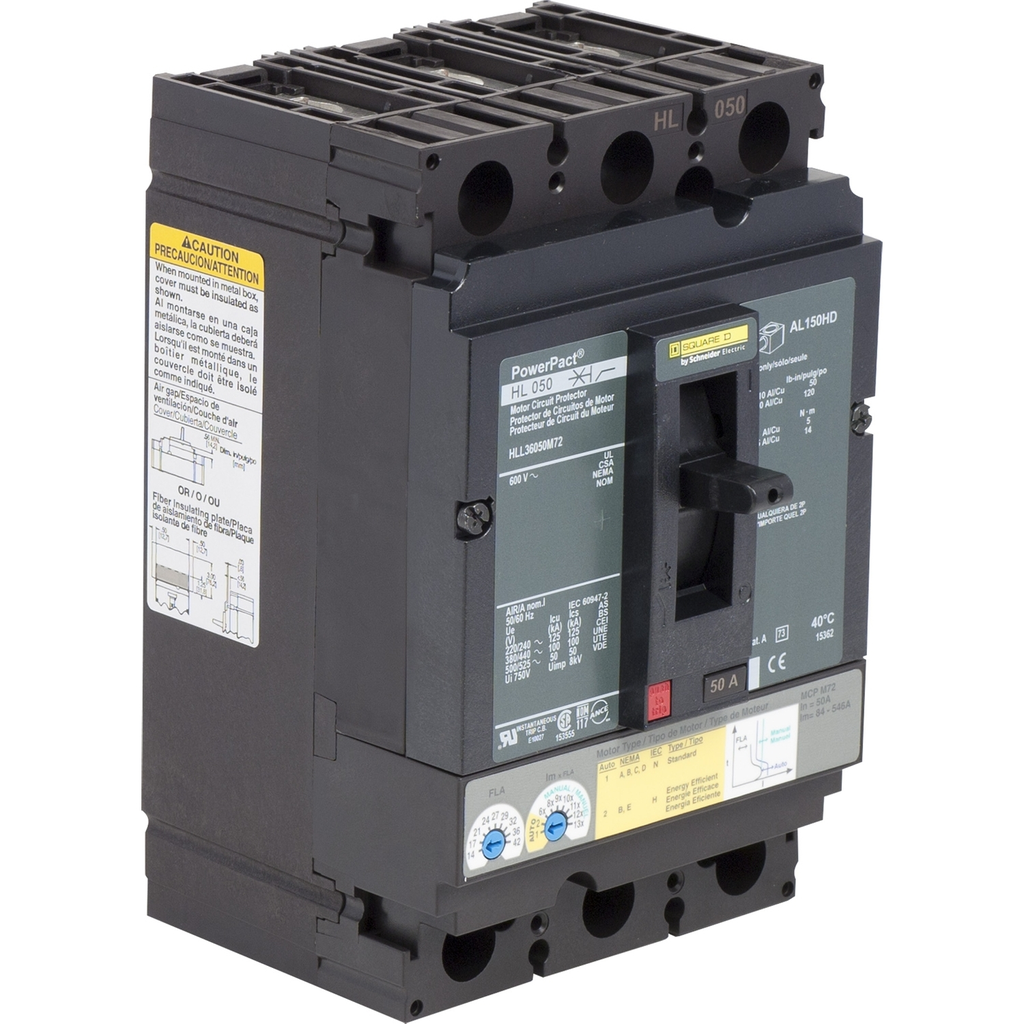

Motor circuit protector, PowerPacT H, unit mount, 50A, 3 pole,50 kA, 600 VAC, 80% rated

MOTOR CIRCUIT PROTECTOR 600V 5

SQDHLL36050M72 HLL36050M72 785901632412
1346.67 / EACH
  • Certifications: CCC, CE, IEC, UR
  • Depth: 4.36 in
  • Height: 6.4 in
  • Line Rated Current: 50-50 A
  • Mounting Type: Unit Mount
  • Trip Point: 84-546 A
  • Width: 4.12 in
PowerPact electronic Motor Circuit Protectors (MCP) are magnetic-only instantaneous-trip circuit breakers. Designed to offer short circuit protection, they are National Electrical Code (NEC) compliant when installed as part of a combination controller having motor overload protection. PowerPact electronic Motor Circuit Protectors has sensor ratings from 30–1200 A at up to 600 Vac. They have Electronic trip units with adjustable instantaneous trip ranges and comes in 3-pole available in unit mount and I-Line construction. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This PowerPact H, Motor Circuit Protector has a rated current of 50A and is a 3P breaker. This breaker has a breaking capacity of 50 kA@600VAC and has an electronic trip technology. This breaker complies to UL, CE, IEC & CSA standards. Thermal current for this breaker are 14-42 A with a magnetic tripping current of 84-546 A This product comes with an 18 months warranty.
  • Product Description
  • Specifications
PowerPact electronic Motor Circuit Protectors (MCP) are magnetic-only instantaneous-trip circuit breakers. Designed to offer short circuit protection, they are National Electrical Code (NEC) compliant when installed as part of a combination controller having motor overload protection. PowerPact electronic Motor Circuit Protectors has sensor ratings from 30–1200 A at up to 600 Vac. They have Electronic trip units with adjustable instantaneous trip ranges and comes in 3-pole available in unit mount and I-Line construction. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This PowerPact H, Motor Circuit Protector has a rated current of 50A and is a 3P breaker. This breaker has a breaking capacity of 50 kA@600VAC and has an electronic trip technology. This breaker complies to UL, CE, IEC & CSA standards. Thermal current for this breaker are 14-42 A with a magnetic tripping current of 84-546 A This product comes with an 18 months warranty.
  • Line Rated Current : 50-50 A
  • [Ith] Conventional Free Air Thermal Current : 14-42 A
  • Maximum Width : 4.12 in
  • [Ue] Rated Operational Voltage : 600 V AC
  • Maximum Height : 6.4 in
  • Product Certifications : UR || CCC || CE || IEC
  • Poles Description : 3P
  • Breaking Capacity Code : L
  • Awg Gauge : AWG 14...AWG 3/0 aluminium/copper
  • Magnetic Tripping Current : 84-546 A
  • Breaking Capacity : 125 kA 240 V AC || 100 kA 480 V AC || 50 kA 600 V AC
  • Mounting Mode : unit mount
  • Range Of Product : PowerPact H
  • Tightening Torque : 5-5 N.m 2.5-95 mm² AWG 14...AWG 3/0)
  • Maximum Depth : 4.36 in
  • Electrical Connection : lugs load || lugs line
  • Trip Unit Technology : electronic
  • Product Or Component Type : Motor Circuit Protector
  • Ambient Air Temperature For Operation : 40 °C
