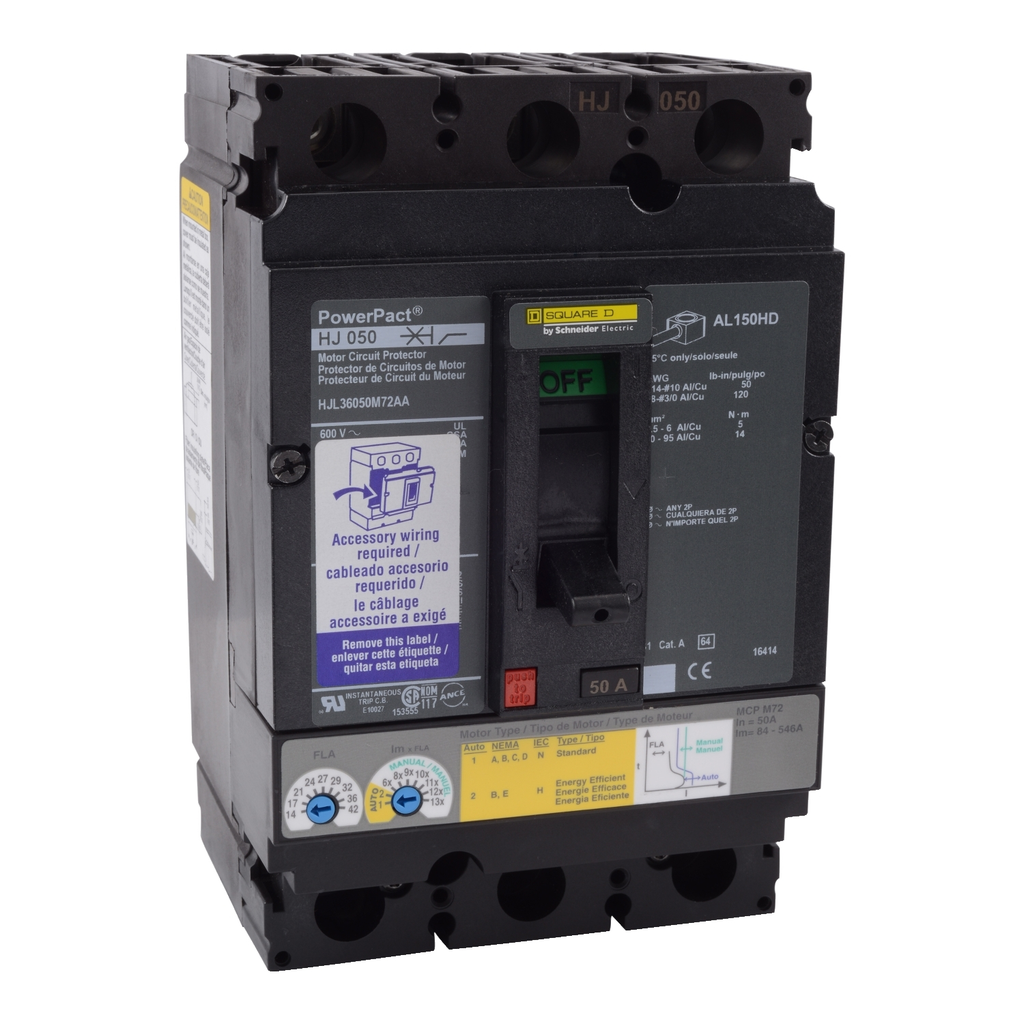

Motor circuit protector, PowerPacT H, unit mount, 50A, 3 pole, 25 kA, 600 VAC, alarm switch, 80% rated

Motor circuit protector, PowerPacT H, unit mount, 50A, 3 pole, 25 kA, 600 VAC, alarm switch, 80% rated

SQDHJL36050M72BC HJL36050M72BC 785901437543
1904.80 / EA
  • Amperage: 50 A
  • Certifications: CE, IEC, UR
  • Country of Origin: USA
  • Depth: 110.74 mm, 4.36 in
  • Height: 162.56 mm, 6.4 in
  • Mounting Type: Unit Mount
  • Number of Poles: 3
  • Trip Point: 84-546 A
  • Voltage: 600 V
  • Warranty Length: 18 mth
  • Width: 104.65 mm, 4.12 in
PowerPact electronic Motor Circuit Protectors (MCP) are magnetic-only instantaneous-trip circuit breakers. Designed to offer short circuit protection, they are National Electrical Code (NEC) compliant when installed as part of a combination controller having motor overload protection. PowerPact electronic Motor Circuit Protectors has sensor ratings from 30–1200 A at up to 600 Vac. They have Electronic trip units with adjustable instantaneous trip ranges and comes in 3-pole available in unit mount and I-Line construction. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This PowerPact H, Motor Circuit Protector has a rated current of 50A and is a 3P breaker. This breaker has a breaking capacity of 25 kA@600VAC and has an electronic trip technology. This breaker complies to UL, CE, IEC & CSA standards. Thermal current for this breaker are 14-42 A with a magnetic tripping current of 84-546 A This product comes with an 18 months warranty.
  • Product Description
  • Specifications
PowerPact electronic Motor Circuit Protectors (MCP) are magnetic-only instantaneous-trip circuit breakers. Designed to offer short circuit protection, they are National Electrical Code (NEC) compliant when installed as part of a combination controller having motor overload protection. PowerPact electronic Motor Circuit Protectors has sensor ratings from 30–1200 A at up to 600 Vac. They have Electronic trip units with adjustable instantaneous trip ranges and comes in 3-pole available in unit mount and I-Line construction. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This PowerPact H, Motor Circuit Protector has a rated current of 50A and is a 3P breaker. This breaker has a breaking capacity of 25 kA@600VAC and has an electronic trip technology. This breaker complies to UL, CE, IEC & CSA standards. Thermal current for this breaker are 14-42 A with a magnetic tripping current of 84-546 A This product comes with an 18 months warranty.
  • Complementary
    • Height : 6.4 in (162.56 mm)
    • Wire Gauge : AWG 14...AWG 3/0 aluminium/copper
    • Interrupt Rating : 100 kA 240 V AC || 65 kA 480 V AC || 25 kA 600 V AC
    • Depth : 4.36 in (110.74 mm)
    • Continuous Current Rating : 80 %
    • Number Of Poles : 3P
    • Ue Rated Operational Voltage : 600 V AC
    • Mounting Mode : Unit mount
    • Width : 4.12 in (104.65 mm)
    • Electrical Connection : Lugs load || Lugs line
    • Tightening Torque : 44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) AWG 14...AWG 3/0)
    • In Rated Current : 50 A
    • Ith Cnvtl Free Air Therm Crrt : 14…42 A
    • Magnetic Tripping Current : 84…546 A
  • Environment
    • Ambient Air Temp For Op : 104 °F (40 °C)
    • Product Certifications : IEC || UR || CE
  • Ordering And Shipping Details
    • Returnability : No
    • Discount Schedule : DE2
    • Country Of Origin : US
    • Category : 01125-HJ, JJ UNT MNT MTR CIRCUIT PROTECTR
    • GTIN : 00785901437543
  • Main
    • Options : Alarm switch
    • Range Of Product : PowerPact H
    • Trip Unit Type : Electronic
    • Rating Code : J
    • Product Or Component Type : Motor Circuit Protector
  • Contractual Warranty
    • Warranty : 18 months
  • Offer Sustainability
    • EU RoHs Directive : Compliant
    • Pvc Free : Yes
    • Mercury Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Green Premium Status : Green Premium product
