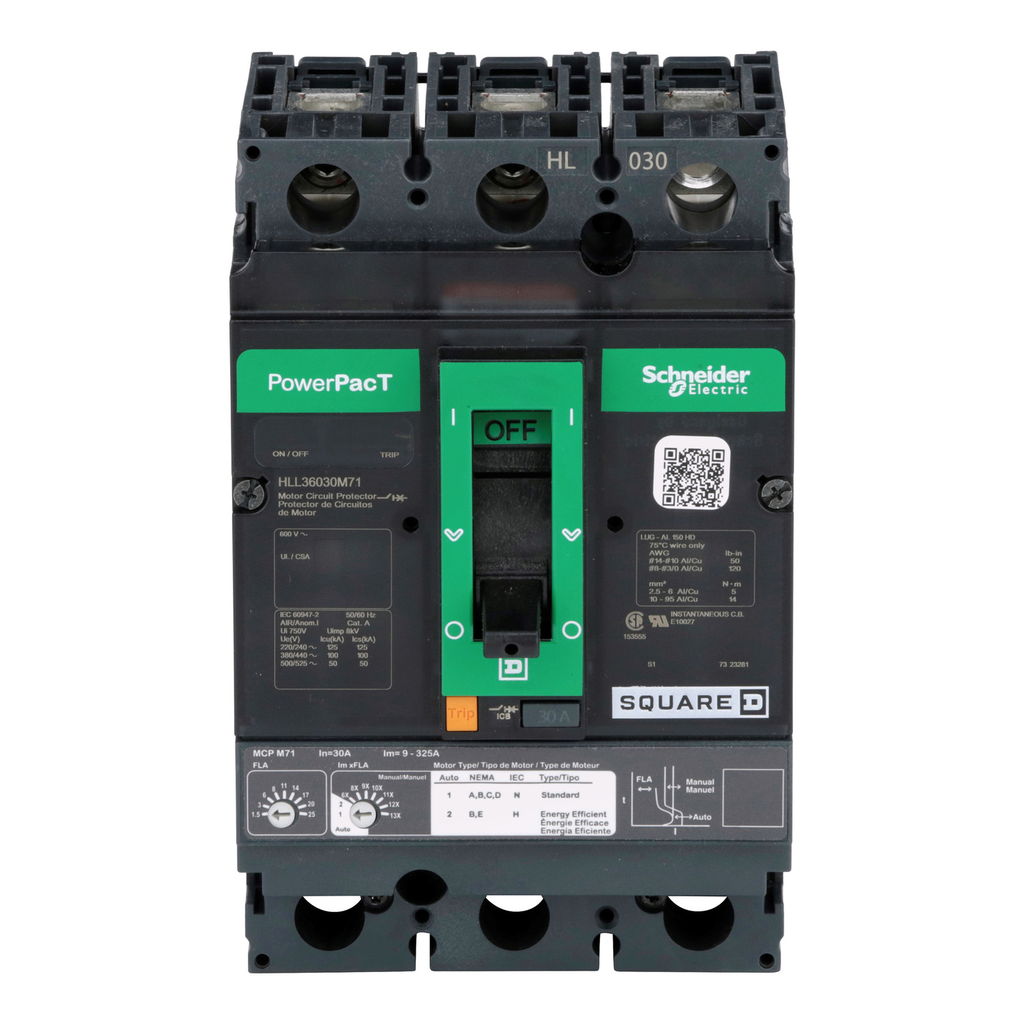

Motor circuit protector, PowerPacT H, unit mount, 30A, 3 pole,50 kA, 600 VAC, 80% rated

Motor circuit protector, PowerPacT H, unit mount, 30A, 3 pole,50 kA, 600 VAC, 80% rated

SQDHLL36030M71 HLL36030M71 785901632139
1060.51 / EACH
  • Certifications: CCC, CE, IEC, UR
  • Depth: 4.36 in
  • Height: 6.4 in
  • Line Rated Current: 30-30 A
  • Mounting Type: Unit Mount
  • Trip Point: 9-325 A
  • Width: 4.12 in
PowerPact electronic Motor Circuit Protectors (MCP) are magnetic-only instantaneous-trip circuit breakers. Designed to offer short circuit protection, they are National Electrical Code (NEC) compliant when installed as part of a combination controller having motor overload protection. PowerPact electronic Motor Circuit Protectors has sensor ratings from 30–1200 A at up to 600 Vac. They have Electronic trip units with adjustable instantaneous trip ranges and comes in 3-pole available in unit mount and I-Line construction. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This PowerPact H, Motor Circuit Protector has a rated current of 30A and is a 3P breaker. This breaker has a breaking capacity of 50 kA@600VAC and has an electronic trip technology. This breaker complies to UL, CE, IEC & CSA standards. Thermal current for this breaker are 1.5-25 A with a magnetic tripping current of 9-325 A. This product comes with an 18 months warranty.
  • Product Description
  • Specifications
PowerPact electronic Motor Circuit Protectors (MCP) are magnetic-only instantaneous-trip circuit breakers. Designed to offer short circuit protection, they are National Electrical Code (NEC) compliant when installed as part of a combination controller having motor overload protection. PowerPact electronic Motor Circuit Protectors has sensor ratings from 30–1200 A at up to 600 Vac. They have Electronic trip units with adjustable instantaneous trip ranges and comes in 3-pole available in unit mount and I-Line construction. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This PowerPact H, Motor Circuit Protector has a rated current of 30A and is a 3P breaker. This breaker has a breaking capacity of 50 kA@600VAC and has an electronic trip technology. This breaker complies to UL, CE, IEC & CSA standards. Thermal current for this breaker are 1.5-25 A with a magnetic tripping current of 9-325 A. This product comes with an 18 months warranty.
  • Mounting Mode : unit mount
  • Poles Description : 3P
  • [Ue] Rated Operational Voltage : 600 V AC
  • Awg Gauge : AWG 14...AWG 3/0 aluminium/copper
  • Maximum Width : 4.12 in
  • Maximum Depth : 4.36 in
  • Breaking Capacity Code : L
  • Electrical Connection : lugs load || lugs line
  • Magnetic Tripping Current : 9-325 A
  • Trip Unit Technology : electronic, standard,
  • Line Rated Current : 30-30 A
  • Product Or Component Type : Motor Circuit Protector
  • Breaking Capacity : 125 kA 240 V AC || 100 kA 480 V AC || 50 kA 600 V AC
  • Maximum Height : 6.4 in
  • Product Certifications : IEC || CE || UR || CCC
  • [Ith] Conventional Free Air Thermal Current : 1.5-25 A
  • Range Of Product : PowerPact H
  • Tightening Torque : 5-5 N.m 2.5-95 mm² AWG 14...AWG 3/0)
  • Ambient Air Temperature For Operation : 40 °C
