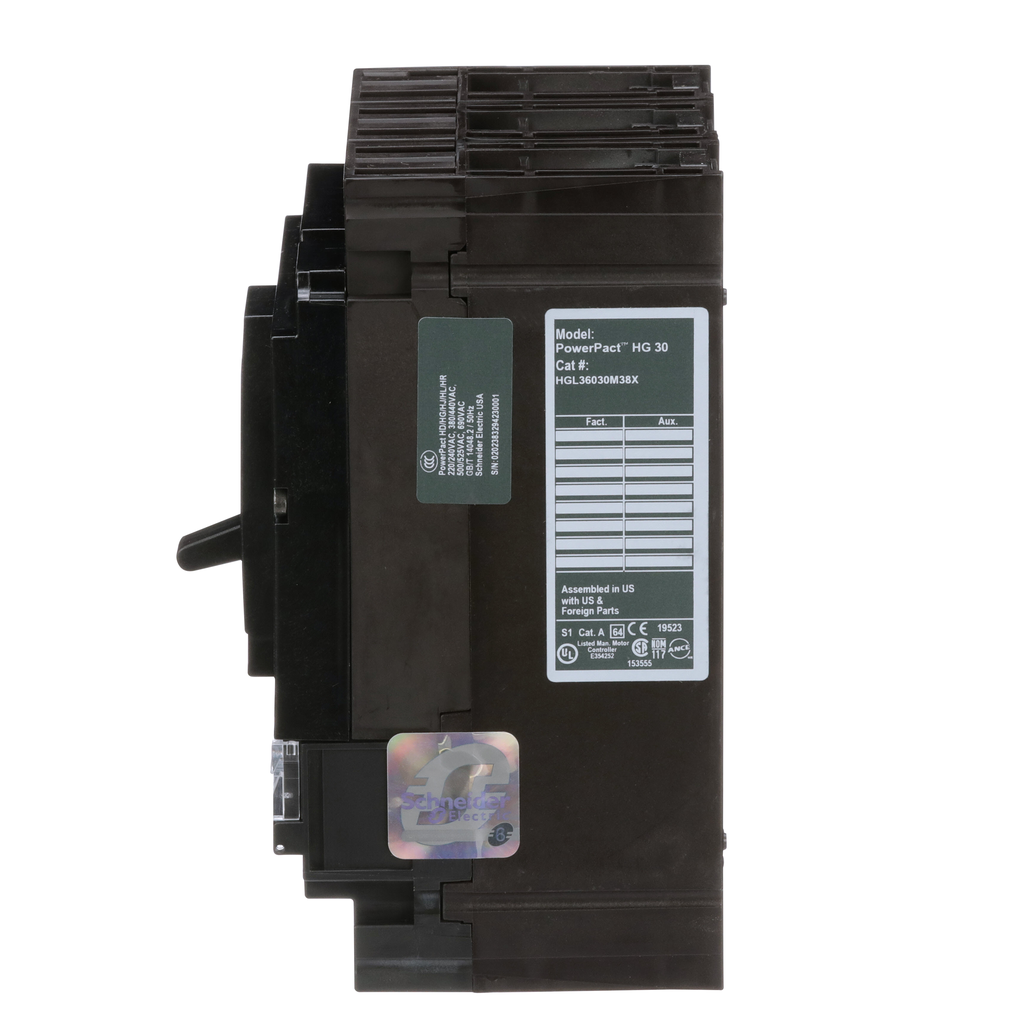

PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. Additionally, Micrologic 2.2M trip units provide thermal protection for overload and phase unbalance. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. This PowerPacT H, 30A, 3 pole, motor protector has a breaking capacity of 18kA at 600VAC. This unit has lugs on both the line and load side. These motor protectors accept the same accessories and terminals as PowerPacT H circuit breakers. This breaker has a continuous current rating of 80%. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.

• Environment
• Ambient Air Temperature For Operation : -25-70 °C
• Standards : UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
• Product Certifications : UL || CSA || NOM
• Ip Degree Of Protection : front cover IP40 IEC 60529
• Pollution Degree : 3 IEC 60947-1
• Ambient Air Temperature For Storage : -50-85 °C
• Quality Labels : CE
• Operating Altitude : < 6561.68 ft (2000 m) without derating || 5000 m with derating
• Contractual warranty
• Warranty : 18 months
• Offer Sustainability
• Rohs Exemption Information : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2206027EN
• Sustainable Offer Status : Green Premium product
• Pvc Free : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Circularity Profile : ENVEOLI2206027EN
• Eu Rohs Directive : Compliant with Exemptions
• Complementary
• Mounting Mode : unit mount lug)
• Network Frequency : 50/60 Hz
• Terminal Identifier : AL150HD
• [Ics] Rated Service Breaking Capacity : 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
• [Ith] Conventional Free Air Thermal Current : 14-25 A
• Trip Unit Technology : electronic, standard, MicroLogic 2.2 M, LSoI
• Trip Unit Name : MicroLogic 2.2 M
• Height : 163 mm
• [Ue] Rated Operational Voltage : 690 V AC 50/60 Hz IEC 60947-3
• Tightening Torque : 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
• Mounting Support : lug
• Breaking Capacity Code : G
• Protected Poles Description : 3t
• Number Of Slots : 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
• Electrical Connection : lugs, line || lugs, load
• Net Weight : 2.2 kg
• [Uimp] Rated Impulse Withstand Voltage : 8 kV IEC 60947-2
• Control Type : toggle
• Wire Stripping Length : 16 mm
• Line Rated Current : 30-30 A
• Utilisation Category : category A
• Continuous Current Rating : 80 %
• Breaking Capacity : 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
• [Ui] Rated Insulation Voltage : 750 V IEC 60947-2
• Suitability For Isolation : yes IEC 60947-2
• Communication Interface : Modbus || Ethernet
• Poles Description : 3P
• Quantity Per Set : 1
• Protection Type : short-circuit protection || overload protection || phase unbalance
• Awg Gauge : AWG 14...AWG 3/0 aluminium/copper terminal
• Color : Black
• Width : 104 mm
• Depth : 86 mm
• Specifications
• Product Or Component Type : Motor Circuit Protector
• Product Name : PowerPact H
• Range : PowerPact
• Device Application : distribution
