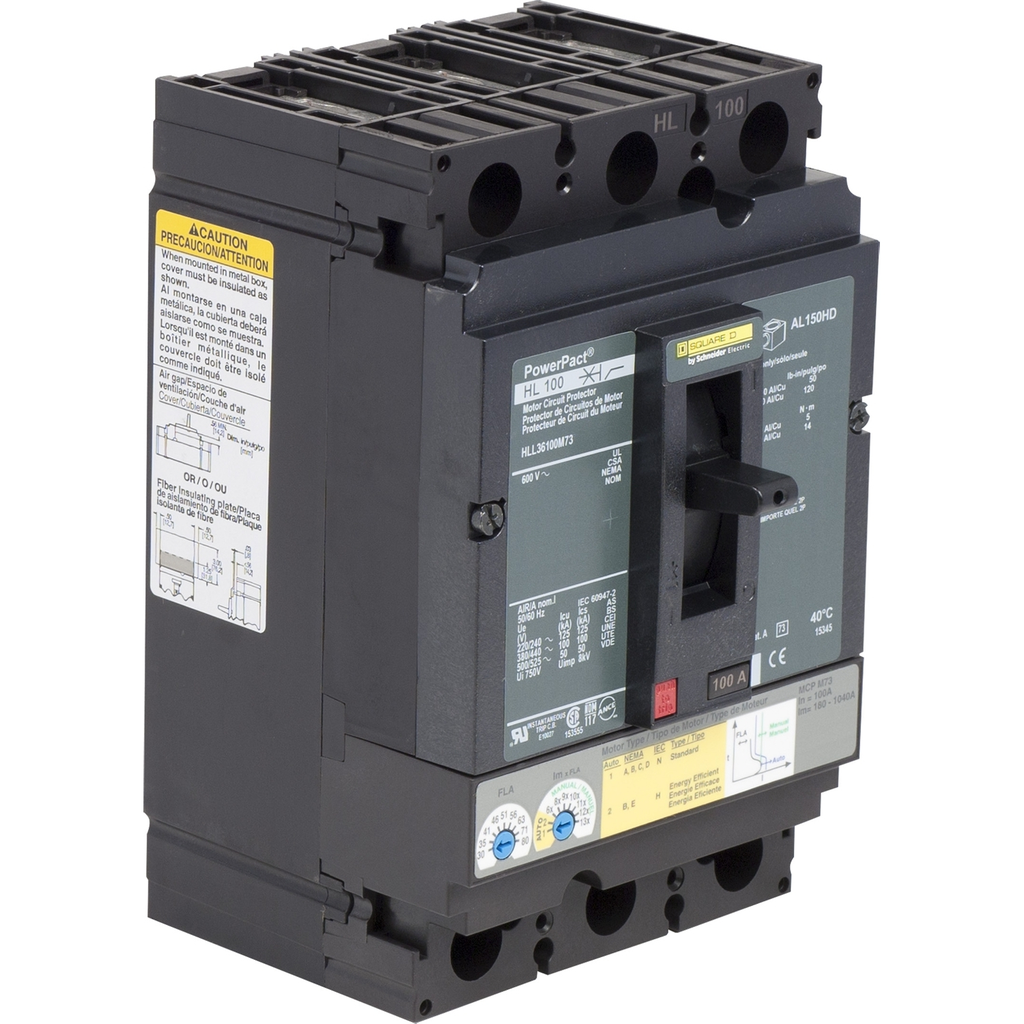

PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. This PowerPacT H, 100A, 3 pole, motor protector has a breaking capacity of 50kA at 600VAC. This unit has lugs on both the line and load side. These motor protectors accept the same accessories and terminals as PowerPacT H circuit breakers. This breaker has a continuous current rating of 80%. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.

• Prop 65
• WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Color : Black
• Conformance Attributes
• Product Certifications : UL, CSA, NOM
• Complementary Attributes
• ICS Rated Service Breaking Capacity : 125 kA 220/240 V AC 50/60 Hz IEC 60947-2, 125 kA 220/240 V AC 50/60 Hz IEC 60947-2, 125 kA 220/240 V AC 50/60 Hz IEC 60947-2, 125 kA 220/240 V AC 50/60 Hz IEC 60947-2, 125 kA 220/240 V AC 50/60 Hz IEC 60947-2, 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 50 kA 500/525 V AC 50/60 Hz IEC 60947-2, 50 kA 500/525 V AC 50/60 Hz IEC 60947-2, 50 kA 500/525 V AC 50/60 Hz IEC 60947-2, 50 kA 500/525 V AC 50/60 Hz IEC 60947-2, 50 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
• UE Rated Operational Voltage : 690 V AC 50/60 Hz IEC 60947-3, 690 V AC 50/60 Hz IEC 60947-3, 690 V AC 50/60 Hz IEC 60947-3, 690 V AC 50/60 Hz IEC 60947-3
• UI Rated Insulation Voltage : 750 V IEC 60947-2, 750 V IEC 60947-2
• UIMP Rated Impulse Withstand Voltage : 8 kV IEC 60947-2, 8 kV IEC 60947-2
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• AWG Gauge : AWG 14...AWG 3/0 aluminium/copper terminal, AWG 14...AWG 3/0 aluminium/copper terminal, AWG 14...AWG 3/0 aluminium/copper terminal
• Electrical Connection : lugs, line, lugs, line, lugs, load, lugs, load
• Mounting Mode : unit mount lug), unit mount lug)
• Number Of Slots : 2 auxiliary switch OF plug-in), 2 auxiliary switch OF plug-in), 2 auxiliary switch OF plug-in), 2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in), 1 alarm switch SD plug-in), 1 alarm switch SD plug-in), 1 alarm switch SD plug-in), 1 overcurrent trip switch SDE plug-in), 1 overcurrent trip switch SDE plug-in), 1 overcurrent trip switch SDE plug-in), 1 overcurrent trip switch SDE plug-in), 1 voltage release MN or MX plug-in), 1 voltage release MN or MX plug-in), 1 voltage release MN or MX plug-in), 1 voltage release MN or MX plug-in)
• Suitability For Isolation : yes IEC 60947-2, yes IEC 60947-2
• Tightening Torque : 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10), 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10), 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10), 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0), 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0), 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
• ICS Rated Service Breaking Capacity : 125 kA 220/240 V AC 50/60 Hz IEC 60947-2, 125 kA 220/240 V AC 50/60 Hz IEC 60947-2, 125 kA 220/240 V AC 50/60 Hz IEC 60947-2, 125 kA 220/240 V AC 50/60 Hz IEC 60947-2, 125 kA 220/240 V AC 50/60 Hz IEC 60947-2, 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 50 kA 500/525 V AC 50/60 Hz IEC 60947-2, 50 kA 500/525 V AC 50/60 Hz IEC 60947-2, 50 kA 500/525 V AC 50/60 Hz IEC 60947-2, 50 kA 500/525 V AC 50/60 Hz IEC 60947-2, 50 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
• Carbon Footprint Of The Distribution Phase A4 : 0.4172347701971229, 0.4 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 4 kg CO2 eq., 3.711720130505125
• Carbon Footprint Of The Installation Phase A5 : 0.0199928718948563, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 10 kg CO2 eq., 10.101441126512789
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 272 kg CO2 eq., 271.6949313026345
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : No
• Traceability : Yes
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2206027_V2
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 2 - SELECTED (Migration)
• Function Option Id : STANDARD
• Function Option : Standard
• Continuous Current Rating : 80 %
• Energy Efficiency Optimized : False
• Magnetic Tripping Current : 180-1040 A
• Package Weight Lbs : 1.985 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Motor Circuit Protector
• Protected Poles Description : 3t
• Quality Labels : CE
• Range : PowerPact
• Returnability : No
• Sustainable Packaging : No
• Terminal Identifier : AL150HD
• Total Lifecycle Carbon Footprint : 286 kg CO2 eq.
• Trip Unit Technology : thermal-magnetic
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2206027EN
• Pep Verification Date : 2025-05-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Functional Unit Description : Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
• IP Degree Of Protection : front cover IP40 IEC 60529, front cover IP40 IEC 60529, front cover IP40 IEC 60529
• Operating Altitude : < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, 5000 m with derating, 5000 m with derating
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 285.9453202017444
• Circularity Profile : ENVEOLI2206027_V2
• Environmental Disclosure : ENVPEP2206027EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Pep Code : ENVPEP2206027EN
• Pep Verification Date : 2025-05-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3-2023 12 08
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : Motor Circuit Protector
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
