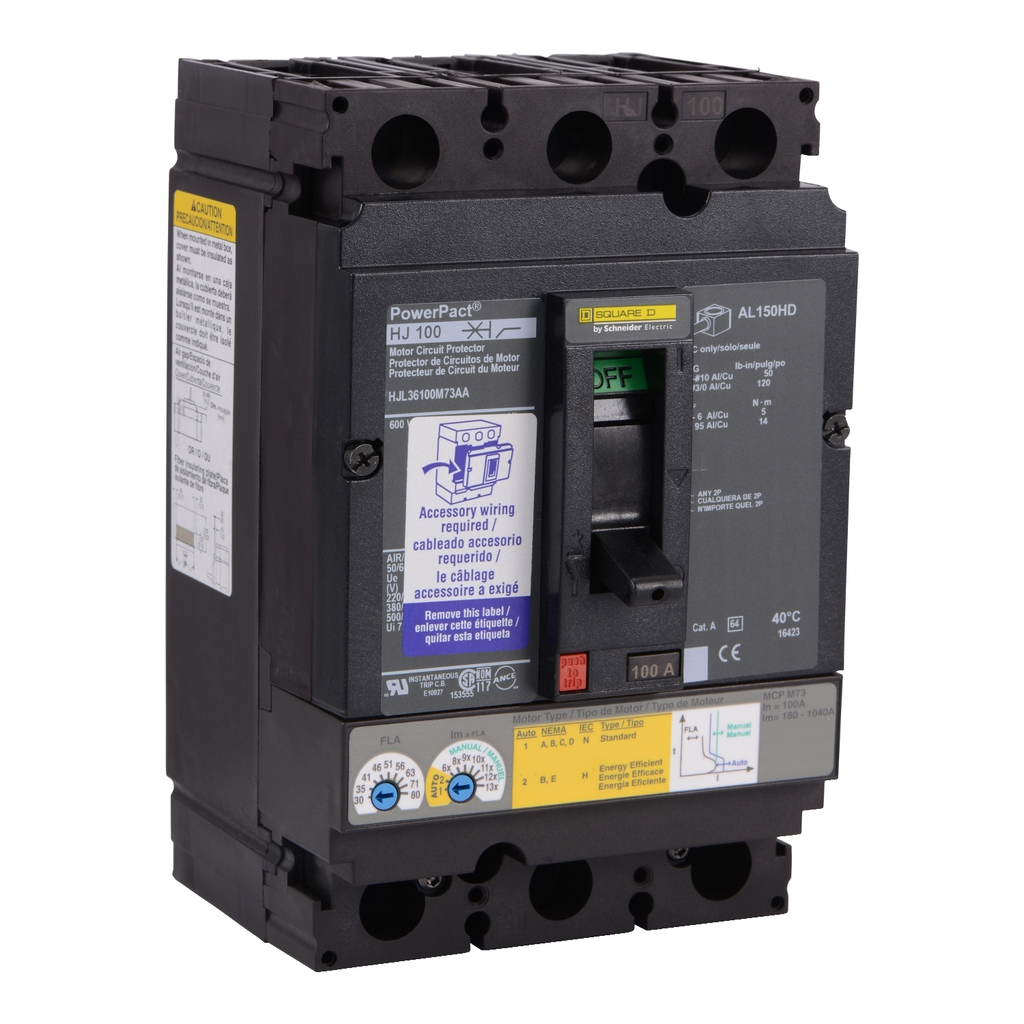

Motor circuit protector, PowerPacT H, unit mount, 100A, 3 pole, 25 kA, 600 VAC, auxiliary switch, 80% rated

Motor circuit protector, PowerPacT H, unit mount, 100A, 3 pole, 25 kA, 600 VAC, auxiliary switch, 80% rated

SQDHJL36100M73AA HJL36100M73AA 785901668053
2200.37 / EACH
  • Amperage: 100 A
  • Certifications: CE, IEC, UR
  • Country of Origin: USA
  • Depth: 110.74 mm, 4.36 in
  • Height: 162.56 mm, 6.4 in
  • Mounting Type: Unit Mount
  • Number of Poles: 3
  • Trip Point: 180-1040 A
  • Voltage: 600 V
  • Warranty Length: 18 mth
  • Width: 104.65 mm, 4.12 in
PowerPact electronic Motor Circuit Protectors (MCP) are magnetic-only instantaneous-trip circuit breakers. Designed to offer short circuit protection, they are National Electrical Code (NEC) compliant when installed as part of a combination controller having motor overload protection. PowerPact electronic Motor Circuit Protectors has sensor ratings from 30–1200 A at up to 600 Vac. They have Electronic trip units with adjustable instantaneous trip ranges and comes in 3-pole available in unit mount and I-Line construction. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This PowerPact H, Motor Circuit Protector has a rated current of 100A and is a 3P breaker. This breaker has a breaking capacity of 25 kA@600VAC and has an electronic trip technology. This breaker complies to UL, CE, IEC & CSA standards. Thermal current for this breaker are 30-80 A with a magnetic tripping current of 180-1040 A This product comes with an 18 months warranty.
  • Product Description
  • Specifications
PowerPact electronic Motor Circuit Protectors (MCP) are magnetic-only instantaneous-trip circuit breakers. Designed to offer short circuit protection, they are National Electrical Code (NEC) compliant when installed as part of a combination controller having motor overload protection. PowerPact electronic Motor Circuit Protectors has sensor ratings from 30–1200 A at up to 600 Vac. They have Electronic trip units with adjustable instantaneous trip ranges and comes in 3-pole available in unit mount and I-Line construction. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This PowerPact H, Motor Circuit Protector has a rated current of 100A and is a 3P breaker. This breaker has a breaking capacity of 25 kA@600VAC and has an electronic trip technology. This breaker complies to UL, CE, IEC & CSA standards. Thermal current for this breaker are 30-80 A with a magnetic tripping current of 180-1040 A This product comes with an 18 months warranty.
  • Contractual Warranty
    • Warranty : 18 months
  • Main
    • Range Of Product : PowerPact H
    • Rating Code : J
    • Product Or Component Type : Motor Circuit Protector
    • Options : Auxiliary switch 1 NC + 1 NC
    • Trip Unit Type : Electronic
  • Environment
    • Ambient Air Temp For Op : 104 °F (40 °C)
    • Product Certifications : UR || IEC || CE
  • Ordering And Shipping Details
    • Country Of Origin : US
    • Discount Schedule : DE2
    • GTIN : 00785901668053
    • Category : 01125-HJ, JJ UNT MNT MTR CIRCUIT PROTECTR
    • Returnability : No
  • Offer Sustainability
    • Mercury Free : Yes
    • Pvc Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • EU RoHs Directive : Compliant
    • Green Premium Status : Green Premium product
  • Complementary
    • Mounting Mode : Unit mount
    • Number Of Poles : 3P
    • Tightening Torque : 44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) AWG 14...AWG 3/0)
    • Height : 6.4 in (162.56 mm)
    • Depth : 4.36 in (110.74 mm)
    • Magnetic Tripping Current : 180…1040 A
    • Width : 4.12 in (104.65 mm)
    • In Rated Current : 100 A
    • Wire Gauge : AWG 14...AWG 3/0 aluminium/copper
    • Ith Cnvtl Free Air Therm Crrt : 30…80 A
    • Ue Rated Operational Voltage : 600 V AC
    • Interrupt Rating : 100 kA 240 V AC || 65 kA 480 V AC || 25 kA 600 V AC
    • Electrical Connection : Lugs load || Lugs line
