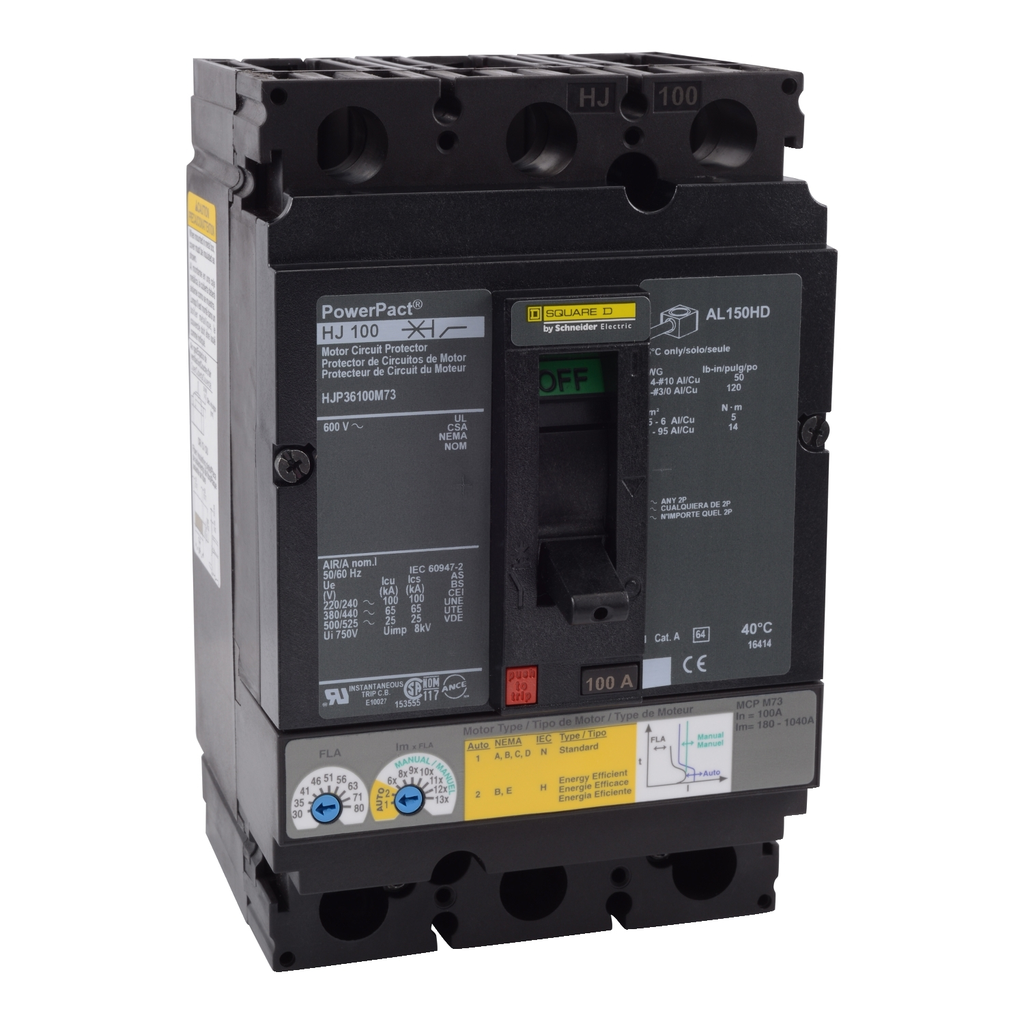

Motor circuit protector, PowerPacT H, unit mount, 100A, 3 pole, 25 kA, 600 VAC, 80% rated

Motor circuit protector, PowerPacT H, unit mount, 100A, 3 pole, 25 kA, 600 VAC, 80% rated

SQDHJP36100M73 HJP36100M73 785901324843
1864.03 / EA
  • Certifications: CE, IEC, UR
  • Depth: 4.36 in
  • Height: 6.4 in
  • Line Rated Current: 100-100 A
  • Mounting Type: Unit Mount
  • Trip Point: 180-1040 A
  • Width: 4.12 in
PowerPact electronic Motor Circuit Protectors (MCP) are magnetic-only instantaneous-trip circuit breakers. Designed to offer short circuit protection, they are National Electrical Code (NEC) compliant when installed as part of a combination controller having motor overload protection. PowerPact electronic Motor Circuit Protectors has sensor ratings from 30–1200 A at up to 600 Vac. They have Electronic trip units with adjustable instantaneous trip ranges and comes in 3-pole available in unit mount and I-Line construction. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This PowerPact H, Motor Circuit Protector has a rated current of 100A and is a 3P breaker. This breaker has a breaking capacity of 25 kA@600VAC and has an electronic trip technology. This breaker complies to UL, CE, IEC & CSA standards. Thermal current for this breaker are 30-80 A with a magnetic tripping current of 180-1040 A This product comes with an 18 months warranty.
  • Product Description
  • Specifications
PowerPact electronic Motor Circuit Protectors (MCP) are magnetic-only instantaneous-trip circuit breakers. Designed to offer short circuit protection, they are National Electrical Code (NEC) compliant when installed as part of a combination controller having motor overload protection. PowerPact electronic Motor Circuit Protectors has sensor ratings from 30–1200 A at up to 600 Vac. They have Electronic trip units with adjustable instantaneous trip ranges and comes in 3-pole available in unit mount and I-Line construction. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This PowerPact H, Motor Circuit Protector has a rated current of 100A and is a 3P breaker. This breaker has a breaking capacity of 25 kA@600VAC and has an electronic trip technology. This breaker complies to UL, CE, IEC & CSA standards. Thermal current for this breaker are 30-80 A with a magnetic tripping current of 180-1040 A This product comes with an 18 months warranty.
  • Trip Unit Technology : electronic
  • Breaking Capacity : 100 kA 240 V AC || 65 kA 480 V AC || 25 kA 600 V AC
  • Mounting Mode : unit mount
  • Maximum Width : 4.12 in
  • Maximum Depth : 4.36 in
  • Magnetic Tripping Current : 180-1040 A
  • Ambient Air Temperature For Operation : 40 °C
  • Line Rated Current : 100-100 A
  • Product Or Component Type : Motor Circuit Protector
  • Tightening Torque : 5.6-6.8 N.m
  • Poles Description : 3P
  • Range Of Product : PowerPact H
  • [Ith] Conventional Free Air Thermal Current : 30-80 A
  • Product Certifications : IEC || UR || CE
  • Maximum Height : 6.4 in
  • [Ue] Rated Operational Voltage : 600 V AC
  • Awg Gauge : AWG 14...AWG 3/0 aluminium/copper
  • Electrical Connection : terminal nut line || lugs load
  • Breaking Capacity Code : J
