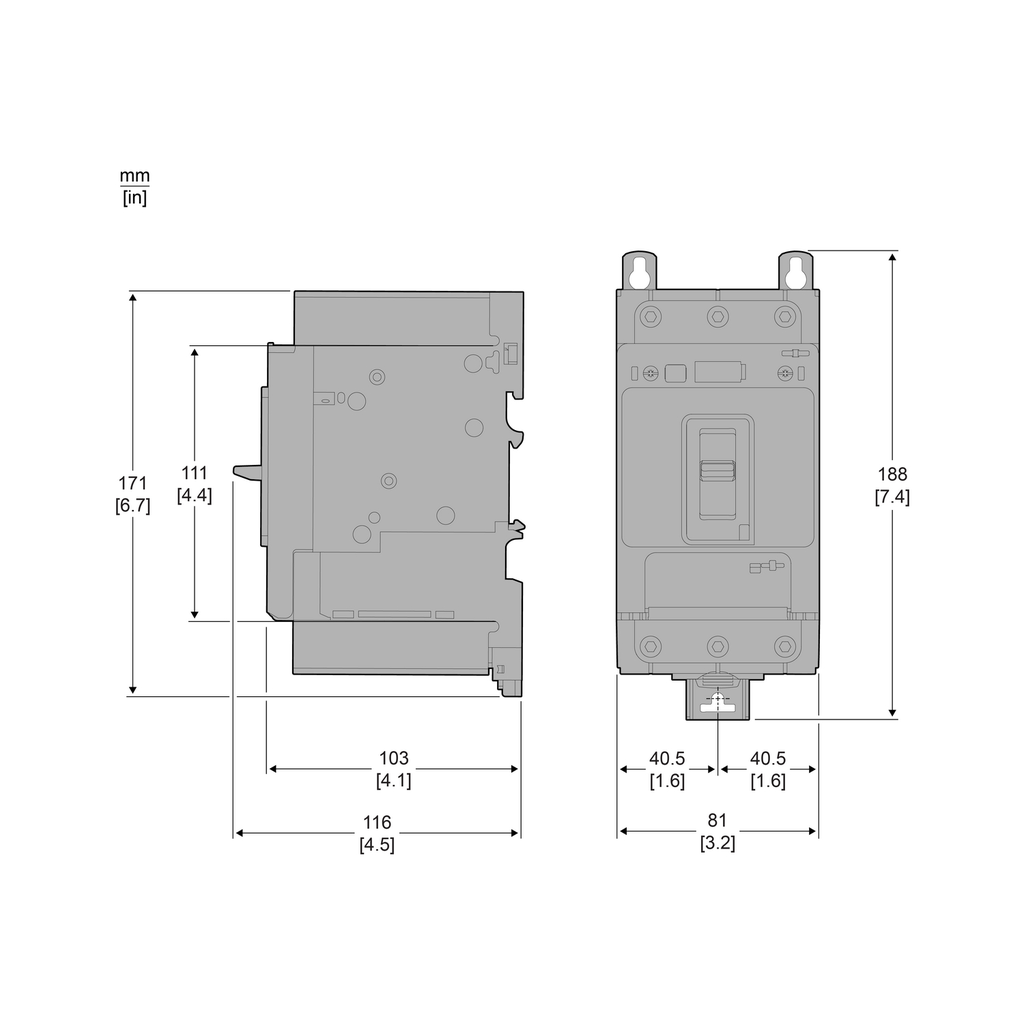

TeSys GV motor circuit breaker, 3 poles (3P), 50A/690V, for protection of 3-phase motors 11-22kW@400V. Multifunction circuit breaker UL489 compliant, it provides thermal magnetic protection and advanced motor protection, breaking capacity Icu 50kA@400V, start-stop control by toggle, connection by Everlink BTR screw terminals. Thermal protection adjustable by dials with a setting current Ir in range 20-50A, a selectable tripping class 10 or 20, rated tripping current 125%, magnetic protection at 17 In. Advanced protections are adjustable with a smartphone using wireless NFC and include short time delay protection Isd with a setting range 5-13 Ir, phase unbalance and loss protection, ground fault protection, locked rotor (jam), long start. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). It can be equiped externally with 1 or 2 auxiliary SDx modules in order to have alarming and fault differentiation. Multi standards certified (IEC, UL 489, CSA C22.2 N°5).

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Color : Gray RAL 7016), Gray RAL 7016)
• Complementary Attributes
• Rated Duty : continuous IEC 60947-4-1, continuous IEC 60947-4-1
• ICS Rated Service Short Circuit Breaking Capacity : 100 % 220/240 V AC 50/60 Hz IEC 60947-2, 100 % 220/240 V AC 50/60 Hz IEC 60947-2, 100 % 220/240 V AC 50/60 Hz IEC 60947-2, 100 % 220/240 V AC 50/60 Hz IEC 60947-2, 100 % 220/240 V AC 50/60 Hz IEC 60947-2, 100 % 380/415 V AC 50/60 Hz IEC 60947-2, 100 % 380/415 V AC 50/60 Hz IEC 60947-2, 100 % 380/415 V AC 50/60 Hz IEC 60947-2, 100 % 380/415 V AC 50/60 Hz IEC 60947-2, 100 % 380/415 V AC 50/60 Hz IEC 60947-2, 100 % 440 V AC 50/60 Hz IEC 60947-2, 100 % 440 V AC 50/60 Hz IEC 60947-2, 100 % 440 V AC 50/60 Hz IEC 60947-2, 100 % 440 V AC 50/60 Hz IEC 60947-2, 100 % 440 V AC 50/60 Hz IEC 60947-2, 100 % 500 V AC 50/60 Hz IEC 60947-2, 100 % 500 V AC 50/60 Hz IEC 60947-2, 100 % 500 V AC 50/60 Hz IEC 60947-2, 100 % 500 V AC 50/60 Hz IEC 60947-2, 100 % 500 V AC 50/60 Hz IEC 60947-2, 100 % 525 V AC 50/60 Hz IEC 60947-2, 100 % 525 V AC 50/60 Hz IEC 60947-2, 100 % 525 V AC 50/60 Hz IEC 60947-2, 100 % 525 V AC 50/60 Hz IEC 60947-2, 100 % 525 V AC 50/60 Hz IEC 60947-2, 25 % 660/690 V AC 50/60 Hz IEC 60947-2, 25 % 660/690 V AC 50/60 Hz IEC 60947-2, 25 % 660/690 V AC 50/60 Hz IEC 60947-2, 25 % 660/690 V AC 50/60 Hz IEC 60947-2, 25 % 660/690 V AC 50/60 Hz IEC 60947-2
• UE Rated Operational Voltage : 690 V AC 50/60 Hz IEC 60947-2, 690 V AC 50/60 Hz IEC 60947-2, 690 V AC 50/60 Hz IEC 60947-2, 690 V AC 50/60 Hz IEC 60947-2, 600Y/347 V AC 60 Hz UL 489, 600Y/347 V AC 60 Hz UL 489, 600Y/347 V AC 60 Hz UL 489, 600Y/347 V AC 60 Hz UL 489
• UI Rated Insulation Voltage : 800 V AC 50/60 Hz IEC 60947-2, 800 V AC 50/60 Hz IEC 60947-2, 800 V AC 50/60 Hz IEC 60947-2, 800 V AC 50/60 Hz IEC 60947-2
• UIMP Rated Impulse Withstand Voltage : 8 kV IEC 60947-2, 8 kV IEC 60947-2
• Line Rated Current : 50 A
• Important Information Attributes
• Electrical Durability : 20000 cycles AC-3 440 V In/2, 20000 cycles AC-3 440 V In/2, 20000 cycles AC-3 440 V In/2, 20000 cycles AC-3 440 V In/2, 10000 cycles AC-3 440 V In, 10000 cycles AC-3 440 V In, 10000 cycles AC-3 440 V In, 10000 cycles AC-3 440 V In
• Fire Resistance : 960 °C IEC 60695-2-11, 960 °C IEC 60695-2-11
• Mechanical Robustness : vibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6, vibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6, vibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6, vibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6, vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6, vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6, vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6, vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6, shocks 15 gn 11 ms IEC 60068-2-27, shocks 15 gn 11 ms IEC 60068-2-27, shocks 15 gn 11 ms IEC 60068-2-27, shocks 15 gn 11 ms IEC 60068-2-27
• Phase Failure Sensitivity : yes IEC 60947-4-1, yes IEC 60947-4-1
• Suitability For Isolation : yes IEC 60947-1, yes IEC 60947-1
• Tightening Torque : 9 N.m 16-95 mm², 9 N.m 16-95 mm², 5 N.m 1.5-10 mm², 5 N.m 1.5-10 mm²
• Utilisation Category : category A IEC 60947-2, category A IEC 60947-2, AC-3 IEC 60947-4-1, AC-3 IEC 60947-4-1
• ICS Rated Service Short Circuit Breaking Capacity : 100 % 220/240 V AC 50/60 Hz IEC 60947-2, 100 % 220/240 V AC 50/60 Hz IEC 60947-2, 100 % 220/240 V AC 50/60 Hz IEC 60947-2, 100 % 220/240 V AC 50/60 Hz IEC 60947-2, 100 % 220/240 V AC 50/60 Hz IEC 60947-2, 100 % 380/415 V AC 50/60 Hz IEC 60947-2, 100 % 380/415 V AC 50/60 Hz IEC 60947-2, 100 % 380/415 V AC 50/60 Hz IEC 60947-2, 100 % 380/415 V AC 50/60 Hz IEC 60947-2, 100 % 380/415 V AC 50/60 Hz IEC 60947-2, 100 % 440 V AC 50/60 Hz IEC 60947-2, 100 % 440 V AC 50/60 Hz IEC 60947-2, 100 % 440 V AC 50/60 Hz IEC 60947-2, 100 % 440 V AC 50/60 Hz IEC 60947-2, 100 % 440 V AC 50/60 Hz IEC 60947-2, 100 % 500 V AC 50/60 Hz IEC 60947-2, 100 % 500 V AC 50/60 Hz IEC 60947-2, 100 % 500 V AC 50/60 Hz IEC 60947-2, 100 % 500 V AC 50/60 Hz IEC 60947-2, 100 % 500 V AC 50/60 Hz IEC 60947-2, 100 % 525 V AC 50/60 Hz IEC 60947-2, 100 % 525 V AC 50/60 Hz IEC 60947-2, 100 % 525 V AC 50/60 Hz IEC 60947-2, 100 % 525 V AC 50/60 Hz IEC 60947-2, 100 % 525 V AC 50/60 Hz IEC 60947-2, 25 % 660/690 V AC 50/60 Hz IEC 60947-2, 25 % 660/690 V AC 50/60 Hz IEC 60947-2, 25 % 660/690 V AC 50/60 Hz IEC 60947-2, 25 % 660/690 V AC 50/60 Hz IEC 60947-2, 25 % 660/690 V AC 50/60 Hz IEC 60947-2
• ITH Conventional Free Air Thermal Current : 115 A IEC 60947-4-1, 115 A IEC 60947-4-1
• Carbon Footprint Of The Distribution Phase A4 : 0.47715861472900517, 0.5 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 3.8450121622011126, 4 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 0.4 kg CO2 eq., 0.42521649638042713
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 11 kg CO2 eq., 11.283512131039387
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 74 kg CO2 eq., 74.322
• Connections Terminals : EverLink BTR screw connectors top) 1 1.5-70 mm² - rigid, EverLink BTR screw connectors top) 1 1.5-70 mm² - rigid, EverLink BTR screw connectors top) 1 1.5-70 mm² - rigid, EverLink BTR screw connectors top) 1 1.5-70 mm² - rigid, EverLink BTR screw connectors top) 1 1.5-70 mm² - rigid, EverLink BTR screw connectors top) 1 1.5-50 mm² - flexible, EverLink BTR screw connectors top) 1 1.5-50 mm² - flexible, EverLink BTR screw connectors top) 1 1.5-50 mm² - flexible, EverLink BTR screw connectors top) 1 1.5-50 mm² - flexible, EverLink BTR screw connectors top) 1 1.5-50 mm² - flexible, EverLink BTR screw connectors bottom) 1 2.5-95 mm² - rigid, EverLink BTR screw connectors bottom) 1 2.5-95 mm² - rigid, EverLink BTR screw connectors bottom) 1 2.5-95 mm² - rigid, EverLink BTR screw connectors bottom) 1 2.5-95 mm² - rigid, EverLink BTR screw connectors bottom) 1 2.5-95 mm² - rigid, EverLink BTR screw connectors bottom) 1 2.5-70 mm² - flexible, EverLink BTR screw connectors bottom) 1 2.5-70 mm² - flexible, EverLink BTR screw connectors bottom) 1 2.5-70 mm² - flexible, EverLink BTR screw connectors bottom) 1 2.5-70 mm² - flexible, EverLink BTR screw connectors bottom) 1 2.5-70 mm² - flexible
• Local Data Status : Publishable
• Local Publishable Date : 2025-02-26
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• WEEE Applicability : Finished product
• WEEE Scope : In
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1704004EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Device Short Name : GV4PB
• Direct Connector : without
• Energy Efficiency Optimized : False
• Halogen Free Status : Halogen free plastic parts product
• Magnetic Tripping Current : 850-850 A
• Operating Position : any position
• Package Weight Lbs : 1.704 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : motor circuit breaker
• Range : TeSys Deca
• Range Of Product : TeSys GV4
• Returnability : Yes
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 90 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Add Ons : GV4AE11
• Pep Code : ENVPEP1704004EN
• Pep Verification Date : 2023-08-19
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : Protect during 20 years the motor against overloads and short-circuits in circuit with assigned voltage up to 690VAC and 115A rated current. This protection is ensured in accordance with the following parameters:& 10- Number of poles: 3& 10- Rated service breaking capacity Ics at 440VAC = 50kA (according to IEC 60947-2) & 10- Tripping curve: long time, short time and instantanous protections, dual class (10 and 20)
• Functional Unit Unit : unité (unit)
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
• IP Degree Of Protection : IP40 IEC 60529, IP40 IEC 60529
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
• ROHS Exemption Information : Yes
• Take Back : No
• Halogene Performance : Halogen free plastic parts product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 90.35289940434994
• Ambient Air Temperature For Operation : -25-70 °C
• Circularity Profile : ENVEOLI1704004EN
• Climatic Withstand : IACS E10
• Environmental Disclosure : ENVPEP1704004EN
• Halogen Content Performance : Halogen free plastic parts product
• Operating Altitude : 5000 m
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Pep Code : ENVPEP1704004EN
• Pep Verification Date : 2023-08-19
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : motor circuit breaker
• Range Of Product : TeSys GV4
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
