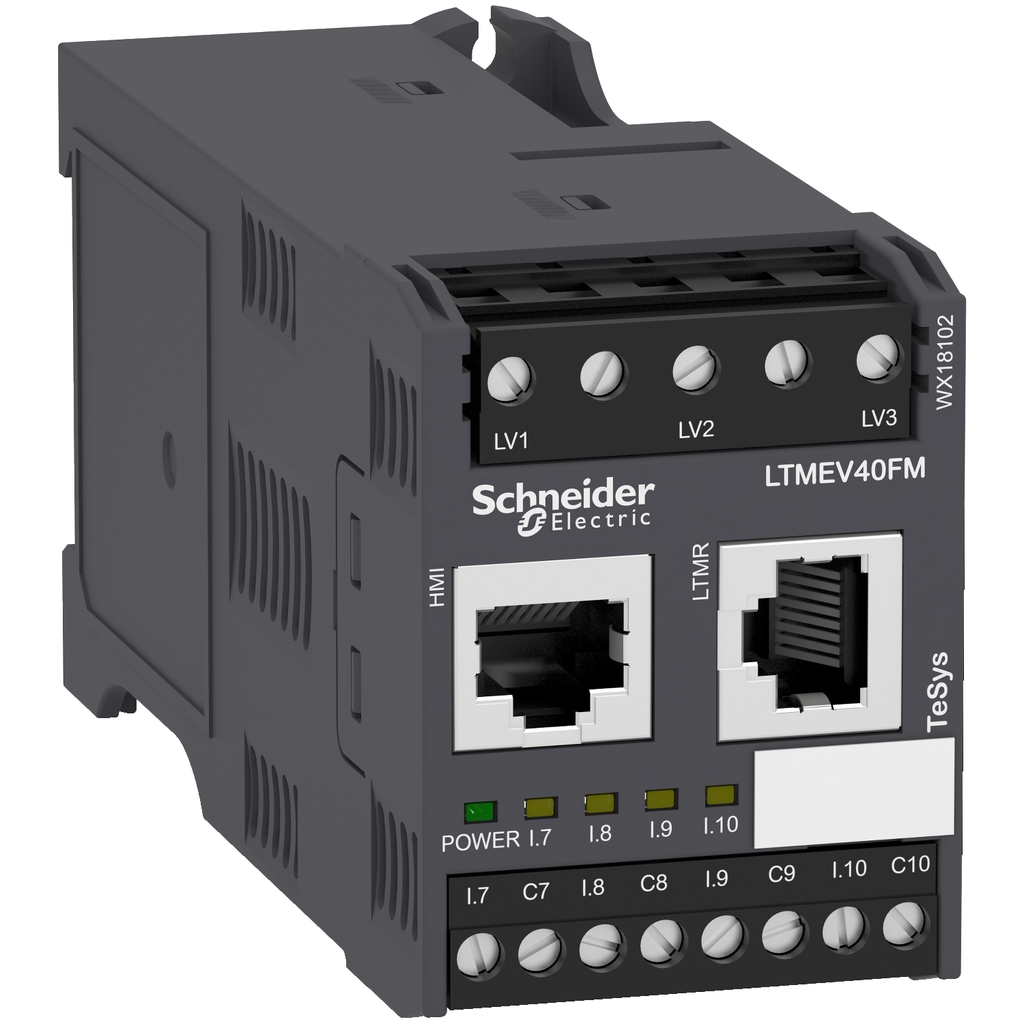

Motor Management, TeSys T, motor controller, extension module, 4 inputs, for LTMR controller, 100 to 240 VAC

Motor Management, TeSys T, motor controller, extension module, 4 inputs, for LTMR controller, 100 to 240 VAC

SQDLTMEV40FM LTMEV40FM 785901502401
266.96 / EACH
  • Certifications: ABS, ATEX, BV, CCC, CSA, C-tick, DNV, EAC, GL, KERI, LROS (Lloyds Register Of Shipping), NOM, RINA, RMRoS, UL
  • Country of Origin: China
  • Depth: 120.7 mm, 4.75 in
  • Height: 2.40 in, 61 mm
  • Operating Cycles: 1800 cyc/h
  • Standard: CSA C22.2 No 14, EN 60947-4-1, IACS E10, IEC 60947-4-1, UL 508
  • Warranty Length: 18 mth
  • Weight: 0.21 kg, 0.46 lb
  • Width: 1.77 in, 45 mm
TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. TeSys T manages most critical processes while reducing downtime and increasing productivity. TeSys T is a flexible system that integrates seamlessly into your automation system through five major communication protocols. TeSys T predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. TeSys T has a number of components that increase the flexibility of the system. This expansion module adds functionalities to the TeSys T controller. It adds voltage mesurement between phases up to 690 V nominal and 4 additional inputs. Module has 4 discrete logic inputs. 120 to 240 VAC is used to power the module. Module has the following certifications: UL, CSA NOM, ATEX, BV, EAC, RINA, LROS, DNV, ABS, GL, KERI, RMRoS, C-Tick and CCC.
  • Product Description
  • Specifications
TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. TeSys T manages most critical processes while reducing downtime and increasing productivity. TeSys T is a flexible system that integrates seamlessly into your automation system through five major communication protocols. TeSys T predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. TeSys T has a number of components that increase the flexibility of the system. This expansion module adds functionalities to the TeSys T controller. It adds voltage mesurement between phases up to 690 V nominal and 4 additional inputs. Module has 4 discrete logic inputs. 120 to 240 VAC is used to power the module. Module has the following certifications: UL, CSA NOM, ATEX, BV, EAC, RINA, LROS, DNV, ABS, GL, KERI, RMRoS, C-Tick and CCC.
  • Contractual Warranty
    • Warranty : 18 months
  • Environment
    • Operating Altitude : <= 6561.68 ft (2000 m) without derating
    • IP Degree Of Protection : IP20
    • Ambient Air Temp For Storage : -40…176 °F (-40…80 °C)
    • Standards : CSA C22.2 No 14 || IACS E10 || IEC 60947-4-1 || UL 508 || EN 60947-4-1
    • Product Certifications : LROS (Lloyds register of shipping) || ATEX || NOM || EAC || RMRoS || GL || UL || DNV || BV || RINA || KERI || C-tick || CSA || CCC || ABS
    • Mechanical Robustness : Shocks half sine wave acceleration15 Gn for 11 ms EN/IEC 60068-2-27 || Vibrations mounted on symmetrical rail1 Gn, 5...300 Hz EN/IEC 60068-2-6 || Vibrations plate mounted4 Gn, 5...300 Hz EN/IEC 60068-2-6
    • Fire Resistance : 1202 °F (650 °C) EN/IEC 60695-2-12 || 1760 °F (960 °C) UL 94
    • Protective Treatment : 12 x 24 hour cycles EN/IEC 60068-2-30 || 48 h EN/IEC 60070-2-11 || TH EN/IEC 60068
    • Ambient Air Temp For Op : -4…140 °F (-20…60 °C)
  • Main
    • Product Or Component Type : Extension module
    • Range Compatibility : TeSys T LTMR motor controller
    • Device Application : Equipment monitoring and control
    • Supply : Via the controller
    • Range : TeSys
    • Device Short Name : LTME
    • Product Name : TeSys T
  • Ordering And Shipping Details
    • GTIN : 00785901502401
    • Discount Schedule : I12
    • Nbr. Of Units In Pkg. : 1
    • Returnability : Yes
    • Country Of Origin : CN
    • Category : 22338 - SOLID STATE OVERLOAD RELAYS
  • Offer Sustainability
    • Green Premium Status : Green Premium product
    • Halogen Content Performance : Halogen free plastic parts product
    • Mercury Free : Yes
    • Pvc Free : Yes
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • EU RoHs Directive : Compliant
  • Complementary
    • Maximum Output Switching Frequency : 2 Hz
    • Product Weight : 0.46 lb(US) (0.21 kg)
    • Metering Type : Imbalance voltage || Active power P, P1, P2, P3 || Calculated active and reactive energy (+/- W.h, +/- VAR.h) || Voltage U21, U32, U13, V1, V2, V3 || Reactive power Q, Q1, Q2, Q3 || Frequency || Power factor
    • Height : 2.40 in (61 mm)
    • Contacts Type And Composition : Without
    • Overvoltage Category : III
    • Logic Input Number : 4
    • Width : 1.77 in (45 mm)
    • Depth : 4.75 in (120.7 mm)
    • Input Current : 3.1 mA 100 V || 7.5 mA 240 V
    • Current State 0 Guaranteed : Logic input 0...40 V 2...15 mA 25 ms
    • Electromagnetic Compatibility : Electrostatic discharge, 3 8 kV air, 6 kV contact)EN/IEC 61000-4-2) || Fast transients immunity test, level 3 2 kV)EN/IEC 61000-4-4) || Fast transients immunity test, level 4 4 kV)EN/IEC 61000-4-4) || Conducted RF disturbances 10 V)EN/IEC 61000-4-6) || Surges 1 kV)EN/IEC 61000-4-5) || Surges 2 kV)EN/IEC 61000-4-5) || Surges 2 kV)EN/IEC 61000-4-5) || Surges 4 kV)EN/IEC 61000-4-5) || Surges 2 kV)EN/IEC 61000-4-5)
    • Ui Rated Insulation Voltage : 690 V EN/IEC 60947-1 || 690 V CSA C22.2 No 14 || 690 V UL 508
    • Compatibility Code : LTME
    • Connections - Terminals : Control circuit connector 1 0.00…0.00 in² (0.25…2.5 mm²) AWG 24...AWG 14)flexible with cable end || Control circuit connector 1 0.00…0.00 in² (0.2…2.5 mm²) AWG 24...AWG 14)flexible without cable end || Control circuit connector 1 0.00…0.00 in² (0.25…2.5 mm²) AWG 24...AWG 14)flexible without cable end || Control circuit connector 1 0.00…0.00 in² (0.2…2.5 mm²) AWG 24...AWG 14)solid without cable end || Control circuit connector 2 0.00…0.00 in² (0.2…1 mm²) AWG 24...AWG 14)flexible with cable end || Control circuit connector 2 0.00…0.00 in² (0.2…1.5 mm²) AWG 24...AWG 14)flexible without cable end || Control circuit connector 2 0.00…0.00 in² (0.5…1.5 mm²) AWG 24...AWG 14)flexible without cable end || Control circuit connector 2 0.00…0.00 in² (0.2…1 mm²) AWG 24...AWG 14)solid without cable end
    • Connection Pitch : 0.20 in (5.08 mm)
    • Current State 1 Guaranteed : Logic input 79...264 V <= 15 mA 25 ms
    • Tightening Torque : Control circuit 4.43…5.31 lbf.in (0.5…0.6 N.m) flat 0.12 in (3 mm)
    • Measurement Accuracy : 1 % voltage 100...830 V) || 3 % power factor || 5 % active and reactive power
    • Uimp Rated Imp Wstd Voltage : 4 kV supply, inputs and outputs EN/IEC 60947-4-1 || 6 kV current or voltage measurement circuit EN/IEC 60947-4-1
    • Pollution Degree : 3
    • Operating Rate : 1800 cyc/h
