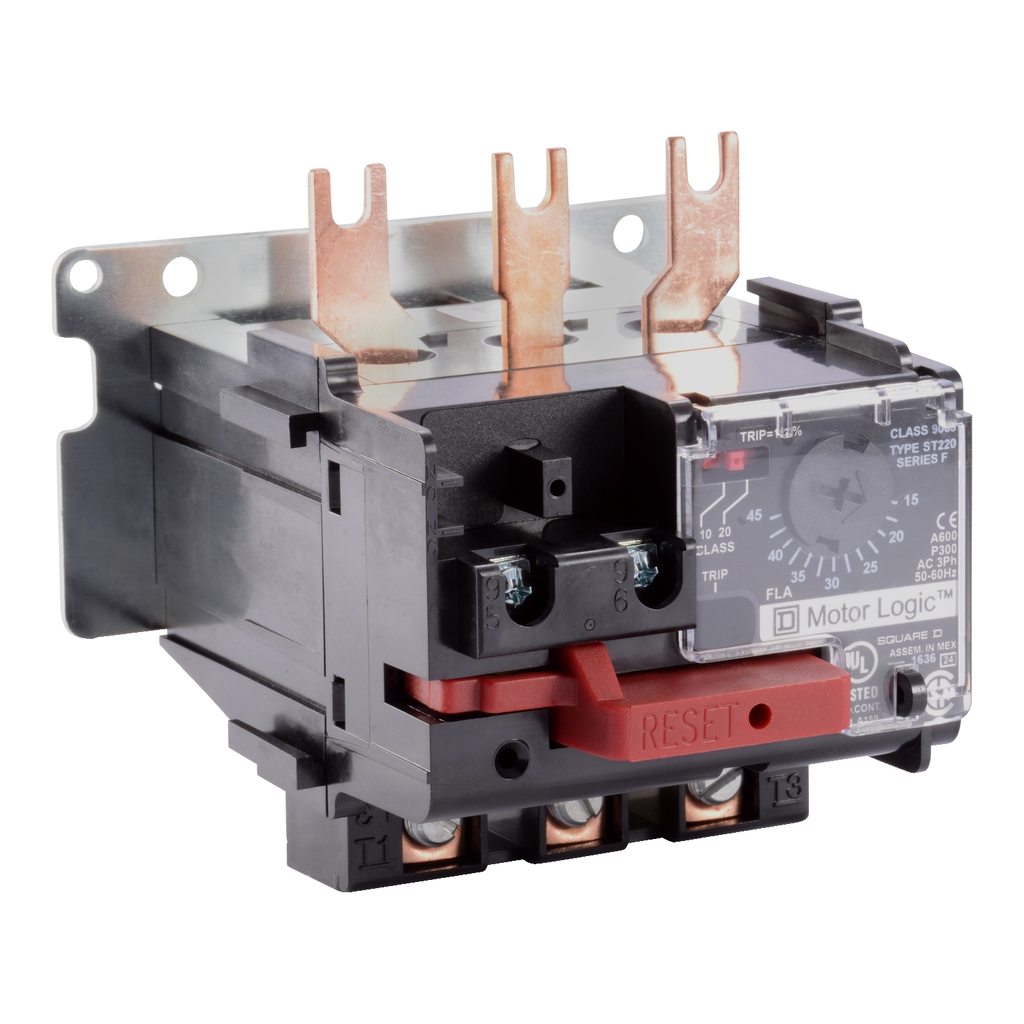

Motor Logic solid state overload relay, replacement, NEMA Size 2, 15 to 45 A, 600 VAC

Motor Logic solid state overload relay, replacement, NEMA Size 2, 15 to 45 A, 600 VAC

SQD9065ST220 9065ST220 SQD9065ST220
281.15 / EA
  • Country of Origin: Mexico
  • Depth: 3.51 in, 89.2 mm
  • Height: 3.51 in, 89.2 mm
  • NEMA: 2
  • Number of Phases: 3
  • Voltage: 600 V
  • Warranty Length: 18 mth
  • Width: 108.7 mm, 4.28 in
Motor Logic overload relays can be stand alone devices or can be used on Type S full voltage non-reversing and reversing starters and combination starters. Motor Logic relays are ambient insensitive and self powered. Designed to protect 50/60 Hz, three phase AC motors from overloads, phase unbalance and phase loss conditions. This overload relay is immune to harmonics in the line. Switch selectable trip class. The trip free operation will help the motor from overheating. The visible trip indicator and trip test function make trouble shooting much quicker. Electrical remote reset is available. Maximum voltage rating of 600 V. Separate mount overload relays are UL listed and CSA certified. Electrical remote reset is available. This overload relay is 3.51 inches tall, 4.28 inches wide and 3.51 inches deep. Motor Logic SSOLR are UL listed and CSA certified.
  • Product Description
  • Features
  • Specifications
Motor Logic overload relays can be stand alone devices or can be used on Type S full voltage non-reversing and reversing starters and combination starters. Motor Logic relays are ambient insensitive and self powered. Designed to protect 50/60 Hz, three phase AC motors from overloads, phase unbalance and phase loss conditions. This overload relay is immune to harmonics in the line. Switch selectable trip class. The trip free operation will help the motor from overheating. The visible trip indicator and trip test function make trouble shooting much quicker. Electrical remote reset is available. Maximum voltage rating of 600 V. Separate mount overload relays are UL listed and CSA certified. Electrical remote reset is available. This overload relay is 3.51 inches tall, 4.28 inches wide and 3.51 inches deep. Motor Logic SSOLR are UL listed and CSA certified.
  • Trip free operation
  • Visible trip indication
  • Harmonic immunity
  • Trip test function
  • Motor Logic Solid State Overload Relays
  • Trip class 10/20
  • Application flexibility
  • Easy retrofit of existing Square D™ Type S starters
  • Simple installation
  • Offer Sustainability
    • EU RoHs Directive : Compliant
    • Green Premium Status : Green Premium product
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Mercury Free : Yes
    • Pvc Free : Yes
  • Complementary
    • Mounting Support : Mounting plate
    • Depth : 3.51 in (89.2 mm)
    • Network Number Of Phases : 3 phase
    • Ue Rated Operational Voltage : 600 V AC
    • Nema Size : 2
    • Width : 4.28 in (108.7 mm)
    • Height : 3.51 in (89.2 mm)
  • Ordering And Shipping Details
    • Category : 21662 - 9065 SOLID STATE OVERLOAD RELAYS
    • Country Of Origin : MX
    • Returnability : Yes
    • GTIN : 00785901750017
    • Nbr. Of Units In Pkg. : 1
    • Discount Schedule : CP1
  • Main
    • Range Of Product : Motor Logic
    • Thermal Overload Type : Solid state
    • Product Destination : Starter
  • Contractual Warranty
    • Warranty : 18 months
