Motor Logic solid state overload relay, NEMA Size 1, 9 to 27 A, 600 VAC

Motor Logic solid state overload relay, NEMA Size 1, 9 to 27 A, 600 VAC

SQD9065SF120 9065SF120 785901749936
215.74 / EACH
  • Country of Origin: Mexico
  • Depth: 3.90 in, 99.1 mm
  • Height: 2.69 in, 68.3 mm
  • NEMA: 1
  • Number of Phases: 3
  • Voltage: 600 V
  • Warranty Length: 18 mth
  • Weight: 0.55 kg, 1.21 lb

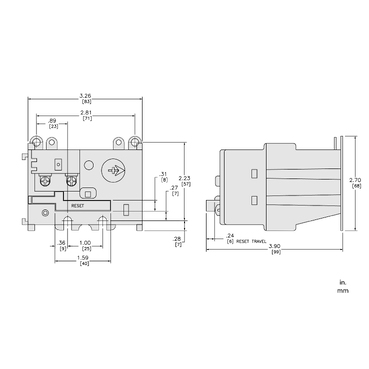

  • Width: 3.26 in, 82.8 mm
Motor Logic overload relays can be stand alone devices or can be used on Type S full voltage non-reversing and reversing starters and combination starters. Motor Logic relays are ambient insensitive and self powered. Designed to protect 50/60 Hz, three phase AC motors from overloads, phase unbalance and phase loss conditions. This overload relay is immune to harmonics in the line. Switch selectable trip class. The trip free operation will help the motor from overheating. The visible trip indicator and trip test function make trouble shooting much quicker. Electrical remote reset is available. Maximum voltage rating of 600 V. Separate mount overload relays are UL listed and CSA certified. Electrical remote reset is available. This overload relay is 2.69 inches tall, 3.26 inches wide and 3.90 inches deep. Relay weighs 1.21 lbs. Motor Logic SSOLR are UL listed and CSA certified.
  • Product Description
  • Features
  • Specifications
Motor Logic overload relays can be stand alone devices or can be used on Type S full voltage non-reversing and reversing starters and combination starters. Motor Logic relays are ambient insensitive and self powered. Designed to protect 50/60 Hz, three phase AC motors from overloads, phase unbalance and phase loss conditions. This overload relay is immune to harmonics in the line. Switch selectable trip class. The trip free operation will help the motor from overheating. The visible trip indicator and trip test function make trouble shooting much quicker. Electrical remote reset is available. Maximum voltage rating of 600 V. Separate mount overload relays are UL listed and CSA certified. Electrical remote reset is available. This overload relay is 2.69 inches tall, 3.26 inches wide and 3.90 inches deep. Relay weighs 1.21 lbs. Motor Logic SSOLR are UL listed and CSA certified.
  • Visible trip indication
  • Application flexibility
  • Trip class 10/20
  • Motor Logic Solid State Overload Relays
  • Simple installation
  • Trip test function
  • Harmonic immunity
  • Trip free operation
  • Easy retrofit of existing Square D™ Type S starters
  • Main
    • Range Of Product : Motor Logic
    • Thermal Overload Type : Solid state
  • Ordering And Shipping Details
    • Country Of Origin : MX
    • Discount Schedule : CP1
    • GTIN : 00785901749936
    • Category : 21662 - 9065 SOLID STATE OVERLOAD RELAYS
    • Nbr. Of Units In Pkg. : 1
    • Returnability : Yes
  • Contractual Warranty
    • Warranty : 18 months
  • Complementary
    • Product Weight : 1.21 lb(US) (0.55 kg)
    • Mounting Support : Mounting plate
    • Width : 3.26 in (82.8 mm)
    • Height : 2.69 in (68.3 mm)
    • Network Number Of Phases : 3 phase
    • Nema Size : 1
    • Depth : 3.90 in (99.1 mm)
    • Ue Rated Operational Voltage : 600 V AC
  • Offer Sustainability
    • Green Premium Status : Green Premium product
    • EU RoHs Directive : Compliant
    • Mercury Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Pvc Free : Yes
