Motor Circuit Protector, TeSys BV4, high fault, 2A, 600Y/347 VAC, 12 to 28 instantaneous trip, up to 100kA SCCR

Motor Circuit Protector, TeSys BV4, high fault, 2A, 600Y/347 VAC, 12 to 28 instantaneous trip, up to 100kA SCCR

SQDBV4T002J BV4T002J 360648132837
0.00 / EA
  • Amperage: 2 A
  • Certifications: CSA, UL
  • Country of Origin: Mexico
  • Depth: 116 mm, 4.57 in
  • Height: 162 mm, 6.38 in
  • Mounting Type: By Clips, By Screws
  • Operating Temperature: -13…158 °F (-25…70 °C)
  • Standard: CSA C22.2 No 5, UL 489
  • Strip Length: 0.79 in, 20 mm
  • Voltage: 347 V
  • Weight: 1.5 kg, 3.31 lb
  • Width: 3.19 in, 81 mm

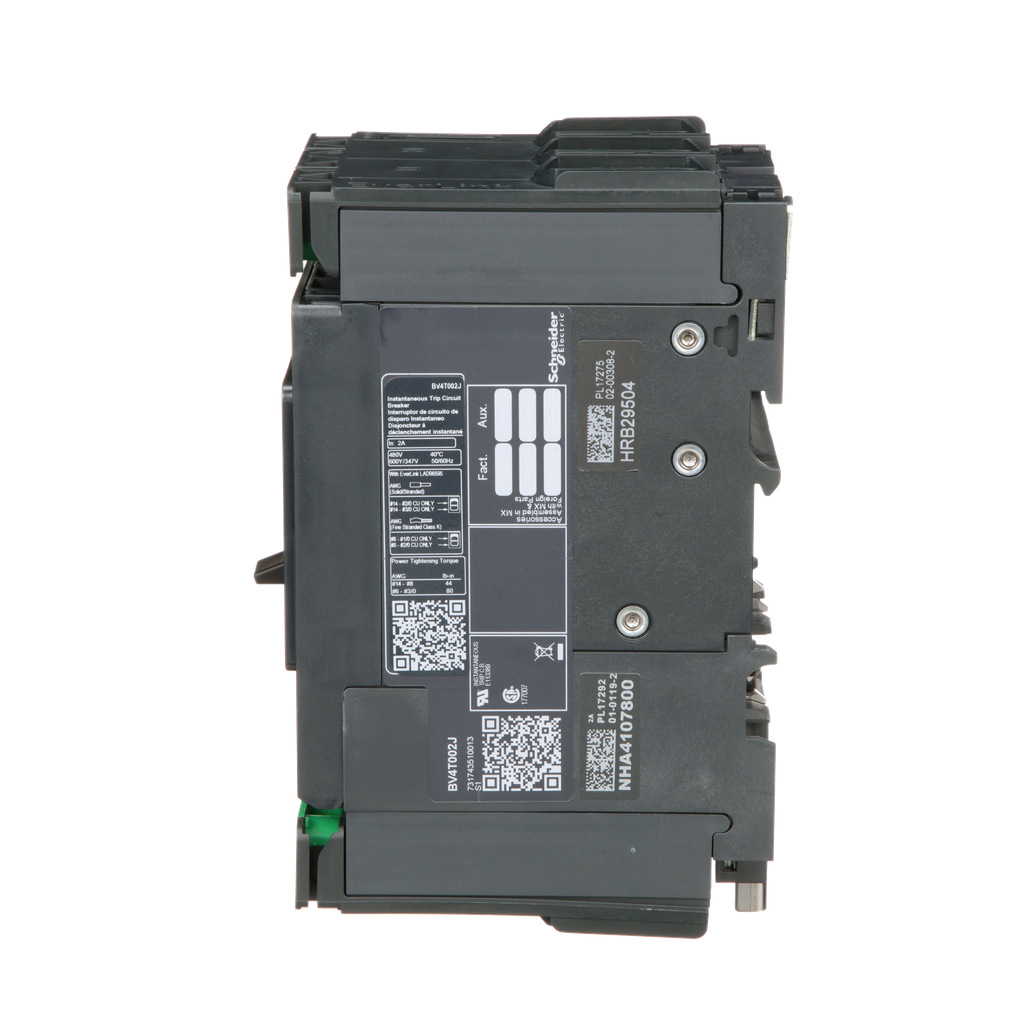

The TeSys BV4 motor circuit protector allows for compact motor protection in conjunction with both the TeSys and Square D NEMA product families for motor control. These protectors have UL508 type D combination ratings in accordance to current NEC installation requirements The BV4 is a magnetic only protector. It is a UL489 Listed circuit protector rated up to 100kA short circuit protection rating per a listed combination motor controller rating. This 3 pole motor circuit protector with high fault has a 2A rating. It also has an adjustable instantaneous trip rating of 12 to 28 amperes. BV4 protectors have wiring terminals with the EverLink patented technology. These terminals reduce the risk of loose bare cables due to copper creeping. Vibration withstand is improved and periodic retightening is no longer needed. BV4 motor circuit protectors can be installed directly to a panel or on standard DIN rail. This circuit protector is 6.38 inches tall, 3.19 inches wide and 4.57 inches deep. This motor circuit protector is UL Listed and CSA certified.
  • Product Description
  • Specifications
The TeSys BV4 motor circuit protector allows for compact motor protection in conjunction with both the TeSys and Square D NEMA product families for motor control. These protectors have UL508 type D combination ratings in accordance to current NEC installation requirements The BV4 is a magnetic only protector. It is a UL489 Listed circuit protector rated up to 100kA short circuit protection rating per a listed combination motor controller rating. This 3 pole motor circuit protector with high fault has a 2A rating. It also has an adjustable instantaneous trip rating of 12 to 28 amperes. BV4 protectors have wiring terminals with the EverLink patented technology. These terminals reduce the risk of loose bare cables due to copper creeping. Vibration withstand is improved and periodic retightening is no longer needed. BV4 motor circuit protectors can be installed directly to a panel or on standard DIN rail. This circuit protector is 6.38 inches tall, 3.19 inches wide and 4.57 inches deep. This motor circuit protector is UL Listed and CSA certified.
  • Ordering And Shipping Details
    • Discount Schedule : I11
    • GTIN : 03606481328373
    • Nbr. Of Units In Pkg. : 1
    • Country Of Origin : MX
    • Returnability : Yes
    • Category : 01124 - TESYS BV4 MOTOR CIRCUIT PROTECTORS
  • Offer Sustainability
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Mercury Free : Yes
    • EU RoHs Directive : Compliant
    • Green Premium Status : Green Premium product
    • Pvc Free : Yes
    • Halogen Content Performance : Halogen free plastic parts product
  • Main
    • Device Application : Motor
    • Magnetic Setting Range : 12…28 A 104 °F (40 °C)
    • Poles Description : 3P
    • Product Name : TeSys BV4
    • Protection Type : Short-circuit
    • Device Short Name : BV4
    • In Rated Current : 2 A 104 °F (40 °C)
    • Range : TeSys
    • Utilisation Category : Category A
    • Performance Level : High performance
    • Product Or Component Type : Motor Circuit Protector
    • Control Type : Toggle
    • Trip Unit Technology : Magnetic
  • Complementary
    • Mounting Support : 35 mm symmetrical DIN rail || 75 mm symmetrical DIN rail || Plate
    • Wire Stripping Length : 0.79 in (20 mm)
    • Electrical Durability : 40000 cycles AC-3 440 V In/2 || 40000 cycles AC-3 440 V In
    • Connection Pitch : 1.06 in (27 mm)
    • Local Signalling : for presence of auxiliary contacts flag (green)
    • Depth : 4.57 in (116 mm)
    • Height : 6.38 in (162 mm)
    • Ue Rated Operational Voltage : 600Y/347 V AC 50/60 Hz
    • Colour : Grey (RAL 7016)
    • Width : 3.19 in (81 mm)
    • Mechanical Durability : 40000 cycles
    • Number Of Slots : 1 alarm switch fault signalling contact, plug-in || 1 voltage release electrical remote tripping, plug-in || 1 auxiliary switch open/close contact, plug-in
    • Mounting Mode : By screws || By clips
    • Quantity Per Set : 1
    • Tightening Torque : 44.25 lbf.in (5 N.m) 0.02 in² (10 mm²) AWG 8) || 79.66 lbf.in (9 N.m) 0.02 in² (16 mm²) AWG 6)
    • Electrical Connection : 2 EverLink BTR screw connectors 0.00…0.11 in² (1.5…70 mm²) AWG 14...AWG 2/0), solid copper || 2 EverLink BTR screw connectors 0.00…0.08 in² (1.5…50 mm²) AWG 6...AWG 1/0), flexible copper
    • Product Weight : 3.31 lb(US) (1.5 kg)
  • Environment
    • Product Certifications : UL || CSA
    • Ambient Air Temp For Storage : -58…185 °F (-50…85 °C)
    • Ambient Air Temperature For Operation : -13…158 °F (-25…70 °C)
    • Operating Altitude : 6561.68 ft (2000 m) without derating || > 2000...5000 m with derating
    • IK Degree Of Protection : IK07 IEC 62262
    • IP Degree Of Protection : IP40 front face conforming to IEC 60529
    • Standards : UL 489 || CSA C22.2 No 5
    • Mechanical Robustness : Vibrations: +/- 1 mm 2...13.2 Hz conforming to IEC 60068-2-6 || Vibrations: 0.7 gn 13.2...100 Hz conforming to IEC 60068-2-6 || Shocks: 15 gn 11 ms conforming to IEC 60068-2-27
