SQUARE D

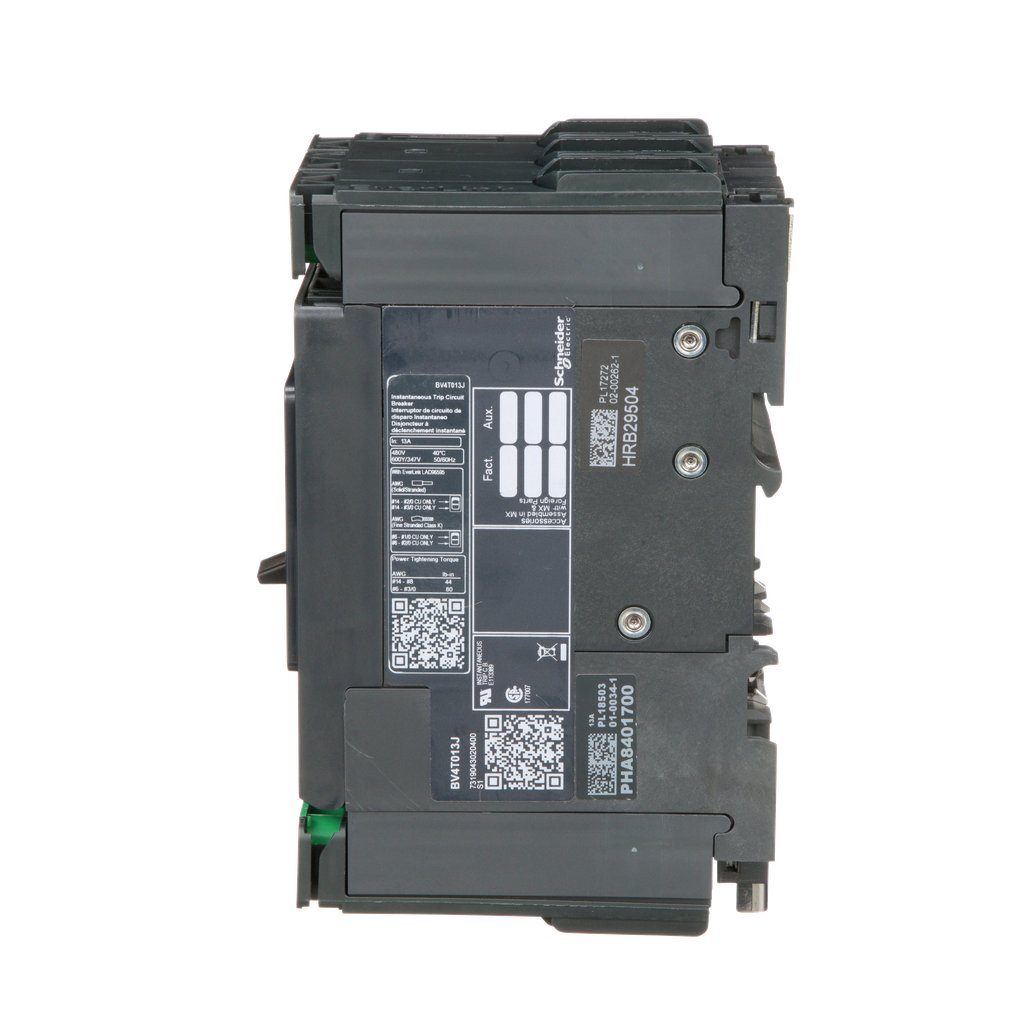

Motor Circuit Protector, TeSys BV4, high fault, 13A, 600Y/347 VAC, 53 to 195 instantaneous trip, up to 100kA SCCR

MOTOR CIRCUIT PROTECTOR 600Y/3

SQDBV4T013J BV4T013J 360648981103
0.00 / EA
  • Certifications: CSA, UL
  • Depth: 116 mm
  • Height: 162 mm
  • Line Rated Current: 13 A, 40 °C
  • Mounting Type: By Clips, By Screws
  • Net Weight: 1.5 kg
  • Standard: CSA C22.2 No 5, UL 489
  • Storage Temperature: -50-85 °C
  • Strip Length: 20 mm
  • Width: 81 mm
The TeSys BV4 motor circuit protector allows for compact motor protection in conjunction with both the TeSys and Square D NEMA product families for motor control. These protectors have UL508 type D combination ratings in accordance to current NEC installation requirements The BV4 is a magnetic only protector. It is a UL489 Listed circuit protector rated up to 100kA short circuit protection rating per a listed combination motor controller rating. This 3 pole motor circuit protector with high fault has a 13A rating. It also has an adjustable instantaneous trip rating of 53 to 195 amperes. BV4 protectors have wiring terminals with the EverLink patented technology. These terminals reduce the risk of loose bare cables due to copper creeping. Vibration withstand is improved and periodic retightening is no longer needed. BV4 motor circuit protectors can be installed directly to a panel or on standard DIN rail. This circuit protector is 6.38 inches tall, 3.19 inches wide and 4.57 inches deep. This motor circuit protector is UL Listed and CSA certified.
  • Product Description
  • Specifications
The TeSys BV4 motor circuit protector allows for compact motor protection in conjunction with both the TeSys and Square D NEMA product families for motor control. These protectors have UL508 type D combination ratings in accordance to current NEC installation requirements The BV4 is a magnetic only protector. It is a UL489 Listed circuit protector rated up to 100kA short circuit protection rating per a listed combination motor controller rating. This 3 pole motor circuit protector with high fault has a 13A rating. It also has an adjustable instantaneous trip rating of 53 to 195 amperes. BV4 protectors have wiring terminals with the EverLink patented technology. These terminals reduce the risk of loose bare cables due to copper creeping. Vibration withstand is improved and periodic retightening is no longer needed. BV4 motor circuit protectors can be installed directly to a panel or on standard DIN rail. This circuit protector is 6.38 inches tall, 3.19 inches wide and 4.57 inches deep. This motor circuit protector is UL Listed and CSA certified.
  • Operating Altitude : > 2000...5000 m with derating || 6561.68 ft (2000 m) without derating
  • Product Name : TeSys BV4
  • Protection Type : short-circuit
  • Tightening Torque : 5-5 N.m 10-10 mm² AWG 8) || 9-9 N.m 16-16 mm² AWG 6)
  • Trip Unit Rating : 53-195 A 40 °C
  • Maximum Width : 81 mm
  • Performance Level : high performance
  • Connection Pitch : 27 mm
  • Mounting Support : 75 mm symmetrical DIN rail || 35 mm asymmetrical DIN rail || plate
  • Electrical Durability : 40000 cycles AC-3 440 V In/2 || 40000 cycles AC-3 440 V In
  • Mounting Mode : by clips || by screws
  • Trip Unit Technology : magnetic
  • Ambient Air Temperature For Storage : -50-85 °C
  • Product Certifications : UL || CSA
  • Connections - Terminals : 2 EverLink BTR screw connectors 1.5-50 mm² AWG 6...AWG 1/0), flexible copper || 2 EverLink BTR screw connectors 1.5-70 mm² AWG 14...AWG 2/0), solid copper
  • Color : Gray RAL 7016)
  • Ip Degree Of Protection : IP40 front face IEC 60529
  • Number Of Slots : 1 auxiliary switch open/close contact, plug-in || 1 voltage release electrical remote tripping, plug-in || 1 alarm switch fault signalling contact, plug-in
  • Net Weight : 1.5 kg
  • Ik Degree Of Protection : IK07 IEC 62262
  • Mechanical Robustness : vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6 || vibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6 || shocks 15 gn 11 ms IEC 60068-2-27
  • Poles Description : 3P
  • Utilisation Category : category A
  • [Ue] Rated Operational Voltage : 600Y/347 V AC 50/60 Hz
  • Maximum Depth : 116 mm
  • Mechanical Durability : 40000 cycles
  • Local Signalling : for presence of auxiliary contacts flag (green)
  • Wire Stripping Length : 20 mm
  • Line Rated Current : 13 A 40 °C
  • Maximum Height : 162 mm
  • Standards : UL 489 || CSA C22.2 No 5
  • Control Type : toggle
  • Device Application : motor
  • Range : TeSys
  • Product Or Component Type : Motor Circuit Protector
  • Ambient Air Temperature For Operation : -25-70 °C
