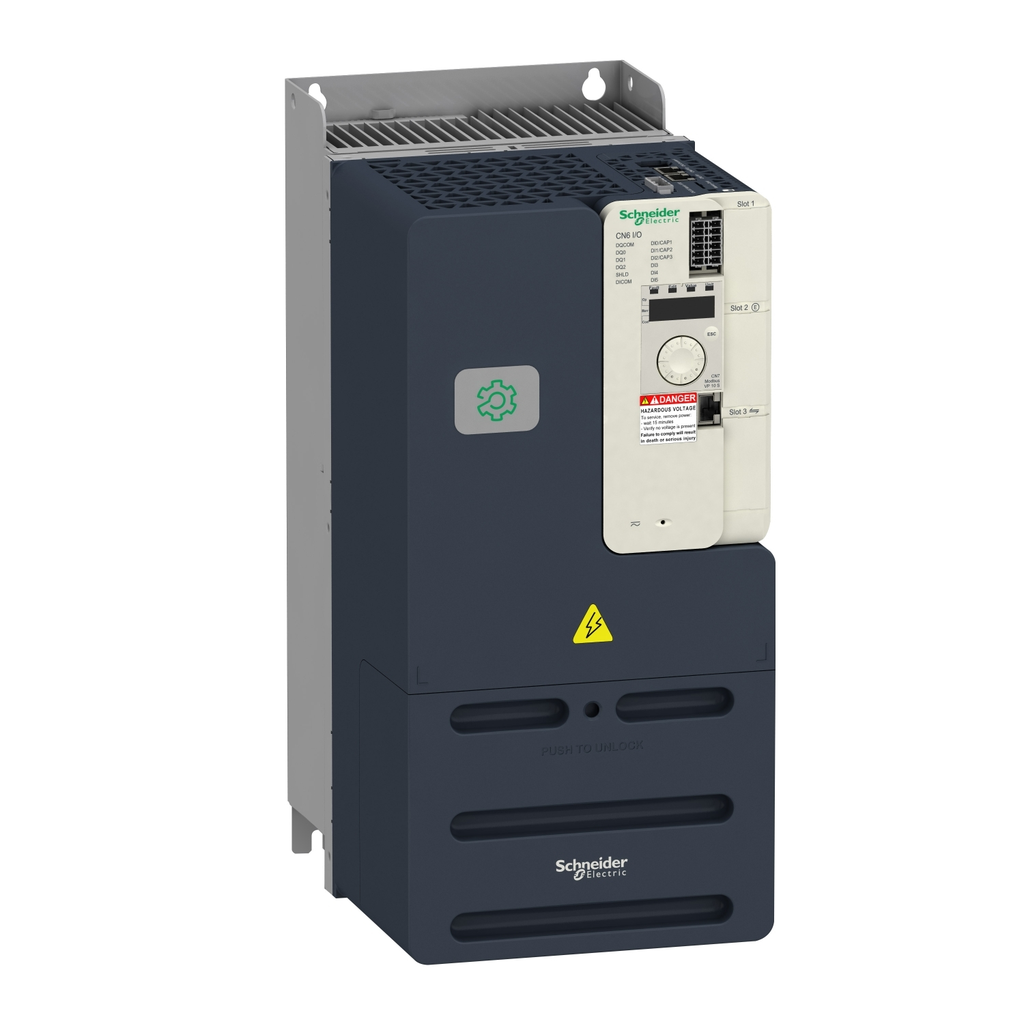

motion servo drive, Lexium 32, 85A, three phase, supply voltage 208 to 480V, 9kW

LXM32 MODULAR 85A RMS PEAK 3PH

SQDLXM32MD85N4 LXM32MD85N4 3606485402413
4087.87 / EA
http://schema.org/OutOfStock
Mayer-DDS-motion servo drive, Lexium 32, 85A, three phase, supply voltage 208 to 480V, 9kW-1
  • Warranty Length: 18 mth
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The AC motion servo drive for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides 2 capture, 2 safety, 4 logic discrete inputs and 3 discrete outputs. Thanks to its compact design this servo drive enables to save on cabinet space and size, reduces the machine footprint and decreases costs. It is a motion servo drive with a rated supply voltage of 200V to 240V, 380V to 480V (three phase), a continuous output current of 32A at 4kHz and a continuous power of 1600W at 400V. It is furnished with terminal for electrical connection and RJ45 connector for Modbus integrated communication interface. CANopen, CANmotion, Ethernet/IP, EtherCAT, Profibus, DeviceNet possible with option card. It is an IP20 rated product. Its dimensions are 180mm (Width) x 240mm (Depth) x 385mm (Height). It weighs 9.6kg. This product is certified by CE, CSA, RoHS, TUV and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. This product is compatible with servo motor BMH. Servo drive range with four servo drive models and two servo motor families plus an intelligent selection of options. It provides you with the drive and motor combination that has exactly the right power, performance and functionality.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communications & Management Attributes
    • Communication Interface : Modbus TCP, with separated communication card, CANopen, with separated communication card, CANmotion, with separated communication card, Ethernet/IP, with separated communication card, EtherCAT, with separated communication card, Profibus, with separated communication card, Profinet, with separated communication card, Analog I/O, with separated communication card, Digital I/O, Integrated
    • Communication : VW3A3616, VW3A3607, VW3A3608, VW3A3618
  • Complementary Attributes
    • Maximum Ambient Air Temperature For Operation : 50.0 °C
    • Maximum Current IRMS : 82.0 A
    • Maximum Operational Altitude : 2000.0 m
    • Minimum Ambient Air Temperature For Operation : 0.0 °C
    • US Rated Supply Voltage : 380...480 V - 15...10 %
    • Maximum In Rated Current : 24.0 A
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Contact Bounce Time : <= 1 ms compliment of STO_A, compliment of STO_B, <= 1 ms compliment of STO_A, compliment of STO_B, 2 µs CAP, 0.25 µs...1.5 ms DI
    • Continuous Power : 1600 W 400 V, 9000 W 230 V, 9000 W 480 V
    • Control Signal Type : pulse train output (PTO) RS422 <500 kHz <100 m, pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (open collector) <10 kHz <1 m, pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (push-pull) <200 kHz <10 m, pulse/direction (P/D), A/B, CW/CCW RS422 <1000 kHz <100 m
    • Electrical Connection : terminal 5 mm², AWG 10 CN1), terminal 5 mm², AWG 10 CN10), terminal 8 mm², AWG 8 CN8)
    • Electromagnetic Compatibility : conducted EMC, class A group 1 EN 55011, conducted EMC, class A group 2 EN 55011, conducted EMC, environment 2 category C3 EN/IEC 61800-3, conducted EMC, category C2 EN/IEC 61800-3, susceptibility to electromagnetic fields, level 3 EN/IEC 61000-4-3, 1.2/50 µs shock waves immunity test, level 3 EN/IEC 61000-4-5, electrical fast transient/burst immunity test, level 4 EN/IEC 61000-4-4, radiated EMC, class A group 2 EN 55011, radiated EMC, category C3 EN/IEC 61800-3
    • Line Current : 3.5 A 88 % 380 V, with external line choke 2 mH, 2.9 A 98 % 480 V, with external line choke 2 mH, 3.6 A 174 % 480 V, without line choke, 19.9 A 145 % 480 V, without line choke
    • Nominal Power : 9 kW 400 V 8 kHz, 5 kW 230 V 4 kHz, 9 kW 480 V 8 kHz
    • Nominal Voltage : 208 V three phase, 400 V three phase, 480 V three phase
    • Protection Type : against reverse polarity inputs signal, against short-circuits outputs signal
    • Response Time : <= 5 ms compliment of STO_A, compliment of STO_B, <= 5 ms compliment of STO_A, compliment of STO_B
    • Safety Function : STO (safe torque off), Integrated, SS1 (safe stop 1), with separated eSM safety card, SS2 (safe stop 2), with separated eSM safety card, SLS (safe limited speed), with separated eSM safety card
    • Safety Level : SIL 3 EN/IEC 61508, PL = e ISO 13849-1
    • Sampling Duration : DI 0.25 ms discrete, 0.25 ms
    • Supply Voltage : 200-240 V three phase, 380-480 V three phase
    • Supply Voltage Description : three phase 230 V, three phase 400 V
    • Tightening Torque : CN1 0.7-0.7 N.m, CN10 0.7-0.7 N.m, CN8 3.8-3.8 N.m
    • Vibration Resistance : 1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-6, 1.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6
    • Carbon Footprint Of The Distribution Phase A4 : 1.3555048595, 1 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 5 kg CO2 eq., 4.9048184438
    • Carbon Footprint Of The Installation Phase A5 : 0.063049246, 0.1 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 97 kg CO2 eq., 96.6620122478
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 13 004 kg CO2 eq., 13004.3745583039
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-12-12
    • Device Type : Motion - drive & motor
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI110605EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Braking Current : 50 mA
    • Compatibility Code : LXM32M
    • Derating Altitude Scale : 90.0 m
    • Derating Altitude Start : 1000.0 m
    • Device Short Name : LXM32M
    • Electrical Isolation : between power and control
    • EMC Filter Compatibility : type 023
    • Environmental Characteristic : classes 3C1 conforming to IEC 60721-3-3
    • Field Weakening : false
    • Format Of The Drive : book
    • Maximum Operational Altitude : 2000.0 m
    • Minimum Ambient Air Temperature For Operation : 0.0 °C
    • Package Weight Lbs : 10.506 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : motion servo drive
    • Range Of Product : Lexium 32
    • Returnability : No
    • Shock Resistance : 15 gn 11 ms EN/IEC 60028-2-27
    • Signalling Function : display of faults 7 segments
    • Status Led : 1 LED (Red) servo drive voltage
    • Supply Frequency : 50/60 Hz - 5...5 %
    • Sustainable Packaging : Yes
    • Switching Frequency : 4 kHz
    • Total Lifecycle Carbon Footprint : 13 107 kg CO2 eq.
    • Type Of Cable : single-strand IEC cable 50-50 °C) copper 90 °C XLPE/EPR
    • Maximum In Rated Current : 24.0 A
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP110705EN
    • Pep Verification Date : 2020-08-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : To provide the phase currents required for the position control of the connected servo motors 100% of the time for 10 years up to 283W.
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP20 conforming to EN/IEC 60529, IP20 conforming to EN/IEC 61800-5-1
    • Operating Altitude : <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions
    • Product Compatibility : servo motor BMH 190 mm, 1, servo motor BMH 190 mm, 2, servo motor BMH 190 mm, 3, servo motor BMH 205 mm, 3
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 13107.3599431011
    • Ambient Air Temperature For Operation : 0-50 °C UL
    • Circularity Profile : ENVEOLI110605EN
    • Environmental Disclosure : ENVPEP110705EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3
    • Pep Code : ENVPEP110705EN
    • Pep Verification Date : 2020-08-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : motion servo drive
    • Range Of Product : Lexium 32
  • Output Attributes
    • Discrete Output Voltage : <= 30 V DC, <= 30 V DC
    • Continuous Output Current : 32 A 4 kHz
    • Discrete Output Logic : positive or negative DO)EN/IEC 61131-2
    • Discrete Output Type : logic DO)24 V DC
    • Output Current 3s Peak : 85 A 480 V 5 s
    • Response Time On Output : 250 µs DO)discrete
  • Surge Protection And Filtering Attributes
    • EMC Filter Compatibility : type 023
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Discrete Input Logic : positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V EN/IEC 61131-2 type 1, positive DI)> 19 V < 9 V EN/IEC 61131-2 type 1, positive or negative DI)< 5 V > 15 V EN/IEC 61131-2 type 1
    • Discrete Input Number : 2 capture, 2 safety, 4 logic
    • Discrete Input Type : capture CAP, logic DI, safety compliment of STO_A, compliment of STO_B
    • Discrete Input Voltage : 24 V DC capture, 24 V DC logic, 24 V DC safety
    • Number Of Inputs Outputs : 4 DI + 2 CI + 3 DO
