motion servo drive, Lexium 32, 30A, three phase, supply voltage 208 to 480V, 3kW, IP20

LXM32A CAN RJ45 30A RMS peak 3

SQDLXM32AD30N4 LXM32AD30N4 3606480076800
2415.89 / EA
http://schema.org/OutOfStock

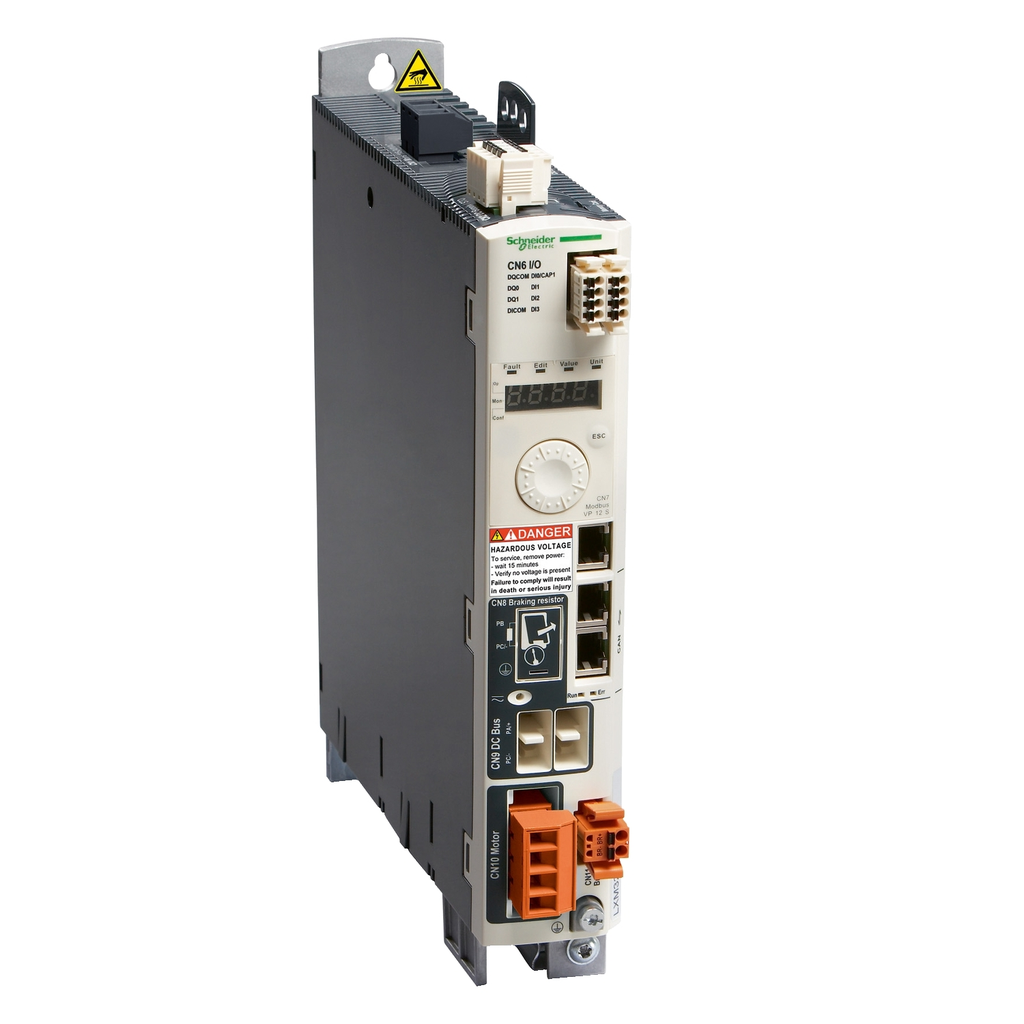

Mayer-DDS-motion servo drive, Lexium 32, 30A, three phase, supply voltage 208 to 480V, 3kW, IP20-1
  • Certifications: CSA, TÜV, UL
  • Depth: 237 mm
  • Height: 270 mm
  • Net Weight: 2.6 kg
  • Number of Phases: 3
  • Standard: EN/IEC 61800-3, EN/IEC 61800-5-1
  • Storage Temperature: -25-70 °C
  • Warranty Length: 18 mth
  • Width: 68 mm
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The AC motion servo drive for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides 1 capture, 2 safety, 4 logic discrete inputs and 2 discrete outputs. Thanks to its compact design this servo drive enables to save on cabinet space and size, reduces the machine footprint and decreases costs. It is a motion servo drive with a rated supply voltage of 200V to 240V, 380V to 480V (three phase), a continuous output current of 10A at 8kHz and a continuous power of 5600W at 400V. It is furnished with terminal for electrical connection and three RJ45 connectors for CANmotion, CANopen, and Modbus, integrated communication interfaces. It is an IP20 rated product. Its dimensions are 68mm (Width) x 237mm (Depth) x 270mm (Height). It weighs 2.6kg. This product is certified by CE, CSA, RoHS, TUV and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. This product is compatible with servo motors BMH and BSH. Servo drive range with four servo drive models and two servo motor families plus an intelligent selection of options. It provides you with the drive and motor combination that has exactly the right power, performance and functionality.
QTY
  • Product Description
  • Specifications
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The AC motion servo drive for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides 1 capture, 2 safety, 4 logic discrete inputs and 2 discrete outputs. Thanks to its compact design this servo drive enables to save on cabinet space and size, reduces the machine footprint and decreases costs. It is a motion servo drive with a rated supply voltage of 200V to 240V, 380V to 480V (three phase), a continuous output current of 10A at 8kHz and a continuous power of 5600W at 400V. It is furnished with terminal for electrical connection and three RJ45 connectors for CANmotion, CANopen, and Modbus, integrated communication interfaces. It is an IP20 rated product. Its dimensions are 68mm (Width) x 237mm (Depth) x 270mm (Height). It weighs 2.6kg. This product is certified by CE, CSA, RoHS, TUV and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. This product is compatible with servo motors BMH and BSH. Servo drive range with four servo drive models and two servo motor families plus an intelligent selection of options. It provides you with the drive and motor combination that has exactly the right power, performance and functionality.
  • Environment
    • Product Certifications : UL || CSA || TÜV
    • Ambient Air Temperature For Operation : 0-50 °C UL
    • Standards : EN/IEC 61800-3 || EN/IEC 61800-5-1
    • Shock Resistance : 15 gn 11 ms EN/IEC 60028-2-27
    • Environmental Characteristic : classes 3C1 IEC 60721-3-3
    • Vibration Resistance : 1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)EN/IEC 60068-2-6
    • Electromagnetic Compatibility : conducted EMC, class A group 1 EN 55011 || conducted EMC, class A group 2 EN 55011 || conducted EMC, environment 2 category C3 EN/IEC 61800-3 || conducted EMC, category C2 EN/IEC 61800-3 || conducted EMC, environments 1 and 2 EN/IEC 61800-3 || electrostatic discharge immunity test, level 3 EN/IEC 61000-4-2 || susceptibility to electromagnetic fields, level 3 EN/IEC 61000-4-3 || 1.2/50 µs shock waves immunity test, level 3 EN/IEC 61000-4-5 || electrical fast transient/burst immunity test, level 4 EN/IEC 61000-4-4 || radiated EMC, class A group 2 EN 55011 || radiated EMC, category C3 EN/IEC 61800-3
    • Pollution Degree : 2 EN/IEC 61800-5-1
    • Ambient Air Temperature For Storage : -25-70 °C
    • Type Of Cooling : integrated fan
    • Ip Degree Of Protection : IP20 conforming to EN/IEC 60529 || IP20 conforming to EN/IEC 61800-5-1
    • Operating Altitude : <= 3280.84 ft (1000 m) without derating || > 3280.84...9842.52 ft (> 1000...3000 m) with conditions
    • Relative Humidity : Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP110705EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI110605EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Product Compatibility : servo motor BMH 100 mm, 3 || servo motor BMH 140 mm, 1 || servo motor BSH 100 mm, 3 || servo motor BSH 100 mm, 4 || servo motor BSH 140 mm, 1
    • Type Of Cable : single-strand IEC cable 50-50 °C) copper 90 °C XLPE/EPR
    • Discrete Input Logic : positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V EN/IEC 61131-2 type 1 || positive DI)> 19 V < 9 V EN/IEC 61131-2 type 1 || positive or negative DI)< 5 V > 15 V EN/IEC 61131-2 type 1
    • Height : 270 mm
    • Electrical Isolation : between power and control
    • Physical Interface : 2-wire RS485 multidrop Modbus
    • Status Led : 1 LED (Red) servo drive voltage || 1 LED error || 1 LED RUN
    • Discrete Input Voltage : 24 V DC capture || 24 V DC logic || 24 V DC safety
    • Transmission Rate : 1 Mbps 4-4 m CANopen, CANmotion || 125 kbps 500-500 m CANopen, CANmotion || 250 kbps 250-250 m CANopen, CANmotion || 50 kbps 1000-1000 m CANopen, CANmotion || 500 kbps 100-100 m CANopen, CANmotion || 9600, 19200, 38400 bps 40-40 m Modbus
    • Response Time : <= 5 ms compliment of STO_A, compliment of STO_B
    • Signalling Function : display of faults 7 segments
    • Marking : CE
    • Net Weight : 2.6 kg
    • Contact Bounce Time : <= 1 ms compliment of STO_A, compliment of STO_B || 2 µs CAP || 0.25 µs...1.5 ms DI
    • Connector Type : RJ45 (labelled CN4 or CN5) CANmotion || RJ45 (labelled CN4 or CN5) CANopen || RJ45 (labelled CN7) Modbus
    • Communication Interface : CANmotion, Integrated || CANopen, Integrated || Modbus, Integrated
    • Communication Service : 1 receive SDO CANmotion || 1 transmit SDO CANmotion || 2 PDOs conforming to DSP 402 CANmotion || 2 SDOs receive CANopen || 2 SDOs send CANopen || 4 configurable mapping PDOs CANopen || CANopen device profile drives and motion control CANopen, CANmotion || display of faults on integrated display terminal Modbus || emergency CANopen, CANmotion || event-triggered, time-triggered, remotely requested,sync (cyclic), sync(acyclic) CANopen || node guarding, heartbeat CANopen || position control mode CANmotion || position control, speed profile, torque profile and homing mode CANopen || sync CANmotion
    • Braking Current : 50 mA
    • Electrical Connection : terminal 3 mm², AWG 12 CN8) || terminal 5 mm², AWG 10 CN1) || terminal 5 mm², AWG 10 CN10)
    • Discrete Output Voltage : <= 30 V DC
    • Switching Frequency : 8 kHz
    • Discrete Output Number : 2
    • Discrete Output Logic : positive or negative DO)EN/IEC 61131-2
    • Discrete Input Type : capture CAP || logic DI || safety compliment of STO_A, compliment of STO_B
    • Method Of Access : slave
    • Control Signal Type : servo motor encoder feedback
    • Safety Function : STO (safe torque off), Integrated
    • Number Of Addresses : 1-127 CANopen, CANmotion || 1-247 Modbus
    • Output Voltage : <= power supply voltage
    • Operating Position : vertical +/- 10 degree
    • Maximum Leakage Current : 30 mA
    • Width : 68 mm
    • Overvoltage Category : III
    • Depth : 237 mm
    • Tightening Torque : CN8 0.5-0.5 N.m || CN1 0.7-0.7 N.m || CN10 0.7-0.7 N.m
    • Protection Type : against reverse polarity inputs signal || against short-circuits outputs signal
    • Discrete Input Number : 1 capture || 2 safety || 4 logic
    • Discrete Output Type : logic DO)24 V DC
    • Response Time On Output : 250 µs DO)discrete
    • Safety Level : SIL 3 EN/IEC 61508 || PL = e ISO 13849-1
    • Sampling Duration : DI 0.25 ms discrete
  • Specifications
    • Network Frequency : 47.5...63 Hz
    • [Us] Rated Supply Voltage : 200...240 V - 15...10 % || 380...480 V - 15...10 %
    • Output Current 3S Peak : 30 A 208 V 5 s || 30 A 480 V 5 s
    • Range Of Product : Lexium 32
    • Format Of The Drive : book
    • Product Or Component Type : motion servo drive
    • Phase : three phase
    • Line Current : 9.2 A 59 % 208 V, with external line choke 1 mH || 11.1 A 77 % 400 V, with external line choke 1 mH || 9.6 A 85 % 480 V, with external line choke 1 mH || 9.8 A 128 % 208 V, without line choke || 8.3 A 148 % 400 V, without line choke || 7 A 152 % 480 V, without line choke
    • Supply Voltage Limits : 170-264 V || 323-528 V
    • Emc Filter : integrated
    • Nominal Power : 2 kW 208 V 8 kHz || 3 kW 400 V 8 kHz || 3 kW 480 V 8 kHz
    • Continuous Output Current : 10 A 8 kHz
    • Continuous Power : 2800 W 208 V || 5600 W 400 V || 5600 W 480 V
    • Device Short Name : LXM32A
    • Supply Frequency : 50/60 Hz - 5...5 %
