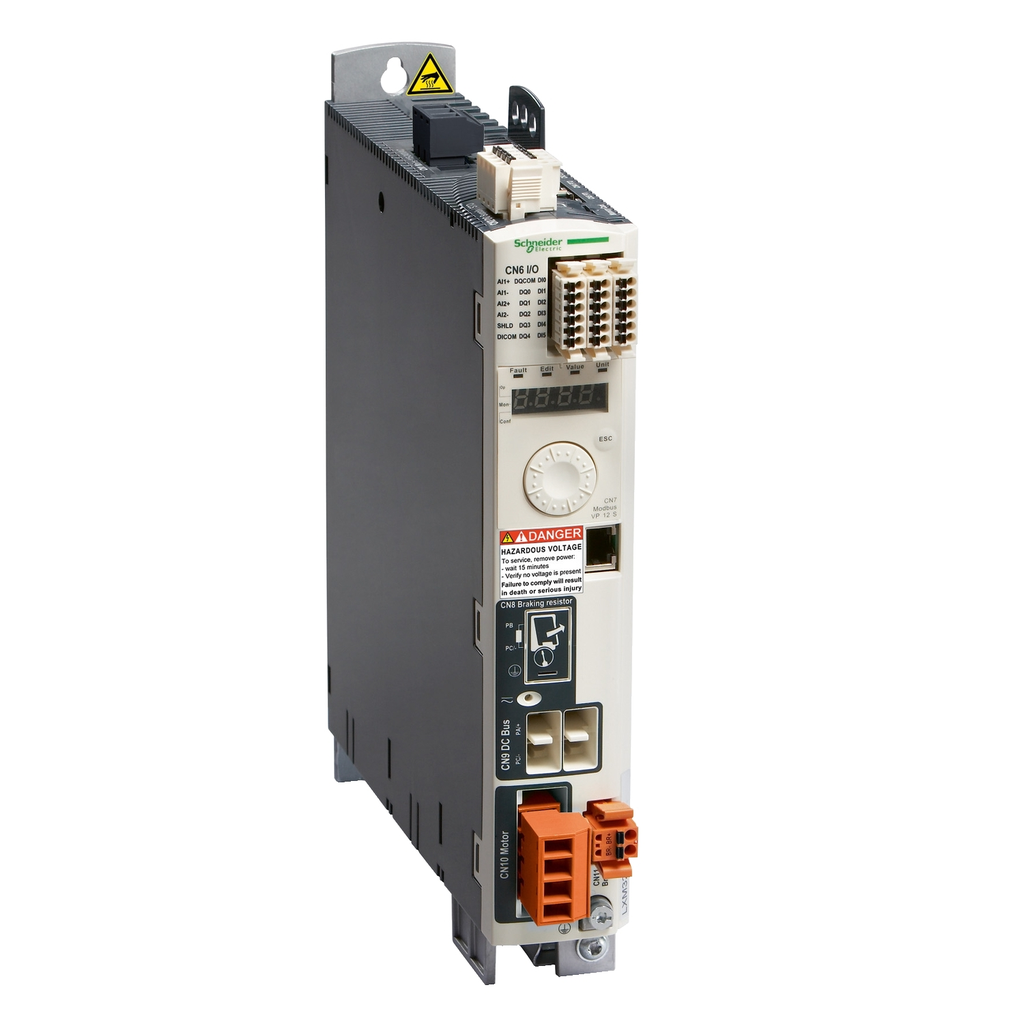

This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The AC motion servo drive for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides

• Output Current 3s Peak
• 15 A 115 V 5 s
• 30 A 230 V 5 s
• Supply Voltage Description
• single phase 230 V
• single phase 115 V
• Communication Interface
• Digital I/O, Integrated
• Analog I/O, Integrated
• Supply Voltage Limits
• 85-132 V
• 170-264 V
• Analogue Input Type
• ANA1+/ANA1-, ANA2+/ANA2- analog input differential +/- 10 V >= 20 Ohm 14 bits
• ANA1+/ANA1-, ANA2+/A
• Continuous Output Current
• 10 A 8 kHz
• Nominal Voltage
• 115 V single phase
• 230 V single phase
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Nominal Power
• 0.8 kW 115 V 8 kHz
• 1.6 kW 230 V 8 kHz
• Response Time
• <= 5 ms compliment of STO_A, compliment of STO_B
• Carbon Footprint Of The Installation Phase A5
• 0.0142769995
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 1 kg CO2 eq.
• 1.1106570605
• Standards
• EN/IEC 61800-3
• EN/IEC 61800-5-1
• Status Led
• 1 LED (Red) servo drive voltage
• Ip Degree Of Protection
• IP20 conforming to EN/IEC 60529
• IP20 conforming to EN/IEC 61800-5-1
• Discrete Input Type
• logic DI
• safety compliment of STO_A, compliment of STO_B
• Electrical Connection
• terminal 3 mm², AWG 12 CN8)
• terminal 5 mm², AWG 10 CN1)
• terminal 5 mm², AWG 10 CN10)
• t
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 22 kg CO2 eq.
• 21.8883425793
• Line Current
• 9.9 A 72 % 115 V, with external line choke 2 mH
• 14.1 A 86 % 23
• Response Time On Output
• 250 µs DO)discrete
• Protection Type
• against reverse polarity inputs signal
• against short-circuits outputs signal
• Sampling Duration
• ANA1+/ANA1-, ANA2+/ANA2- 0.25 ms analog
• DI 0.25 ms discrete
• Discrete Input Voltage
• 24 V DC logic
• 24 V DC safety
• Signalling Function
• display of faults 7 segments
• Vibration Resistance
• 1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-6
• 1.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6
• 1.5 mm peak to peak (f= 3-13 Hz) conf
• Output Current 3s Peak 3
• 15 A 115 V
• 30 A 230 V
• Safety Level
• SIL 3 EN/IEC 61508
• PL = e ISO 13849-1
• Contact Bounce Time
• <= 1 ms compliment of STO_A, compliment of STO_B
• 0.25 µs...1.5 ms DI
• Supply Voltage
• 100-120 V single phase
• 200-240 V single phase
• Persona Type Names
• End User
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Environmental Characteristic
• classes 3C1 conforming to IEC 60721-3-3
• Type Of Cable
• single-strand IEC cable 50-50 °C) copper 90 °C XLPE/EPR
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 1 631 kg CO2 eq.
• 1630.9116607774
• Electromagnetic Compatibility
• conducted EMC, class A group 1 EN 55011
• conducted EMC, class A group 2 EN 55011
• conducted EMC,
• Supply Frequency
• 50/60 Hz - 5...5 %
• Relative Humidity
• Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3
• Persona Type Ids
• EU
• OM
• OM8
• Us Rated Supply Voltage
• 100...120 V - 15...10 %
• 200...240 V - 15...10 %
• Discrete Output Logic
• positive or negative DO)EN/IEC 61131-2
• Carbon Footprint Of The Distribution Phase A4
• 0.3069432763
• 0.3 kg CO2 eq.
• Tightening Torque
• CN8 0.5-0.5 N.m
• CN1 0.7-0.7 N.m
• CN10 0.7-0.7 N.m
• Control Signal Type
• servo motor encoder feedback
• pulse train output (PTO) RS422 <500 kHz <100 m
• pulse/direction (P/D), A/B, CW/CCW 5
• Operating Altitude
• <= 3280.84 ft (1000 m) without derating
• > 3280.84...9842.52 ft (> 1000...3000 m) with conditions
• Safety Function
• STO (safe torque off), Integrated
• Discrete Input Logic
• positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V EN/IEC 61131-2 type 1
• Discrete Output Type
• logic DO)24 V DC
• Shock Resistance
• 15 gn 11 ms EN/IEC 60028-2-27
• Product Compatibility
• servo motor BMH 70 mm, 2
• servo motor BMH 100 mm, 1
• servo motor BSH 70 mm, 2
• Ambient Air Temperature For Operation
• 0-50 °C UL
• Continuous Power
• 800 W 115 V
• 2200 W 230 V
• Product Certifications
• UL
• CSA
• TÜV
• Discrete Output Voltage
• <= 30 V DC
• Discrete Input Number
• 2 safety
• 6 logic

• Complementary Attributes
• Line Rated Current : 10.0 A
• Maximum Ambient Air Temperature For Operation : 50.0 °C
• Maximum Current Irms : 30.0 A
• Maximum Leakage Current : 30 mA
• Maximum Operational Altitude : 2000.0 m
• Minimum Ambient Air Temperature For Operation : 0.0 °C
• Maximum In Rated Current : 10.0 A
• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• ETIM 10 : EC001857
• Html Descr : Motion servo drive - Lexium 32- single phase supply voltage 115/230V - 0.8/1.6kW
• Manufacturer : Schneider Electric
• Device Type : Motion - drive & motor
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 21.8883425793
• Distribution Carbon Footprint : 0.3069432763
• Installation Carbon Footprint : 0.0142769995
• Use Carbon Footprint : 1630.9116607774
• End Of Life Carbon Footprint : 1.1106570605
• Legacy WEEE Scope : Out
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI110605EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1907
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Braking Current : 50 mA
• Compatibility Code : LXM32C
• Derating Altitude Scale : 90.0 m
• Derating Altitude Start : 1000.0 m
• Device Short Name : LXM32C
• Drive Voltage Drop Coefficient : 0.9
• Electrical Isolation : between power and control
• Emc Filter : integrated
• Emc Filter Compatibility : type 021
• Field Weakening : False
• Format Of The Drive : book
• Linearity Error : < +/- 0.1 %
• Marking : CE
• Maximum Operational Altitude : 2000.0 m
• Minimum Ambient Air Temperature For Operation : 0.0 °C
• Network Frequency : 47.5...63 Hz
• Network Number Of Phases : 1
• Operating Position : vertical +/- 10 degree
• Overvoltage Category : III
• Package Weight Lbs : 2.394 kg
• Phase : single phase
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : motion servo drive
• Range Of Product : Lexium 32
• Returnability : No
• Sustainable Packaging : Yes
• Switching Frequency : 8 kHz
• Total Lifecycle Carbon Footprint : 1 654 kg CO2 eq.
• Type Of Cooling : integrated fan
• Maximum In Rated Current : 10.0 A
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 1654.2318806929
• Relationshiptype : Compatible relationship
• General Attributes
• Phase : single phase
• Product Or Component Type : motion servo drive
• Range Of Product : Lexium 32
• Output Attributes
• Discrete Output Number : 5
• Output Voltage : <= power supply voltage
• Surge Protection And Filtering Attributes
• Emc Filter : integrated
• Emc Filter Compatibility : type 021
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=3863317&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 1654.2318806929
• Ambient Air Temperature For Storage : -25-70 °C
• Circularity Profile : ENVEOLI110605EN
• Environmental Disclosure : ENVPEP110705EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Input Attributes
• Analogue Input Number : 2
• Number Of Inputs Outputs : 6 DI + 5 DO + 2 AI
• Specifications
• Country of Origin : Indonesia
• Height : 10.63 in
• Width : 2.68 in
• Depth : 9.33 in
