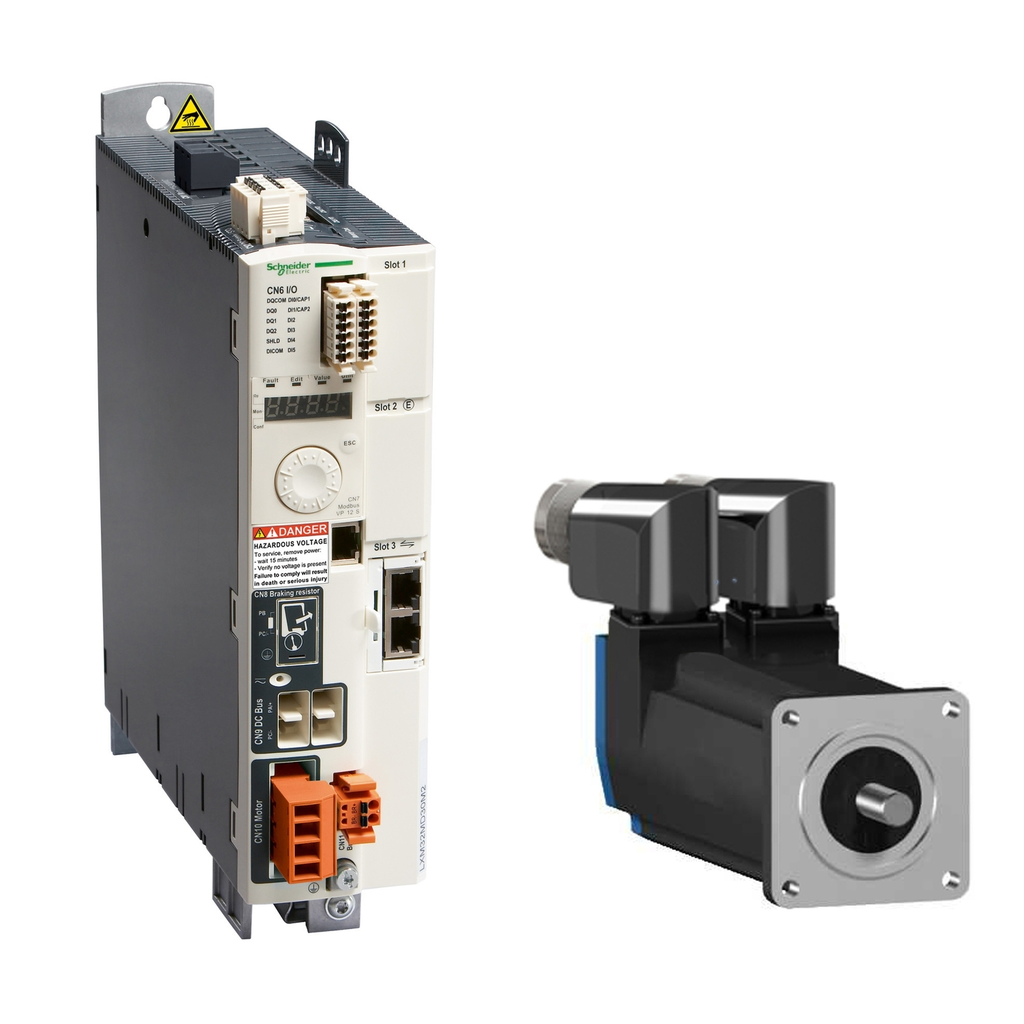

This product is part of the Lexium 32 range, an offer of servo drives from 0.15kW to 7kW. The motion servo drive features integrated EMC filter. It offers 2 capture discrete inputs and 3 discrete outputs. It is a motion servo drive with a rated supply voltage of 100V to 120V, 200V to 240V, a continuous output current of 3A at 8kHz and a continuous power of 300W at 115V. It is furnished with RJ45 connector (labelled CN7) for Modbus. It offers electrical isolation between power and control. It provides Modbus and SERCOS III communication interface. It is an IP20 rated product. Its dimensions are 68mm (width) x 237mm (depth) x 270mm (height). It weighs 1.8kg. This product is certified by CSA. It meets EN/IEC 61800-3 standards. This product is compatible with servo motor BSH (70mm, 1 motor stack). Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Communications & Management Attributes
• Communication Interface : SERCOS III, Integrated
• Complementary Attributes
• Us Rated Supply Voltage : 230 V, 100...120 V - 15...10 %, 200...240 V - 15...10 %
• Line Rated Current : 3.0 A
• Maximum Ambient Air Temperature For Operation : 50.0 °C
• Maximum Current Irms : 9.0 A
• Maximum Leakage Current : 30 mA
• Maximum Operational Altitude : 2000.0 m
• Minimum Ambient Air Temperature For Operation : 0.0 °C
• Maximum In Rated Current : 3.0 A
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
• Contact Bounce Time : <= 1 ms compliment of STO_A, compliment of STO_B, <= 1 ms compliment of STO_A, compliment of STO_B<= 1 ms compliment of STO_A, compliment of STO_B, <= 1 ms compliment of STO_A, compliment of STO_B
• Continuous Power : 400 W 115 V, 900 W 230 V
• Line Current : 5.2 A 90 % 115 V, with external line choke 2 mH, 6.3 A 107 % 230 V, with external line choke 2 mH, 5.4 A 159 % 115 V, without line choke, 4.5 A 166 % 230 V, without line choke
• Nominal Power : 0.3 kW 115 V 8 kHz, 0.5 kW 230 V 8 kHz
• Nominal Voltage : 115 V single phase, 230 V single phase
• Response Time : <= 5 ms compliment of STO_A, compliment of STO_B, <= 5 ms compliment of STO_A, compliment of STO_B<= 5 ms compliment of STO_A, compliment of STO_B, <= 5 ms compliment of STO_A, compliment of STO_B
• Supply Voltage : 100-120 V single phase, 200-240 V single phase
• Supply Voltage Limits : 85-132 V, 170-264 V
• Carbon Footprint Of The Distribution Phase A4 : 0.3057820785, 0.3 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 1.1064553314, 1 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.0142229881
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 22 kg CO2 eq., 21.8055367435
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 773 kg CO2 eq., 772.5371024735
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : N
• Stocking Flag : Y
• Stock Policy : 2
• Device Type : Motion - drive & motor
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 15 year(s)
• Weee Applicability : Finished product
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI110605EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1907
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Product Kit Identifier : N
• Braking Current : 50 mA
• Compatibility Code : LXM32S
• Derating Altitude Scale : 90.0 m
• Derating Altitude Start : 1000.0 m
• Device Short Name : LXM32S
• Drive Voltage Drop Coefficient : 0.9
• Electrical Connection : terminal 3 mm², AWG 12 CN8)
• Electrical Isolation : between power and control
• Electromagnetic Compatibility : conducted EMC EN 55011 class A group 1
• Emc Filter : integrated
• Emc Filter Compatibility : type 020
• Environmental Characteristic : classes 3C1 conforming to IEC 60721-3-3
• Field Weakening : false
• Format Of The Drive : book
• Marking : CE
• Maximum Operational Altitude : 2000.0 m
• Minimum Ambient Air Temperature For Operation : 0.0 °C
• Network Frequency : 47.5...63 Hz
• Network Number Of Phases : 1
• Operating Position : vertical +/- 10 degree
• Overvoltage Category : III
• Phase : single phase
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : motion servo drive
• Range Of Product : Lexium 32
• Returnability : No
• Safety Function : STO (safe torque off), Integrated
• Safety Level : SIL 3 EN/IEC 61508
• Sampling Duration : 0.25 ms
• Shock Resistance : 15 gn 11 ms EN/IEC 60028-2-27
• Signalling Function : display of faults 7 segments
• Software Version : EIME v5.8.1
• Status Led : 1 LED (Red) servo drive voltage
• Supply Frequency : 50/60 Hz - 5...5 %
• Supply Voltage Description : single phase 115 V
• Sustainable Packaging : Yes
• Switching Frequency : 8 kHz
• Tightening Torque : CN8 0.5-0.5 N.m
• Total Lifecycle Carbon Footprint : 796 kg CO2 eq.
• Type Of Cable : single-strand IEC cable 50-50 °C) copper 90 °C XLPE/EPR
• Type Of Cooling : natural convection
• Vibration Resistance : 1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-6
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Maximum In Rated Current : 3.0 A
• Warranty In Months : 18
• Pep Code : ENVPEP110705EN
• Database Version : 2016-11
• Pep Verification Date : 2020-08-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : To provide the phase currents required for the position control of the connected servo motors 100% of the time for 10 years up to 283W.
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime, In Y : 10
• Energy Consumption On Product Lifetime, In Kwh : 1576.8
• Energy Model - Manufacturing [A1-a3] : Energy model used: Indonesia
• Energy Model - Installation [A5] : Electricity mix; AC; < 1kV; EU-27
• Energy Model - Use [B6] : Electricity mix; AC; < 1kV; EU-27
• Energy Model - End Of Life [C1-c4] : Electricity mix; AC; < 1kV; EU-27
• Offer Owner Code : 190786
• Pn : 1
• Height Nominal : 270 mm
• Width Nominal : 68 mm
• Certificate Agency : CSA
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] : 1962
• Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 1962
• Environment Attributes Main
• Ambient Air Temperature For Storage : -25-70 °C, -25-70 °C
• Operating Altitude : <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 795.7690996151
• Ambient Air Temperature For Operation : 0-50 °C UL
• Circularity Profile : ENVEOLI110605EN
• Environmental Disclosure : ENVPEP110705EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP20 conforming to EN/IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Product Compatibility : servo motor BMH 70 mm, 1
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3
• Pep Code : ENVPEP110705EN
• Pep Verification Date : 2020-08-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Phase : single phase
• Product Or Component Type : motion servo drive
• Range Of Product : Lexium 32
• ETIM
• ETIM 8 : EC001857
• ETIM 9 : EC001857
• Output Attributes
• Discrete Output Voltage : <= 30 V DC, <= 30 V DC<= 30 V DC, <= 30 V DC
• Output Current 3s Peak : 9.0 A, 6 A 115 V 5 s, 9 A 230 V 5 s
• Output Voltage : <= power supply voltage, <= power supply voltage
• Continuous Output Current : 3 A 8 kHz
• Discrete Output Logic : positive or negative DO)EN/IEC 61131-2
• Discrete Output Number : 3
• Discrete Output Type : logic DO)24 V DC
• Response Time On Output : 250 µs DO)discrete
• Surge Protection And Filtering Attributes
• Emc Filter : integrated
• Emc Filter Compatibility : type 020
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Input Attributes
• Discrete Input Logic : positive compliment of STO_A, compliment of STO_B) 15 V EN/IEC 61131-2 type 1
• Discrete Input Number : 2 capture
• Discrete Input Type : capture CAP
• Discrete Input Voltage : 24 V DC capture
• Number Of Inputs Outputs : 4 DI + 2 CI + 3 DO
• Specifications
• Country of Origin : Brazil, Germany, France, Indonesia, Mexico
• Depth : 237 mm
