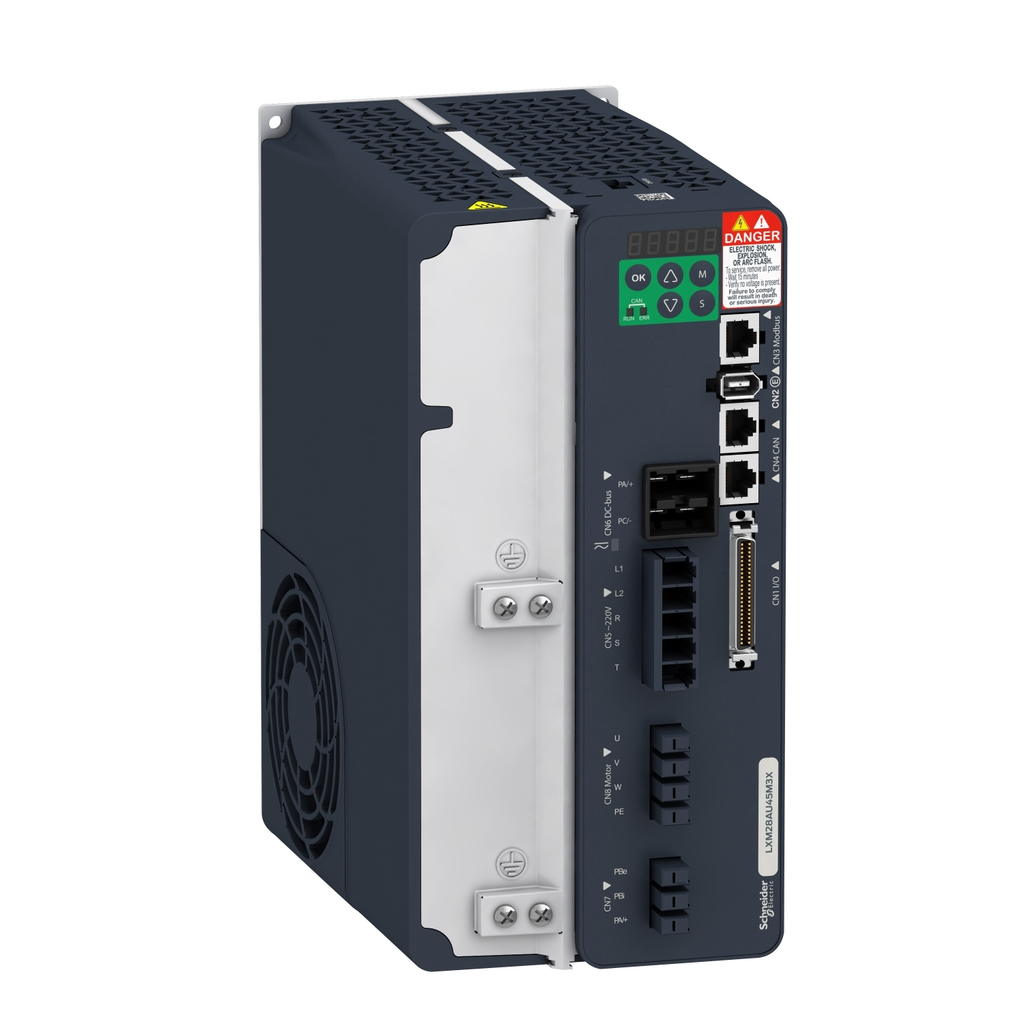

This product is part of the Lexium 28 range, an offer of servo drives from 0.05kW to 4.5kW. The motion servo drive features EMC filter, integrated CANopen, CAN motion interface 7-segment display with 5 buttons. It is a motion servo drive with a rated sup

• Output Current 3s Peak
• 60 A 220 V
• Connector Type
• RJ45 CN4)CANopen, CANmotion
• Communication Interface
• CANopen, Integrated
• CANmotion, Integrated
• Supply Voltage Limits
• 200-255 V three phase
• Analogue Input Type
• V_REF voltage analog input - 10...10 V 10 kOhm 14 bits
• V_REF voltage analog input - 10...
• Continuous Output Current
• 19.8 A 8 kHz
• Nominal Voltage
• 220 V three phase
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Nominal Power
• 3 kW 220 V 8 kHz
• Carbon Footprint Of The Installation Phase A5
• 0 kg CO2 eq.
• 0.0484001764
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 2.2842884608
• 2 kg CO2 eq.
• Status Led
• 1 LED (Red) charge
• 1 LED (Green) RUN
• 1 LED (Red) error
• Electrical Connection
• spring terminal 6 mm², AWG 10 L1-L2)
• spring terminal 6 mm², AWG 10 R, S, T)
• spring terminal 6 mm², AWG 1
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 85 kg CO2 eq.
• 84.9872796689
• Line Current
• 11.8 A 155.8 % 220 V, three phase
• Marking
• CE
• cULus
• Discrete Output Number
• 5 logic output CN1)12...24 V DC
• 1 pulse train output (PTO) CN1)
• 1 pulse train output (PTO) CN1
• Protection Type
• against reverse polarity inputs signal
• against short-circuits outputs signal
• overcurrent motor
• overvoltage motor
• undervoltage motor
• undervolt
• Accessories
• VW3CANCARR03
• VW3CANCARR1
• VW3M3805R010
• VW3M3805R030
• TSXCANCA50
• TSXCANCA100
• TSXCANCA300
• TSXCANCB50
• Discrete Input Voltage
• 24 V DC logic
• Signalling Function
• servo status and fault codes five 7-segment display units
• Vibration Resistance
• 3M4 3 mm 9-200 Hz)IEC 60721-3-3
• Output Current 3s Peak 3
• 60 A 220 V
• Safety Level
• SIL 2 IEC 61800-5-2 2007
• SIL 2 IEC 61508-1 2010
• PL d/category 3 ISO 13849-1 2008
• SIL 2 ISO 1
• Supply Voltage
• 200-240 V three phase
• Persona Type Names
• End User
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Type Of Cable
• shielded motor cable 0-55 °C) copper
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 6 613 kg CO2 eq.
• 6612.5170566477
• Electromagnetic Compatibility
• conducted emission - test level: level 3 category C3 conforming to IEC 61800-3
• conducted emissio
• Supply Frequency
• 50/60 Hz - 5...5 %
• Relative Humidity
• 5-95 % without condensation
• Persona Type Ids
• EU
• OM
• OM8
• Number Of Addresses
• 1-127 CANopen, CANmotion
• Us Rated Supply Voltage
• 200...240 V - 10...15 %)three phase
• Discrete Output Logic
• positive or negative CN1)
• Carbon Footprint Of The Distribution Phase A4
• 0.6446717139
• 0.6 kg CO2 eq.
• Control Signal Type
• servo motor encoder feedback CN2
• Operating Altitude
• <= 3280.84 ft (1000 m) without derating
• > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m
• Safety Function
• STO (safe torque off), Integrated
• Discrete Input Logic
• positive or negative CN1)
• Shock Resistance
• 10 gn, type I IEC 60721-3-3
• Product Compatibility
• servo motor BCH2 180 mm, 2 3000 W
• Transmission Rate
• 250 kbit/s 100-250 m CANopen, CANmotion
• 500 kbit/s 4-100 m CANopen, CANmotion
• 1 Mbit/s 4-4 m CANop
• Continuous Power
• 3000 W 220 V
• Product Certifications
• CE
• cULus
• Discrete Output Voltage
• 12...24 V DC
• Discrete Input Number
• 8 programmable CN1)
• 1 pulse train input (PTI) CN1)
• 2 fast capture CN1)
• 1 safety function STO CN9)
• 1 safety funct

• Conformance Attributes
• Standards : IEC 61800-5-1
• Complementary Attributes
• Line Rated Current : 19.8 A
• Maximum Ambient Air Temperature For Operation : 55.0 °C
• Maximum Current Irms : 60.0 A
• Maximum Leakage Current : 1.6 mA
• Maximum Operational Altitude : 3000.0 m
• Minimum Ambient Air Temperature For Operation : 0.0 °C
• Minimum Operational Altitude : 0.0 m
• Maximum In Rated Current : 19.8 A
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 4/5/2025
• Device Type : Motion - drive & motor
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 84.98727967
• Distribution Carbon Footprint : 0.644671714
• Installation Carbon Footprint : 0.048400176
• Use Carbon Footprint : 6612.517057
• End Of Life Carbon Footprint : 2.284288461
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1409001EN
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1906
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Tier Id : 4
• Tier : 4
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Derating Altitude Start : 1000.0 m
• Derating Temperature Start : 40.0 °C
• Device Short Name : LXM28A
• Drive Voltage Drop Coefficient : 1
• Electrical Isolation : between power and control
• Emc Filter : without EMC filter
• Emc Filter Compatibility : type 022
• Field Weakening : FALSE
• Format Of The Drive : compact housing
• Maximum Operational Altitude : 3000.0 m
• Method Of Access : slave
• Minimum Ambient Air Temperature For Operation : 0.0 °C
• Minimum Operational Altitude : 0.0 m
• Network Frequency : 47.5...63 Hz
• Network Number Of Phases : 3
• Operating Position : vertical
• Overvoltage Category : III
• Package Weight Lbs : 4996.67 g
• Phase : three phase
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : motion servo drive
• Range Of Product : Lexium 28
• Returnability : No
• Supply Voltage Description : three phase 220 V AC 50...60 Hz
• Sustainable Packaging : No
• Switching Frequency : 8 kHz
• Total Lifecycle Carbon Footprint : 6 700 kg CO2 eq.
• Type Of Cooling : integrated fan
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Maximum In Rated Current : 19.8 A
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 6700.481697
• Relationshiptype : Compatible relationship
• General Attributes
• Phase : three phase
• Product Or Component Type : motion servo drive
• Range Of Product : Lexium 28
• Output Attributes
• Output Voltage : <= power supply voltage
• Surge Protection And Filtering Attributes
• Emc Filter : without EMC filter
• Emc Filter Compatibility : type 022
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=380826358&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 6700.481697
• Ambient Air Temperature For Operation : 0-55 °C
• Ambient Air Temperature For Storage : -25-65 °C
• Circularity Profile : ENVEOLI1409001EN
• Environmental Disclosure : ENVPEP1409001EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Ip Degree Of Protection : IP20
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Input Attributes
• Analogue Input Number : 2
• Specifications
• Country of Origin : China
• Height : 9.21 in
• Width : 4.57 in
• Depth : 7.32 in
