SQUARE D

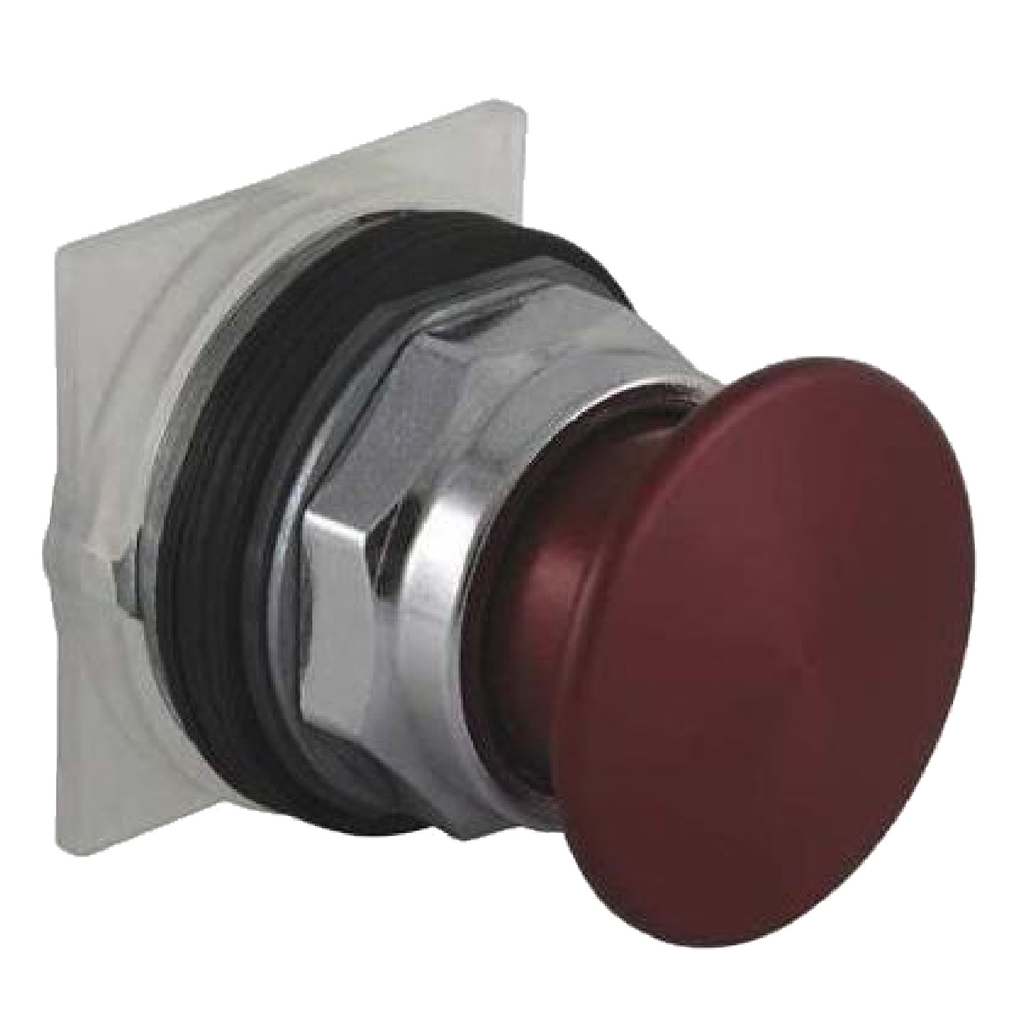

Push-button head, Harmony 9001K, metal, metal mushroom 40mm, red, 30mm, spring return

MOMENTARY PUSH BUTTON

SQD9001KR24RM 9001KR24RM 785901688099
107.89 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Push-button head, Harmony 9001K, metal, metal mushroom 40mm, red, 30mm, spring return-1
  • Bezel Material: Metal
  • Warranty Length: 18 mth
This 40mm mushroom shaped push-button headis ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily combined with Harmony range of contact blocks to perform a large variety of control functions High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 6, 12 and 13)
QTY
  • Product Description
  • Features
  • Specifications
This 40mm mushroom shaped push-button headis ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily combined with Harmony range of contact blocks to perform a large variety of control functions High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 6, 12 and 13)
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Cad Overall Depth : 70 mm
    • Cad Overall Height : 45 mm
    • Cad Overall Width : 45.5 mm
  • Conformance Attributes
    • Standards : IEC 60947-5-1, IEC 60947-1, IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508, CSA C22.2 No 14
  • Important Information Attributes
    • Operator Profile : red mushroom Ø 40 mm, unmarked, red mushroom Ø 40 mm, unmarked, red mushroom Ø 40 mm, unmarked
    • Overvoltage Category : class II conforming to IEC 61140, class II conforming to IEC 61140
    • Shock Resistance : 50 gn IEC 60068-2-27, 50 gn IEC 60068-2-27
    • Vibration Resistance : 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Bezel Material : metal
    • Compatibility Code : 9001K
    • Device Short Name : 9001K
    • Head Material : metal
    • Mounting Diameter : 30 mm
    • Package Weight Lbs : 136.078 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for push-button
    • Range Of Product : Harmony 9001K
    • Returnability : No
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : Yes
    • Type Of Operator : spring return
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Pep Code : ENVPEP2503027EN
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP66 IEC 60529, IP66 IEC 60529
    • Nema Degree Of Protection : NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • General Attributes
    • Product Or Component Type : head for push-button
    • Range Of Product : Harmony 9001K
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Overview Attributes
    • Device Presentation : basic element
