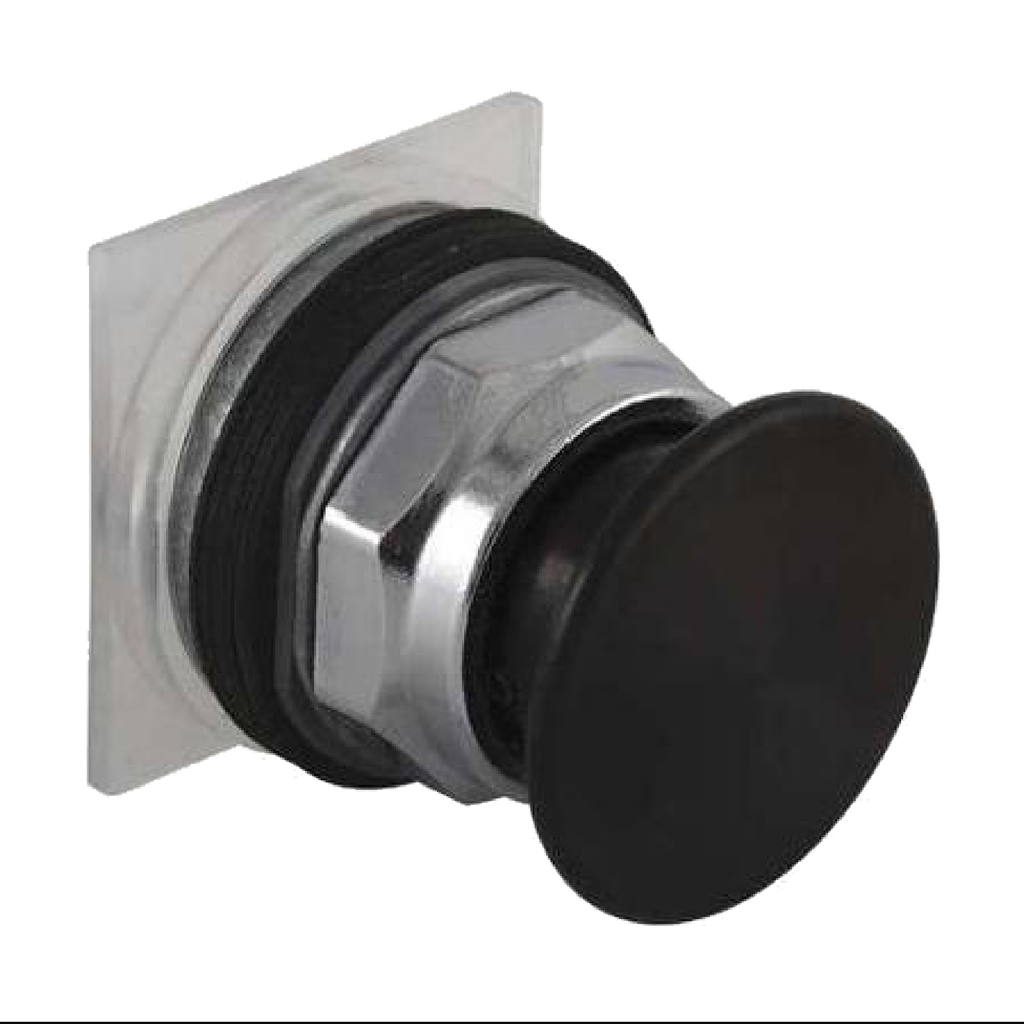

Momentary Push Button

Momentary Push Button

SQD9001KR24BM 9001KR24BM 785901594864
84.69 / EACH
  • Bezel Material: Chromium Plated Metal
  • Certifications: NEMA, UL 508
  • Net Weight: 0.141 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
30 mm heavy duty chromium plated metal push buttons, selector switches, pilot lights, and specialty operators
  • Specifications
  • Product Or Component Type : mushroom head push-button
  • Overvoltage Category : class II IEC 61140
  • Product Certifications : NEMA || UL 508
  • Net Weight : 0.141 kg
  • Operator Profile : black mushroom Ø 40 mm, unmarked
  • Product Compatibility : contact block 9001KA..
  • Ambient Air Temperature For Storage : -40-70 °C
  • Operator Additional Information : screw-in with set screw security
  • Type Of Operator : spring return
  • Standards : EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14
  • Warranty : 18 months
  • Cad Overall Width : 45.5 mm
  • Ambient Air Temperature For Operation : -25-70 °C
  • Compatibility Code : 9001K
  • Vibration Resistance : 7 gn 2-500 Hz)IEC 60068-2-6
  • Device Short Name : 9001K
  • Cad Overall Depth : 70 mm
  • Mechanical Durability : 5000000 cycles
  • Operating Position : any position
  • Cad Overall Height : 45 mm
  • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
  • Shock Resistance : 50 gn IEC 60068-2-27
  • Mounting Diameter : 30 mm
  • Shape Of Signaling Unit Head : round
  • Head Material : metal
  • Contacts Type And Composition : without contact block
  • Range Of Product : Harmony 9001K
  • Bezel Material : chromium plated metal
  • Ip Degree Of Protection : IP66 IEC 60529
  • Operator Position Information : 2 positions
  • Device Presentation : basic element
  • Protective Treatment : TC
