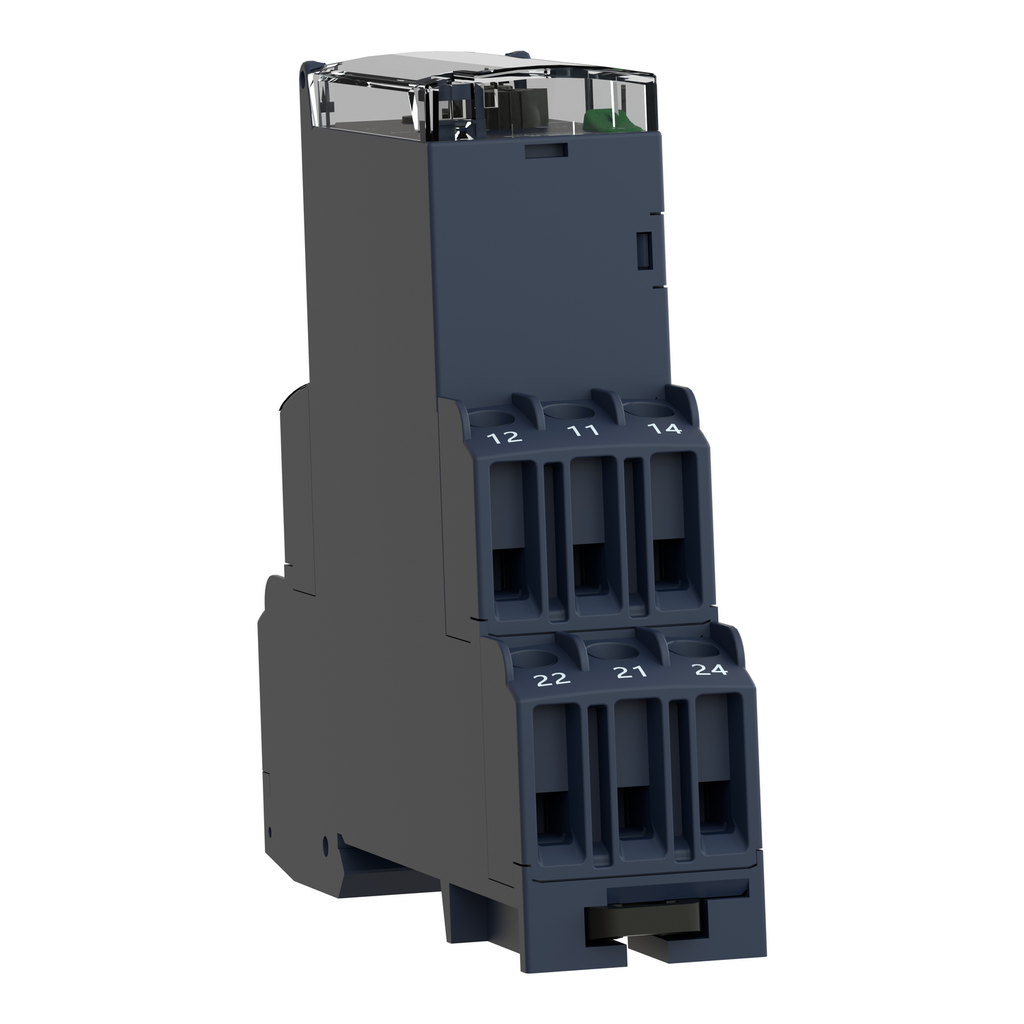

This Harmony RM22TA asymmetry control relay allows monitoring of power supply circuits in 3-phase networks. This modular 3-phase control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

• Insulation Resistance
• > 100 MOhm 500 V DC IEC 60255-27
• US Rated Supply Voltage
• AC/DC
• , self-powered
• Connections Terminals
• screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end
• screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
• screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end
• screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
• Overvoltage Category
• III conforming to IEC 60664-1
• III conforming to UL 508
• Mounting Support
• 35 mm DIN rail conforming to IEC 60715
• Supply Voltage Limits
• 160-288 V AC
• IP Degree Of Protection
• IP20 IEC 60529 terminals)
• IP40 IEC 60529 housing)
• IP50 IEC 60529 front panel)
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0 kg CO2 eq.
• 0.0005039074
• Voltage Range
• 200...240 V phase to phase
• Switching Threshold Drift
• <= 0.05 % per degree centigrade depending permissible ambient air temperature
• <= 1 % within the supply voltage range
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.0586883455
• 0.1 kg CO2 eq.
• Voltage Detection Threshold
• < 100 V AC
• Status Led
• LED (Yellow) relay ON
• LED (Green) power ON
• Maximum Switching Voltage
• 250 V AC
• Dielectric Test Voltage
• 2.5 kV AC 50 Hz, 1 min IEC 60255-27
• Maximum Measuring Cycle
• 150 ms measurement cycle as true rms value
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 2 kg CO2 eq.
• 2.0760090909
• Maximum Switching Current
• 8 A AC
• Time Delay Drift
• <= 0.05 % per degree centigrade depending permissible ambient air temperature
• <= 1 % within the supply voltage range
• Time Delay Type
• adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault
• Measurement Range
• 200...240 V voltage AC
• Reset Time
• 1500 ms at maximum voltage
• Vibration Resistance
• 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6
• 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6
• 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6
• 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Charge Point Operator
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• System Integrator
• IT Channel Partner
• Measurement Error
• < 1 % over the whole range with voltage variation
• < 0.05 %/°C with temperature variation
• Power Consumption In VA
• 10-10 VA 240 V AC 60 Hz
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 69 kg CO2 eq.
• 68.6709333333
• Electromagnetic Compatibility
• immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1
• immunity for industrial environments conforming to IEC 61000-6-2
• emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3
• emission standard for industrial environments conforming to IEC 61000-6-4
• electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2
• electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2
• radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3
• electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4
• electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4
• surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5
• surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5
• conducted and radiated emissions class B group 1 conforming to CISPR 11
• conducted and radiated emissions class B conforming to CISPR 22
• Supply Frequency
• 50...60 Hz +/- 10 %
• Hysteresis
• 2-2 % fixed selectable
• Relative Humidity
• 93-97 % 25-55 °C IEC 60068-2-30
• Persona Type Ids
• BM9
• EU
• LC
• OM
• OM8
• PB
• SC
• SI
• VR
• Relay Monitored Parameters
• asymmetry
• phase failure detection
• phase sequence
• Carbon Footprint Of The Distribution Phase A4
• 0.0130308364
• 0 kg CO2 eq.
• Tightening Torque
• 0.6-1 N.m IEC 60947-1
• Minimum Switching Current
• 10 mA 5 V DC
• Repeat Accuracy
• +/- 0.5 % input and measurement circuit
• +/- 3 % time delay
• Utilisation Category
• AC-15 IEC 60947-5-1
• DC-13 IEC 60947-5-1
• AC-1 IEC 60947-4-1
• DC-1 IEC 60947-4-1
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Shock Resistance
• 15 gn 11 ms) not in operation IEC 60068-2-27
• 5 gn 11 ms) in operation IEC 60068-2-27
• Ambient Air Temperature For Operation
• -20-50 °C 60 Hz
• -20-60 °C 50 Hz AC/DC

• Assets
• CAD : https://download.schneider-electric.com/files?p_Doc_Ref=rm22ta31-3d
• Complementary Attributes
• Control Circuit Voltage Limits : - 20 % + 20 % Un
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-07
• Manufacturing Carbon Footprint : 2.0760090909
• Distribution Carbon Footprint : 0.0130308364
• Installation Carbon Footprint : 0.0005039074
• Use Carbon Footprint : 68.6709333333
• End Of Life Carbon Footprint : 0.0586883455
• Legacy WEEE Scope : Out
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1504008EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1918
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Adjustment Of Asymmetry Threshold : 5...15 % of Un selected
• Compatibility Code : RM22
• Housing Material : self-extinguishing plastic
• Immunity To Microbreaks : 10 ms
• Package Weight Lbs : 101.0 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : 3-phase control relay
• Range Of Product : Harmony Control Relays
• Relay Name : RM22TA
• Response Time : <= 300 ms
• Returnability : Yes
• Setting Accuracy Of The Switching Threshold : +/- 10 % of the full scale
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 71 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 70.8191655134
• Relationship Type : cross-selling relationship
• Pep Code : ENVPEP1504008EN
• Pep Verification Date : 2019-05-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 101
• Functional Unit Description : To switch ON/OFF electrical contacts when the abnormal operating conditions is detected during 10 years and a 100% use rate.
• Functional Unit Quantity : 1
• Functional Unit Unit : unité (unit)
• Reference Lifetime In Y : 10
• Energy Consumption On Product Lifetime In Kwh : 140.16
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• Energy Model Manufacturing A1 A3 : Energy model used: Indonesia
• Energy Model Installation A5 : Electricity mix; AC; < 1kV; EU-27
• Energy Model Use B6 : Electricity mix; AC; < 1kV; EU-27
• Energy Model End Of Life C1 C4 : Electricity mix; AC; < 1kV; EU-27
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0006585102
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0006525426
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000005
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0000059667
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000003
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 800.7282362567
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 20.9216909091
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.1830762727
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.0065327718
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 779.4666666667
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.1502696364
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.0000294345
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0000027668
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0.0000266677
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Hazardous Waste Disposed Of Kg Total Life Cycle : 2.8161285581
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 2.5829372727
• Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Hazardous Waste Disposed Of Kg Installation A5 : 0.0000000247
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.0358005333
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.1973907273
• Materials For Energy Recovery Kg Total Life Cycle : 0.015443828
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0.0000000098
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0.0154438182
• Materials For Recycling Kg Total Life Cycle : 0.0389588218
• Materials For Recycling Kg Manufacturing A1 A3 : 0.0072393127
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0.0092635364
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0.0224559727
• Net Use Of Fresh Water M3 Total Life Cycle : 249.0036683144
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.0116361182
• Net Use Of Fresh Water M3 Distribution A4 : 0.0000011663
• Net Use Of Fresh Water M3 Installation A5 : 0.0000000551
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 248.992
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0000309749
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 256.6282598483
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.5952205455
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0004630024
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.000068399
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 256.032
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0005079015
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000046959
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000002203
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0000044735
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.000000002
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.1713629705
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0003641417
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000003298
• Radioactive Waste Disposed Of Kg Installation A5 : 0.0000000135
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.1709973333
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0000011522
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1224.3054043282
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 26.8109090909
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.1840036364
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0065706009
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1197.12
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.183921
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 1399.4651733391
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 27.5702454545
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.1842515455
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.0065808845
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 1371.52
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.1840954545
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 175.1596960623
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.7592629091
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0002455494
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0000102203
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 174.4
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0001773835
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1.6944127273
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.6944127273
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1222.6113588736
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 25.1168636364
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.1840036364
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0065706009
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1197.12
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.183921
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.1835078182
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.1835078182
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 174.9761790623
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.5757459091
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0002455494
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0000102203
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 174.4
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0001773835
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0.0005927874
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.0005927874
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Air Pollution M3 Total Life Cycle : 3202.3103769121
• Air Pollution M3 Manufacturing A1 A3 : 244.7689090909
• Air Pollution M3 Distribution A4 : 0.5543430909
• Air Pollution M3 Installation A5 : 0.0200962455
• Air Pollution M3 Operational Energy Use B6 : 2955.6266666667
• Air Pollution M3 End Of Life C1 C4 : 1.3403618182
• Water Pollution M3 Total Life Cycle : 3061.3555784545
• Water Pollution M3 Manufacturing A1 A3 : 222.8794545455
• Water Pollution M3 Distribution A4 : 2.1429445455
• Water Pollution M3 Installation A5 : 0.0764202727
• Water Pollution M3 Operational Energy Use B6 : 2833.6
• Water Pollution M3 End Of Life C1 C4 : 2.6567590909
• Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0.2920519043
• Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.0162440973
• Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0.0195536778
• Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.0055053264
• Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.0000594991
• Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.0000020996
• Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 0.2864426667
• Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.0000423126
• Global Warming Kg Equivalent Co2 Total Life Cycle : 70.8191655134
• Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 2.0760090909
• Global Warming Kg Equivalent Co2 Distribution A4 : 0.0130308364
• Global Warming Kg Equivalent Co2 Installation A5 : 0.0005039074
• Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 68.6709333333
• Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 0.0586883455
• Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.0004963048
• Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.0000042459
• Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.0000001569
• Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0.0157397333
• Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.0000036564
• Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.00222503
• Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.0000137039
• Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.0000005103
• Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.0172949333
• Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.0000195003
• General Attributes
• Product Or Component Type : 3-phase control relay
• Range Of Product : Harmony Control Relays
• Output Attributes
• Output Contacts : 2 C/O
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=421889568&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 70.8191655134
• Circularity Profile : ENVEOLI1504008EN
• Environmental Disclosure : ENVPEP1504008EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1504008EN
• Pep Verification Date : 2019-05-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Specifications
• Country of Origin : Indonesia
