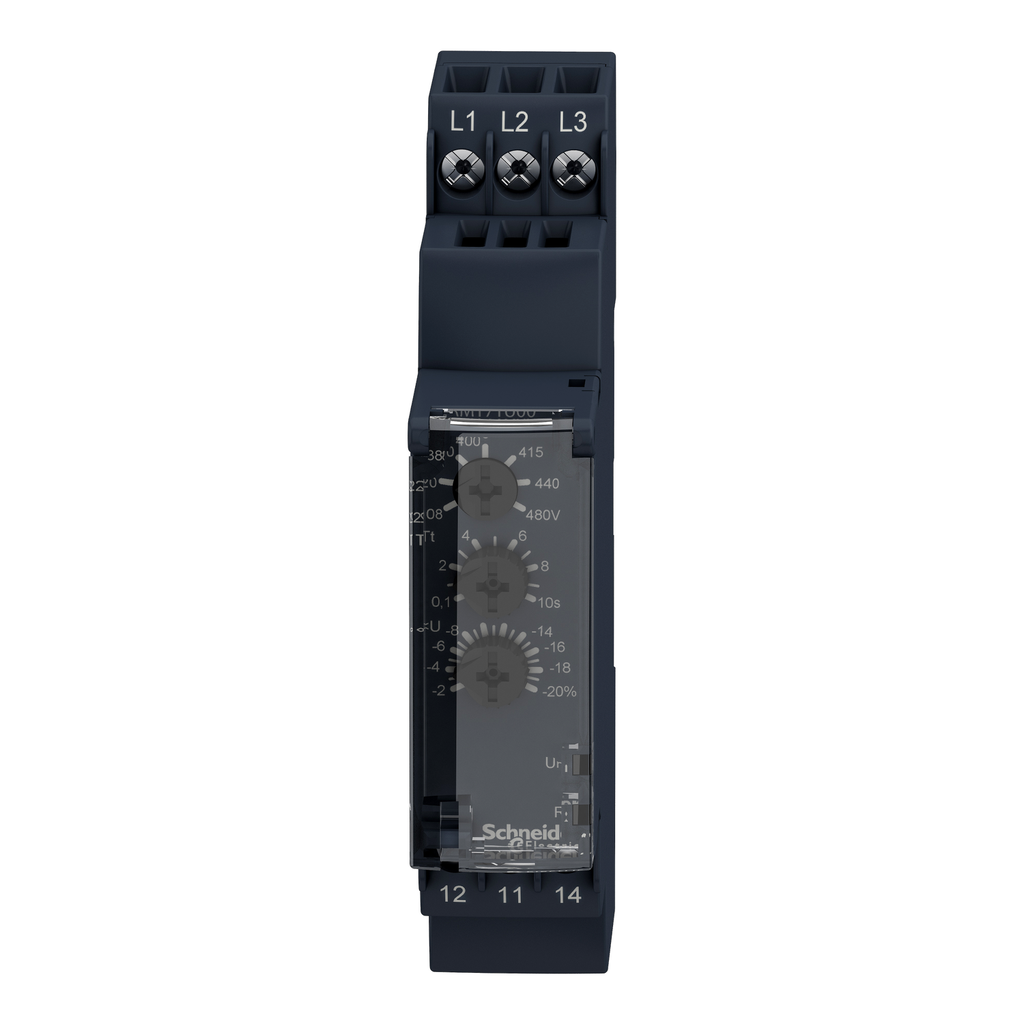

This Harmony RM17-TA relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase supply control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. The product monitors its own power supply, when the power supply is abnormal, the output relay de-energizes. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
- Environment
- Product Certifications : GOST || CSA || GL || C-tick || UL
- Standards : IEC 60255-1
- Non-Dissipating Shock Wave : 4 kV IEC 60255-5 || 4 kV IEC 60664-1 || 4 kV IEC 61000-4-5
- Dielectric Test Voltage : 2 kV AC 50 Hz, 1 min IEC 60255-5 || 2 kV AC 50 Hz, 1 min IEC 60664-1
- Electromagnetic Compatibility : emission standard for industrial environments conforming to IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 || immunity for industrial environments conforming to IEC 61000-6-2
- Shock Resistance : 15 gn 11 ms IEC 60255-21-1
- Ambient Air Temperature For Operation : -20-50 °C
- Vibration Resistance : 0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1
- Ip Degree Of Protection : IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
- Pollution Degree : 3 IEC 60664-1
- Directives : 89/336/EEC - electromagnetic compatibility || 73/23/EEC - low voltage directive
- Ambient Air Temperature For Storage : -40-70 °C
- Relative Humidity : 95-95 % 55-55 °C IEC 60068-2-30
- Contractual warranty
- Offer Sustainability
- Rohs Exemption Information : Yes
- Mercury Free : Yes
- Environmental Disclosure : ENVPEP1504008EN
- Sustainable Offer Status : Green Premium product
- Reach Regulation : Reference contains Substances of Very High Concern above the threshold
- California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation : X
- Circularity Profile : ENVEOLI1504008EN
- Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
- Complementary
- Voltage Range : 208...480 V phase to phase
- Safety Reliability Data : MTTFd = 502.2 years || B10d = 470000
- Minimum Switching Current : 10 mA 5 V DC
- Maximum Measuring Cycle : 150 ms measurement cycle as true rms value
- Control Circuit Voltage Limits : - 12 % + 10 % Un
- Maximum Switching Current : 5 A AC || 5 A DC
- Hysteresis : 2-2 %
- Insulation Resistance : > 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1
- Measurement Error : < 0.05 %/°C with temperature variation || < 1 % over the whole range with voltage variation
- Operating Rate : <= 360 operations/hour full load
- Phase Failure Sensitivity : 0.7 Un
- Power Consumption In Va : 0-22 VA 400 V AC 50 Hz
- Output Contacts : 1 C/O
- Adjustment Of Asymmetry Threshold : 5...15 % of Un selected
- Marking : CE
- Response Time : < 200 ms (in the event of a fault)
- Operating Position : any position without derating
- Utilisation Category : AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1
- Net Weight : 0.13 kg
- Maximum Switching Voltage : 250 V AC || 250 V DC
- Measurement Voltage Limits : 183-528 V AC
- Control Type : without test button
- Reset Time : 1500 ms time delay
- Connections - Terminals : screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
- [Us] Rated Supply Voltage : , self-powered
- [Ui] Rated Insulation Voltage : 400 V IEC 60664-1
- Overvoltage Category : III IEC 60664-1
- Supply Voltage Limits : 183-528 V AC
- Mounting Support : 35 mm symmetrical DIN rail conforming to IEC 60715
- Nominal Output Current : 5 A
- Local Signalling : for power ON LED (green) || for relay ON LED (yellow)
- Mechanical Durability : 30000000 cycles
- Housing Material : self-extinguishing plastic
- Control Circuit Frequency : 50...60 Hz +/- 10 %
- Width : 17.5 mm
- Tightening Torque : 0.6-1 N.m IEC 60947-1
- Electrical Durability : 100000 cycles
- Run-Up Delay At Power-Up : 650 ms
- Supply Frequency : 50/60 Hz +/- 10 %
- Repeat Accuracy : 0.5 % input and measurement circuit || 3 % time delay
- Specifications
- Country of Origin : Indonesia
- Width : 17.5 mm
- Weight : 0.13 kg
- Range Of Product : Harmony Control Relays
- Measurement Range : 208...480 V AC
- Switching Capacity In Va : 1250 VA
- Product Or Component Type : 3-phase control relay
- Relay Name : RM17TA
- Contacts Type And Composition : 1 C/O
- Relay Type : multifunction control relay
- Product Specific Application : for 3-phase supply
- Time Delay Type : adjustable 0.1...10 s, +/- 10 % of the full scale value Tt- time delay upon fault
- Relay Monitored Parameters : asymmetry || phase sequence || phase failure detection
- [Uc] Control Circuit Voltage : 208...480 V
