SQUARE D

Modular distribution chassis 36modules(18mm) for PLS box 360x270mm

MODULAR DISTRIBUTION CHASSIS 3

SQDNSYDLS36 NSYDLS36 3606480188480
82.47 / EA
http://schema.org/OutOfStock

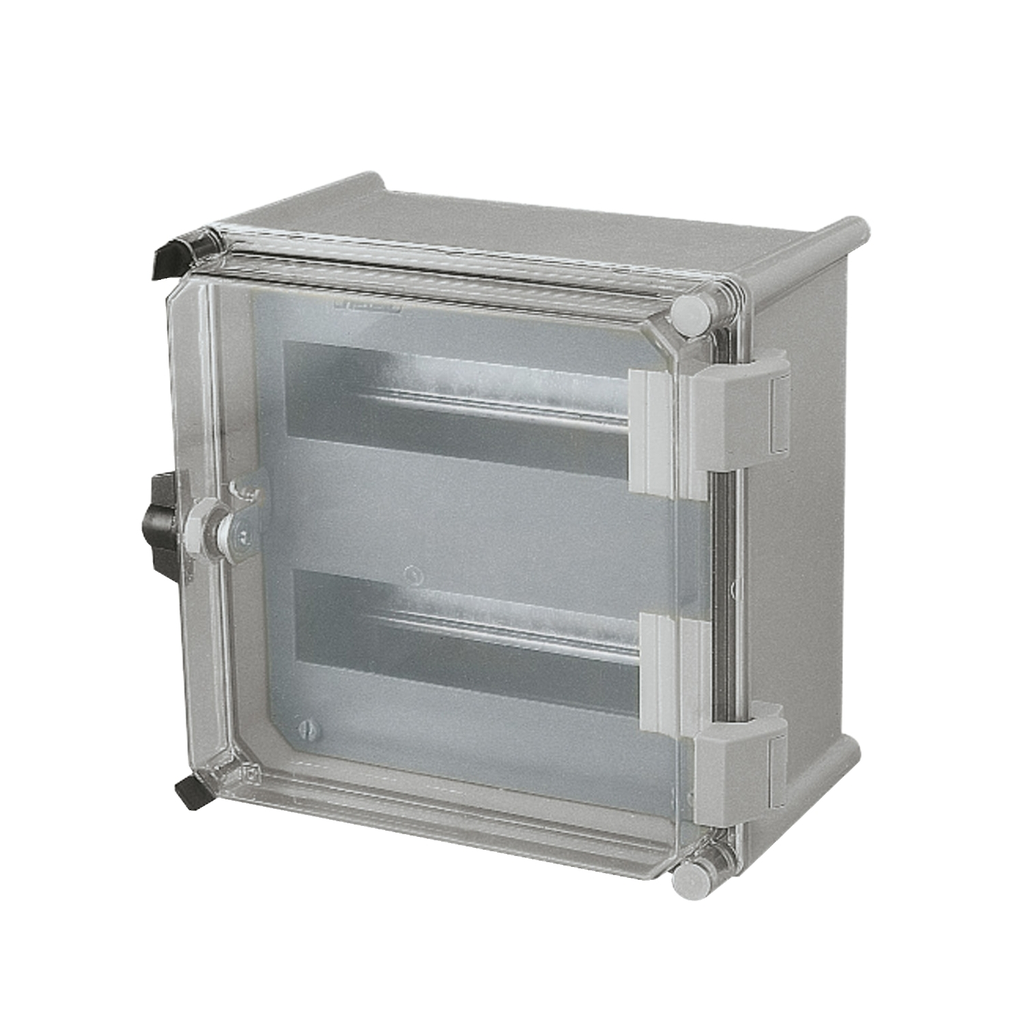

Mayer-DDS-Modular distribution chassis 36modules(18mm) for PLS box 360x270mm-1
  • Country of Origin: Spain
  • Depth: 90 mm
  • Height: 13.39 in
  • Warranty Length: 18 mth
  • Width: 10.24 in
DLS chassis for PanelSeT PLS enclosures. The chassis is to be fixed on front of enclosure by fixing elements with supports location. The width is 260mm. The height is 340mm. The depth is 90mm. Number of 18mm modules is 36 (1 module = 2 steps = 18 mm). Number of horizontal rows is 3. The front panel is made from self-extinguishing and chassis structure and rails are made from galvanised steel. The front panel is made from self-extinguishing and chassis structure and rails are made from galvanised steel. Number of cut-outs is 3. The kit is made up of 1 chassis structure, 1 front panel and 3 35mm DIN rails.
QTY
  • Product Description
  • Features
  • Specifications
DLS chassis for PanelSeT PLS enclosures. The chassis is to be fixed on front of enclosure by fixing elements with supports location. The width is 260mm. The height is 340mm. The depth is 90mm. Number of 18mm modules is 36 (1 module = 2 steps = 18 mm). Number of horizontal rows is 3. The front panel is made from self-extinguishing and chassis structure and rails are made from galvanised steel. The front panel is made from self-extinguishing and chassis structure and rails are made from galvanised steel. Number of cut-outs is 3. The kit is made up of 1 chassis structure, 1 front panel and 3 35mm DIN rails.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Color : front panel Gray RAL 7032)
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB, SI
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Device Application : modular distribution application, multi-purpose
    • Device Composition : 1 chassis structure, 1 front panel, 3 35 mm DIN rail
    • Enclosure Nominal Dimensions : - H: 360 mm W: 270 mm D: 180 mm, - H: 360 mm W: 270 mm D: 180 mm, - H: 360 mm W: 270 mm D: 180 mm, - H: 360 mm W: 270 mm D: 180 mm, - H: 360 mm W: 270 mm D: 180 mm, - H: 360 mm W: 270 mm D: 180 mm, - H: 360 mm W: 270 mm D: 180 mm, - H: 360 mm W: 270 mm D: 180 mm
    • Material : front panel self-extinguishing, chassis structure and rails galvanised steel
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-04-14
    • Return Indicator : N
    • Stocking Flag : Y
    • Stock Policy : 2
    • Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 1916
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Device Short Name : DLS
    • Fixing Mode : by fixing element - on front with supports
    • Mounting Location : front of enclosure
    • Number Of Horizontal Rows : 3
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : chassis
    • Range : PanelSeT
    • Returnability : No
    • Sustainable Packaging : No
    • Total Number Of 18 Mm Modules : 36
    • Type Of Front Plate : cut-out plate
    • Pep Code : ENVPEP1107004EN
    • Height Nominal : 340 mm
    • Height Useful : 340 mm
    • Width Nominal : 260 mm
    • Width Real : 260 mm
    • Accessory / Separate Part Category : mounting accessory
    • Number Of Cut-out : 3 cut-outs
    • Nbr. Of Units In Pkg. : 1
    • Package Weight(Lbs) : 958.000 g
    • Take-back : No
    • Warranty (In Months) : 18
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1107004EN
    • Eu Rohs Directive : Compliant By Exemption
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1107004EN
  • General Attributes
    • Product Or Component Type : chassis
  • ETIM
    • ETIM 8 : EC002625
    • ETIM 9 : EC002625
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Spain
    • Height : 13.39 in
    • Width : 10.24 in
    • Depth : 90 mm
