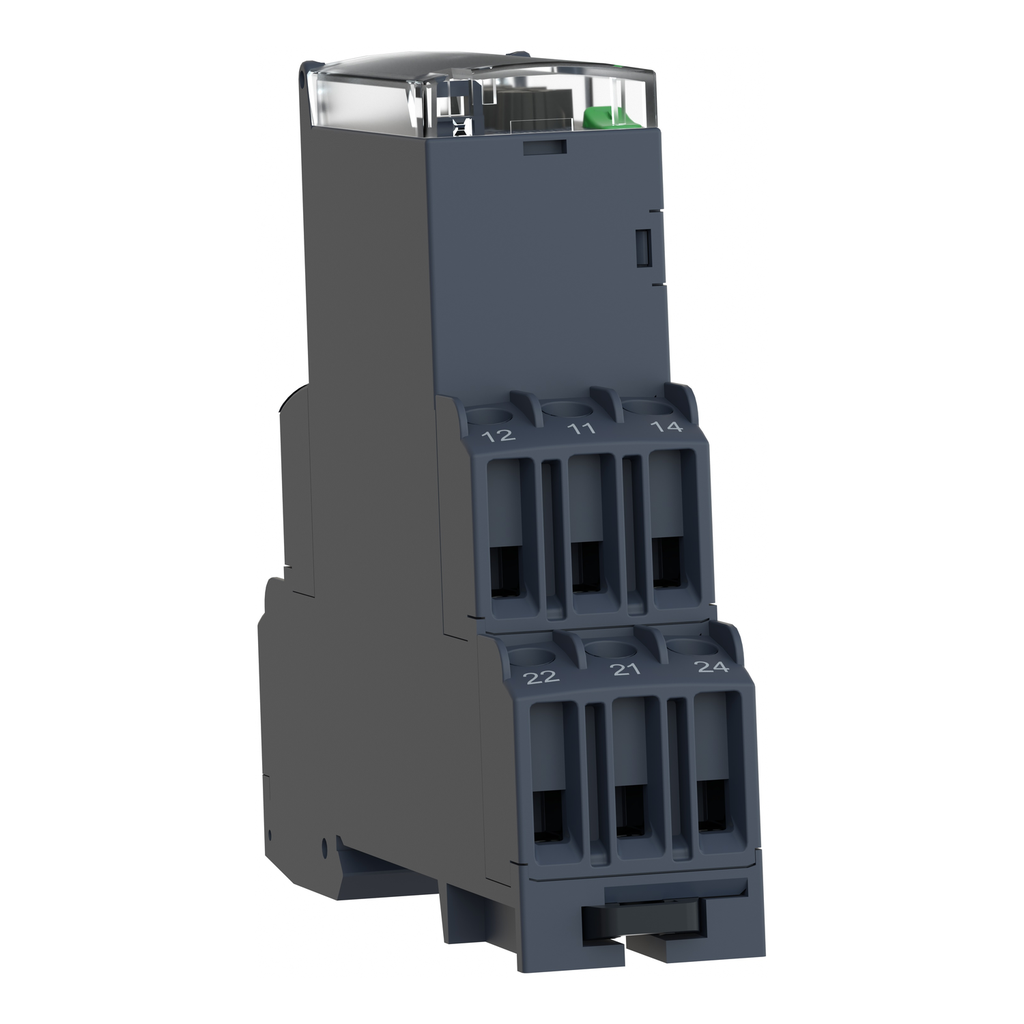

This Harmony RM22TR control relay allows monitoring of voltage control in 3-phase networks. This modular 3-phase control relay is ideal for monitoring of electrical values and voltage variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Maximum Measuring Cycle : 150 ms measurement cycle as true rms value, 150 ms measurement cycle as true rms value
• Maximum Switching Current : 8 A AC, 8 A AC
• Maximum Switching Voltage : 250 V AC, 250 V AC
• Minimum Switching Current : 10 mA 5 V DC, 10 mA 5 V DC, 10 mA 5 V DC
• US Rated Supply Voltage : AC/DC, , self-powered
• Control Circuit Voltage Limits : - 20 % + 20 % Un
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Dielectric Test Voltage : 2.5 kV AC 50 Hz, 1 min IEC 60255-27, 2.5 kV AC 50 Hz, 1 min IEC 60255-27, 2.5 kV AC 50 Hz, 1 min IEC 60255-27, 2.5 kV AC 50 Hz, 1 min IEC 60255-27, 2.5 kV AC 50 Hz, 1 min IEC 60255-27
• Electromagnetic Compatibility : immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1, immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1, immunity for industrial environments conforming to IEC 61000-6-2, immunity for industrial environments conforming to IEC 61000-6-2, emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, emission standard for industrial environments conforming to IEC 61000-6-4, emission standard for industrial environments conforming to IEC 61000-6-4, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4, surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5, surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5, surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5, surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5, surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5, conducted and radiated emissions class B group 1 conforming to CISPR 11, conducted and radiated emissions class B group 1 conforming to CISPR 11, conducted and radiated emissions class B group 1 conforming to CISPR 11, conducted and radiated emissions class B conforming to CISPR 22, conducted and radiated emissions class B conforming to CISPR 22, conducted and radiated emissions class B conforming to CISPR 22
• Hysteresis : 2-2 % fixed selectable, 2-2 % fixed selectable, 2-2 % fixed selectable
• Insulation Resistance : > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27
• Measurement Error : < 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation, < 0.05 %/°C with temperature variation, < 0.05 %/°C with temperature variation
• Measurement Range : 200...240 V voltage AC, 200...240 V voltage AC, 200...240 V voltage AC
• Mounting Support : 35 mm DIN rail conforming to IEC 60715, 35 mm DIN rail conforming to IEC 60715
• Overvoltage Category : III conforming to IEC 60664-1, III conforming to IEC 60664-1, III conforming to UL 508, III conforming to UL 508
• Power Consumption In VA : 10-10 VA 240 V AC 60 Hz, 10-10 VA 240 V AC 60 Hz, 10-10 VA 240 V AC 60 Hz, 10-10 VA 240 V AC 60 Hz
• Relay Monitored Parameters : phase sequence, phase failure detection, overvoltage and undervoltage detection
• Repeat Accuracy : +/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 3 % time delay, +/- 3 % time delay
• Reset Time : 1500 ms at maximum voltage, 1500 ms at maximum voltage
• Shock Resistance : 15 gn 11 ms) not in operation IEC 60068-2-27, 15 gn 11 ms) not in operation IEC 60068-2-27, 15 gn 11 ms) not in operation IEC 60068-2-27, 15 gn 11 ms) not in operation IEC 60068-2-27, 5 gn 11 ms) in operation IEC 60068-2-27, 5 gn 11 ms) in operation IEC 60068-2-27, 5 gn 11 ms) in operation IEC 60068-2-27, 5 gn 11 ms) in operation IEC 60068-2-27
• Status Led : LED (Yellow) relay ON, LED (Yellow) relay ON, LED (Yellow) relay ON, LED (Green) power ON, LED (Green) power ON, LED (Green) power ON
• Supply Frequency : 50...60 Hz +/- 10 %, 50...60 Hz +/- 10 %
• Supply Voltage Limits : 160-288 V AC, 160-288 V AC
• Switching Threshold Drift : <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range
• Tightening Torque : 0.6-1 N.m IEC 60947-1, 0.6-1 N.m IEC 60947-1
• Time Delay Drift : <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range
• Time Delay Type : adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault, adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault, adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault, adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault
• Utilisation Category : AC-15 IEC 60947-5-1, AC-15 IEC 60947-5-1, DC-13 IEC 60947-5-1, DC-13 IEC 60947-5-1, AC-1 IEC 60947-4-1, AC-1 IEC 60947-4-1, DC-1 IEC 60947-4-1, DC-1 IEC 60947-4-1
• Vibration Resistance : 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6, 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6, 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6, 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6, 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6, 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6, 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6, 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6, 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6, 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6, 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6, 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6, 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6, 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6, 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6, 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
• Voltage Detection Threshold : < 100 V AC, < 100 V AC
• Voltage Range : 200...240 V phase to phase, 200...240 V phase to phase
• Carbon Footprint Of The Distribution Phase A4 : 0.0130308364, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.0586883455, 0.1 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.0005039074
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 2 kg CO2 eq., 2.0760090909
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 69 kg CO2 eq., 68.6709333333
• Connections Terminals : screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end, screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-07
• HTML Description : THREE-PHASE VOLTAGE CONTROL RELAYSwitching capacity in VA : 2000 VAMounting diameter: 30 mmRated supply voltage : 200...240 V ACOutput contacts : 2 C/O
• Manufacturer : Schneider Electric
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2506066EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Compatibility Code : RM22
• Housing Material : polycarbonate
• Immunity To Microbreaks : 10 ms
• Package Weight Lbs : 101.0 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : 3-phase control relay
• Range Of Product : Harmony Control Relays
• Relay Name : RM22TR
• Response Time : <= 300 ms
• Returnability : Yes
• Setting Accuracy Of The Switching Threshold : +/- 10 % of the full scale
• Sustainable Packaging : Yes
• Threshold Adjustment Voltage : 2...20 % of Un selected
• Total Lifecycle Carbon Footprint : 71 kg CO2 eq.
• Relationship Type : cross-selling relationship
• Pep Code : ENVPEP2506066EN
• Pep Verification Date : 2019-05-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : To switch ON/OFF electrical contacts when the abnormal operating conditions is detected during 10 years and a 100% use rate.
• Functional Unit Unit : unité (unit)
• Product Kit Identifier : N
• Environment Attributes Main
• Ambient Air Temperature For Operation : -20-50 °C 60 Hz, -20-50 °C 60 Hz, -20-60 °C 50 Hz AC/DC, -20-60 °C 50 Hz AC/DC, -20-60 °C 50 Hz AC/DC
• EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP20 IEC 60529 terminals), IP20 IEC 60529 terminals), IP20 IEC 60529 terminals), IP40 IEC 60529 housing), IP40 IEC 60529 housing), IP40 IEC 60529 housing), IP50 IEC 60529 front panel), IP50 IEC 60529 front panel), IP50 IEC 60529 front panel)
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 93-97 % 25-55 °C IEC 60068-2-30, 93-97 % 25-55 °C IEC 60068-2-30, 93-97 % 25-55 °C IEC 60068-2-30
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 70.8191655134
• Circularity Profile : ENVEOLI2506066EN
• Environmental Disclosure : ENVPEP2506066EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Pep Code : ENVPEP2506066EN
• Pep Verification Date : 2019-05-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : 3-phase control relay
• Range Of Product : Harmony Control Relays
• Output Attributes
• Output Contacts : 2 C/O
