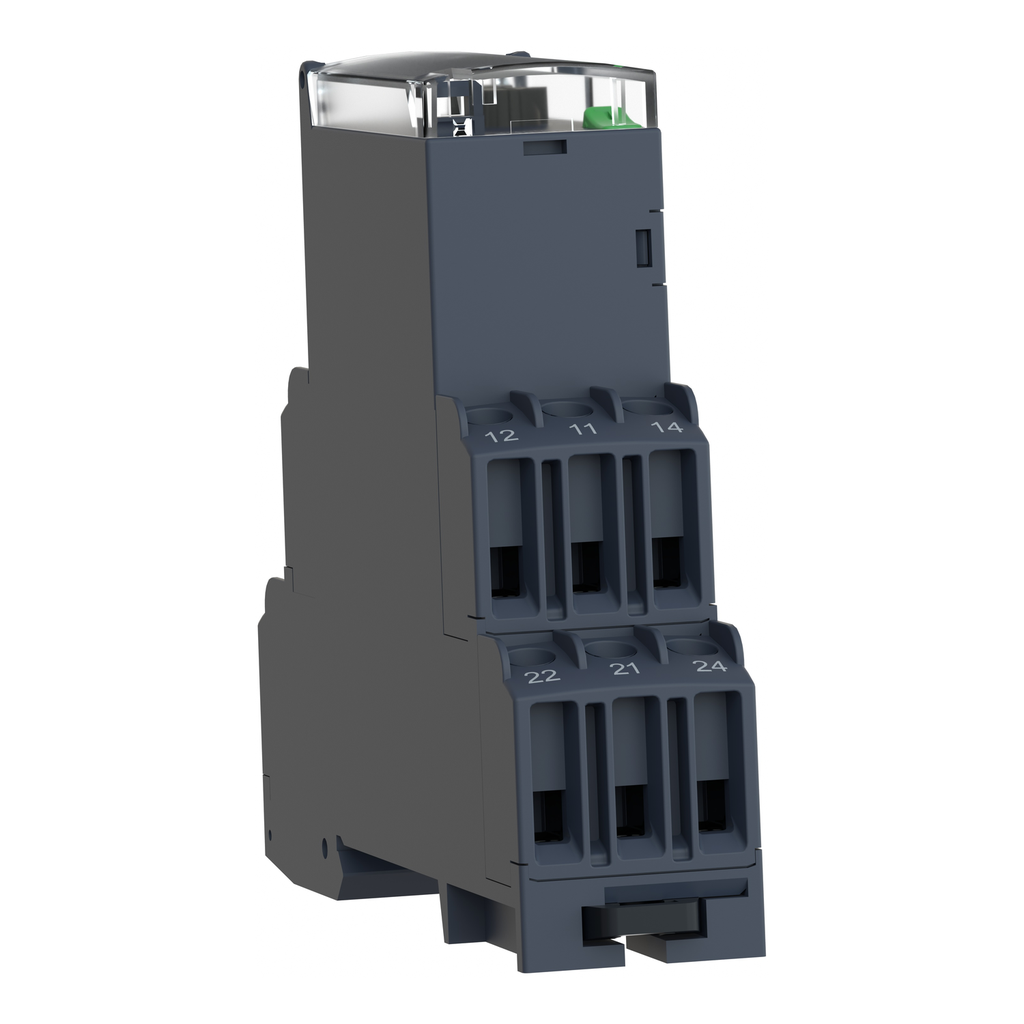

This Harmony RM22JA control relay allows monitoring of overcurrent control. This modular control relay is ideal for monitoring of electrical values and current variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Maximum Measuring Cycle : 100 ms measurement cycle as true rms value
• Maximum Power Consumption In VA : 3.5 VA
• Maximum Power Consumption In W : 1.5 W DC
• Maximum Switching Current : 8 A AC
• Maximum Switching Voltage : 250 V AC
• Minimum Switching Current : 10 mA 5 V DC
• US Rated Supply Voltage : 24...240 V AC/DC 50/60 Hz, non self-powered
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Electromagnetic Compatibility : immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1, immunity for industrial environments conforming to IEC 61000-6-2, emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, emission standard for industrial environments conforming to IEC 61000-6-4, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4, surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5, conducted and radiated emissions class B group 1 conforming to CISPR 11, conducted and radiated emissions class B conforming to CISPR 22
• Insulation Resistance : > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27
• Local Signalling : LED (yellow) for relay ON, LED (green) for power ON
• Measurement Error : < 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation, 0.05 %/°C with temperature variation
• Overvoltage Category : III conforming to IEC 60664-1, III conforming to UL 508
• Repeat Accuracy : +/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 0.2 % time delay, +/- 0.2 % time delay
• Resistance Across Terminals : 2.5 Ohm E1-M terminals, 0.5 Ohm E2-M terminals, 0.1 Ohm E3-M terminals
• Shock Resistance : 15 gn 11 ms) not in operation IEC 60068-2-27, 5 gn 11 ms) in operation IEC 60068-2-27
• Switching Threshold Drift : <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range
• Time Delay Drift : <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range
• Utilisation Category : AC-15 IEC 60947-5-1, DC-13 IEC 60947-5-1, AC-1 IEC 60947-4-1, DC-1 IEC 60947-4-1
• Vibration Resistance : 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6, 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6, 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6, 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
• Carbon Footprint Of The Distribution Phase A4 : 0.09392744528575005, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.3231292184488894, 0.3 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.0008695699160779772
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 3 kg CO2 eq., 2.779826432024163
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 41 kg CO2 eq., 40.75904111642341
• Connections Terminals : screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end, screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-25
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2506066EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Compatibility Code : RM22
• Dielectric Test Voltage : 2.5 kV AC 50 Hz, 1 min IEC 60255-27
• Housing Material : polycarbonate
• Hysteresis : 5-50 % adjustable threshold setting
• Measurement Range : 4 mA...1 A current AC/DC 50/60 Hz
• Mounting Support : 35 mm DIN rail conforming to IEC 60715
• Package Weight Lbs : 121.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : current control relay
• Range Of Product : Harmony Control Relays
• Relay Monitored Parameters : overcurrent detection
• Relay Name : RM22JA
• Reset Time : 1500 ms at maximum voltage
• Response Time : <= 500 ms
• Returnability : Yes
• Supply Voltage Limits : 20.4-264 V AC/DC
• Sustainable Packaging : Yes
• Tightening Torque : 0.6-1 N.m IEC 60947-1
• Time Delay Type : without
• Total Lifecycle Carbon Footprint : 44 kg CO2 eq.
• Relationship Type : cross-selling relationship
• Pep Code : ENVPEP2506066EN
• Pep Verification Date : 2025-06-30
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : To switch ON/OFF electrical contacts when the abnormal operating conditions is detected during 10 years and a 80% use rate.
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Environment Attributes Main
• Ambient Air Temperature For Operation : -20-50 °C 60 Hz, -20-50 °C 60 Hz, -20-60 °C 50 Hz, -20-60 °C 50 Hz
• EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP20 IEC 60529 terminals), IP40 IEC 60529 housing), IP50 IEC 60529 front panel)
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 43.956793782098295
• Circularity Profile : ENVEOLI2506066EN
• Environmental Disclosure : ENVPEP2506066EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 93-97 % 25-55 °C IEC 60068-2-30
• Pep Code : ENVPEP2506066EN
• Pep Verification Date : 2025-06-30
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : current control relay
• Range Of Product : Harmony Control Relays
• Output Attributes
• Output Contacts : 2 C/O
• Input Attributes
• Internal Input Resistance : 0.1 Ohm, 2.5 Ohm, 0.5 Ohm
