EIO drop adapter, Modicon X80, with Ethernet backplane, coated

RIO DROP E/IP PERF ON ETHERNET

SQDBMECRA31210C BMECRA31210C 3595864174020
2766.23 / EA
http://schema.org/OutOfStock

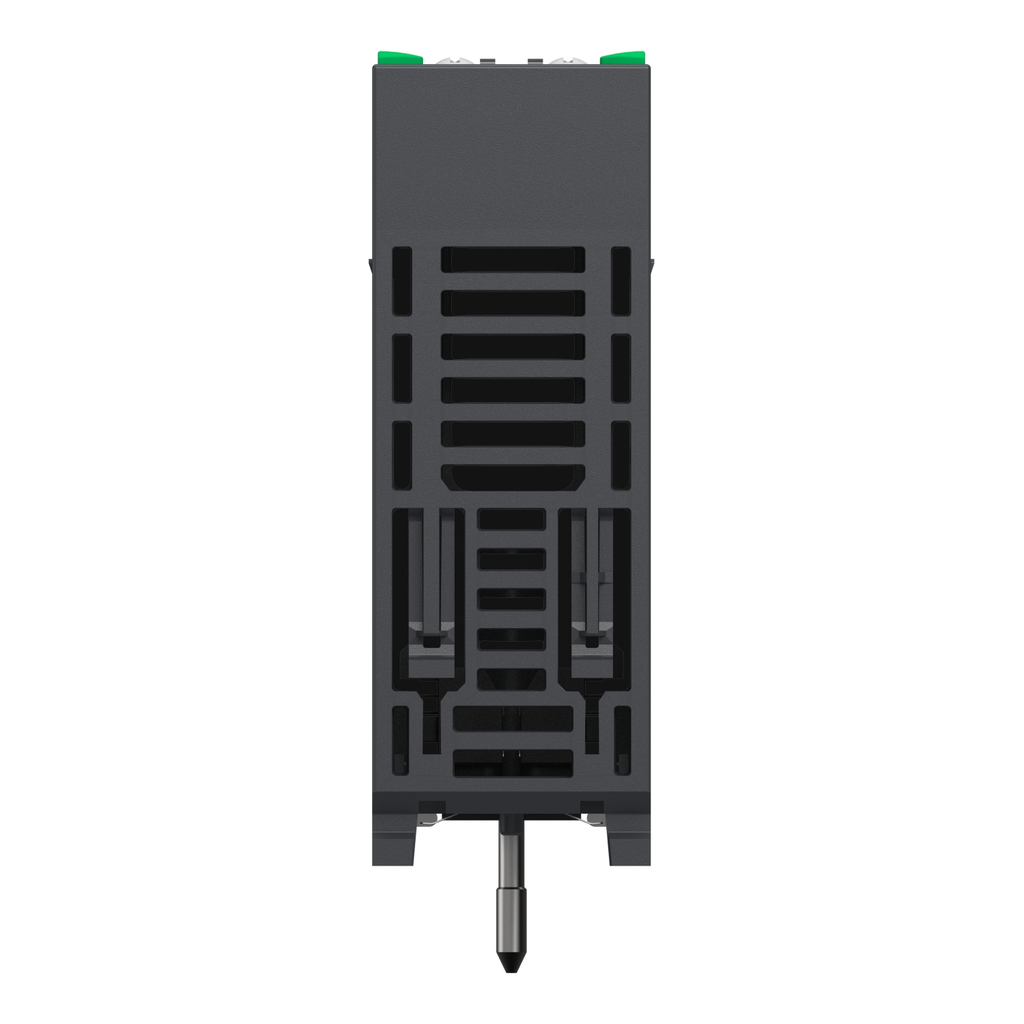

Mayer-DDS-EIO drop adapter, Modicon X80, with Ethernet backplane, coated-1
  • Connection Type: 3 RJ45
  • Depth: 87.5 mm
  • Input Voltage: 3.3 V
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet Remote Input Output (RIO) drop adaptor has 3 ports with Ethernet backplane coated. Integrated connections are EtherNet/IP for device network and EtherNet/IP for service port. Thanks to a protective coating on its circuit board, this product can be used in harsh environments. The input data are collected and published to the remote I/O head adaptor and output modules are updated with the data received from remote I/O head adaptor. It is an IP20 rated product. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, GOST, C-Tick. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This adaptor is compatible with multifunction input module BMXERT, Ethernet module BMXNOM, counter module BMXEHC, 0 to 1024 discrete channels, 0 to 256 analogue channels, HART module BMEAH and weighing module PMESWT. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Features
    • Modularity and scalability
    • Robustness and reliability
    • IP20 protection for harshest environments
    • Wide range of operating temperature from 0°C to 60°C
  • Communications & Management Attributes
    • Communication Service : Ethernet/IP adapter, RSTP (Ring topology support), Ethernet RIO network, Quality of Service (QoS), CIP Explicit messaging (server), Modbus TCP server for module diagnostics, DHCP client, TFTP client, FTP client, FDR client, NTP client, SNTP client, SNMP agent
    • Communication Network Type : IPv4 (internet protocol)
    • Communication Port Protocol : EtherNet/IP
  • Conformance Attributes
    • Product Certifications : CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22, hazardous location class 1, division 2
    • Standards : IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, IEC 61000-6-5, interface type 1 and type 2, IEC 61850-3, location G, IEC 60079-0, UL 121201, CSA C22.2 No 213
  • Complementary Attributes
    • Integrated Connection Type : 1 port service or distributed equipment, 2 port Ethernet RIO Network (RSTP)
    • Maximum Altitude Transport : 3000 m
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Cybersecurity : enable/disable communication ports, Syslog protocol support
    • Environmental Characteristic : gas resistant class Gx ISA S71.04, gas resistant class 3C4 IEC 60721-3-3, dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252, mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3
    • Function Available : CCOTF (configuration change on the fly), input data is collected and published to the remote I/O head adaptor, output modules are updated with the data received from remote I/O head adaptor, diagnostics for remote I/O devices (Device DDT), port mirroring, system time stamping, non-interfering type 1, I/O extension rack
    • Local Signalling : 1 LED (green) for module active (RUN), 1 LED (red) for module error (ERR), 1 LED (green/red) for module status (Mod Status), 1 LED (green/red) for network communication status (Net Status), 1 LED (green) for Ethernet link diagnostics (STS)
    • Carbon Footprint Of The Distribution Phase A4 : 0.03556825, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.4 kg CO2 eq., 0.43775
    • Carbon Footprint Of The Installation Phase A5 : 0.108279375, 0.1 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 19 kg CO2 eq., 18.52575
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 265 kg CO2 eq., 264.8825699922
    • Bus Type : bus X across the remote backplane, Ethernet across the remote backplane
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-23
    • Manufacturer : Schneider Electric
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2402021EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Connector Type : 3 RJ45
    • Current Consumption : 1800 mA
    • Data Recording : 10 ms time stamps
    • Device Application : X80 Ethernet RIO drop adaptor
    • Exchange Mode : half duplex, full duplex, autonegotiation, auto MDIX
    • Fixing Mode : by screws
    • Mounting Mode : rack-mounted
    • Package Weight Lbs : 269.000 g
    • Port Ethernet : 10/100BASE-TX
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : I/O expansion module
    • Product Specific Application : for remote I/O modules
    • Protective Treatment : conformal coating
    • Range Of Product : Modicon X80
    • Returnability : Yes
    • Sustainable Packaging : No
    • Topology : ring
    • Total Lifecycle Carbon Footprint : 284 kg CO2 eq.
    • Transmission Rate : 10/100 Mbit/s
    • Medium Desc : EIO drop adapter, Modicon X80, with Ethernet backplane, coated
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2402021EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : The Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
    • Functional Unit Unit : Unit
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; FR
    • Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • Take Back : No, Nej
    • Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • Operating Altitude : <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
    • Product Compatibility : 0-1024 discrete channel, 0-256 analog channel, counter module, time-stamping module, SSI encoder interface module, motion control module, frequency input module, AS-Interface module, serial link module, fiber converter modules, HART module, weighing module, CANopen master module (standalone CPU only), PROFIBUS module (standalone CPU only), Ethernet switch module
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 283.9899176172
    • Ambient Air Temperature For Operation : 0-60 °C
    • Ambient Air Temperature For Storage : -40-85 °C
    • Circularity Profile : ENVEOLI2402021EN
    • Environmental Disclosure : ENVPEP2402021EN
    • IP Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 95-95 % without condensation
    • Pep Code : ENVPEP2402021EN
    • Pep Verification Date : 2023-11-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : I/O expansion module
    • Range Of Product : Modicon X80
  • Input Attributes
    • Input Voltage : 3.3 V DC
  • Specifications
    • Depth : 87.5 mm
