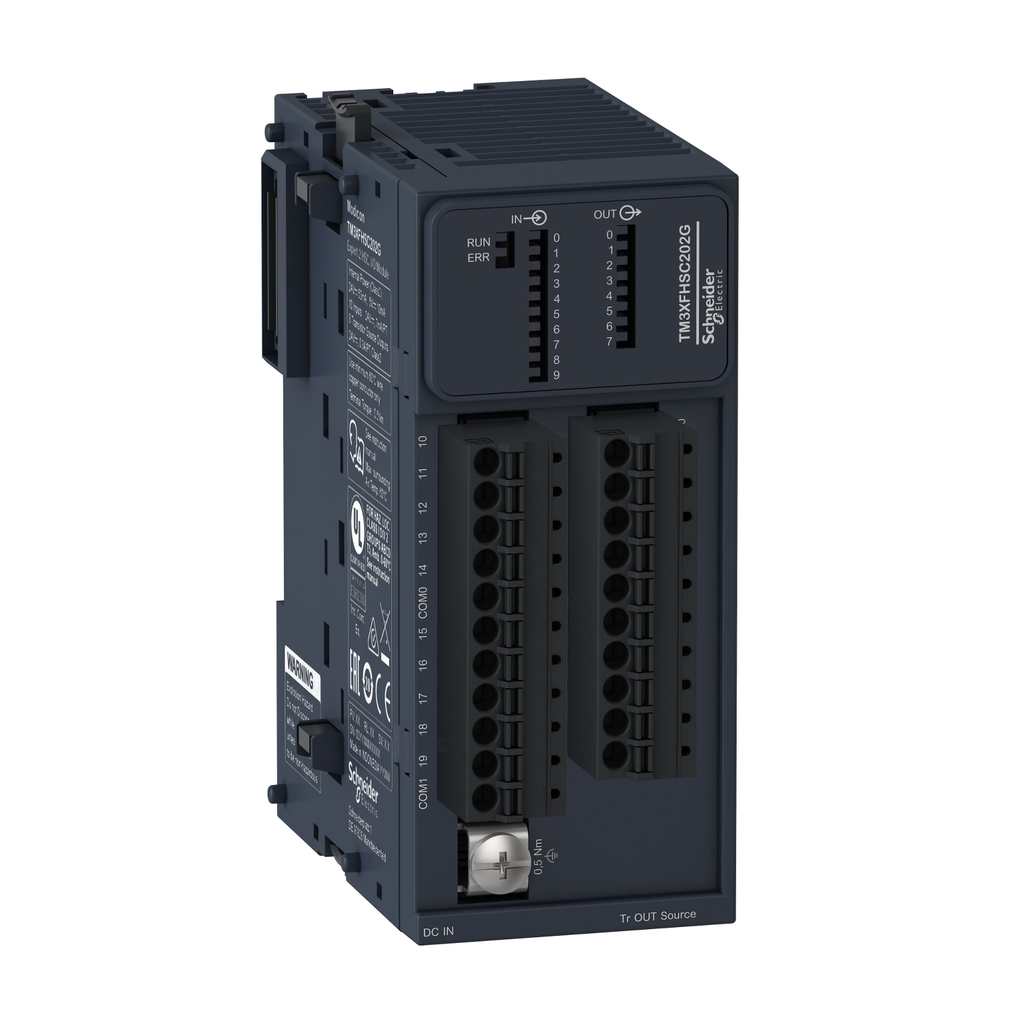

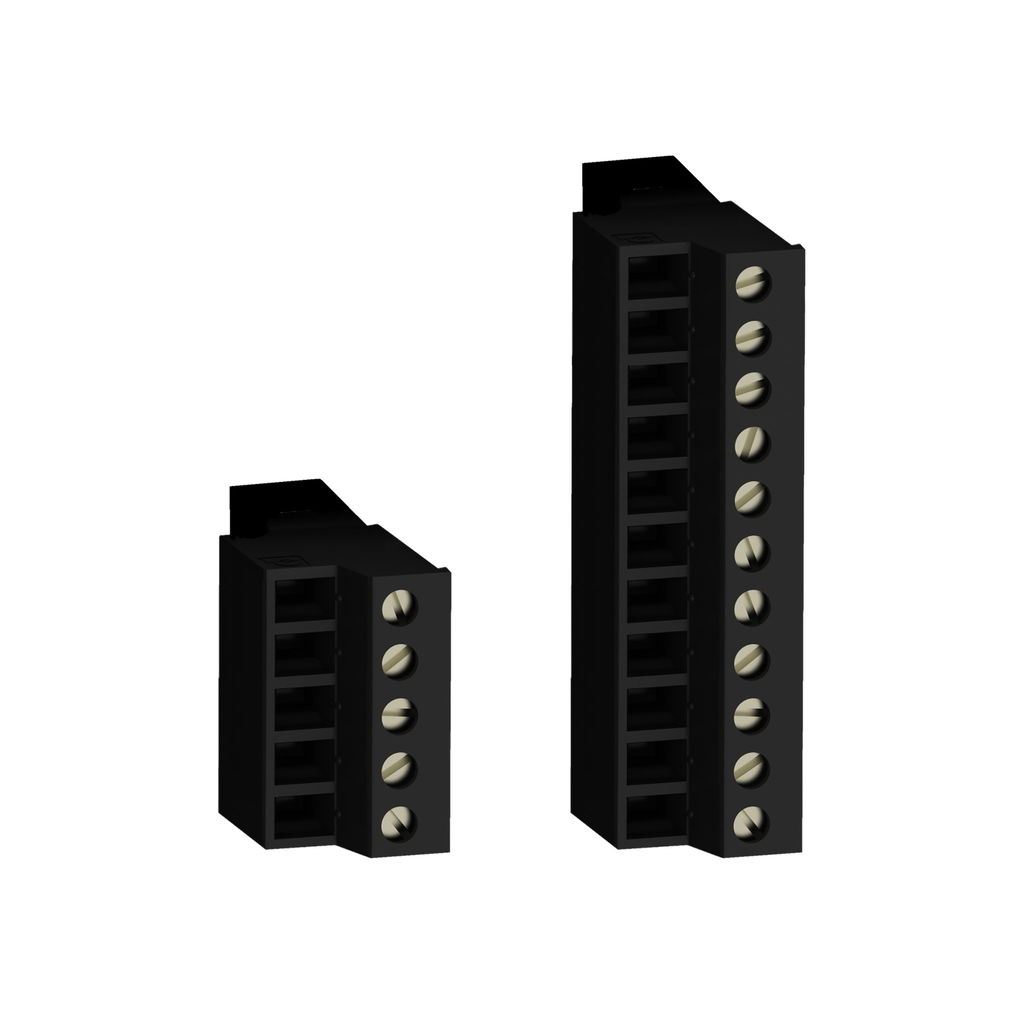

This product is part of Modicon TM3, a range of expansion I/O modules for Modicon plcs. This counter module provides 10 fast inputs and 8 fast outputs. It is a high-speed counter with reflex output management, no event management. It is used to count the pulses generated by a sensor or to process signals from an incremental encoder. Its counting frequency is 200kHz. It works via a 24VDC external power supply. It is furnished with a removable spring terminal for electrical connection with pitch 3.81mm adjustment for inputs and supply. It is an IP20-rated product. Its dimensions are 39mm wide, 85mm deep and 90mm high. It weighs 0.150kg It is designed to accept high-speed pulse-type input signals for counting and to provide high-speed pulse-type output signals. This product is certified by CSA, cULus, IACS E10, RCM, CE, UKCA and EAC. This module is compatible with Modicon M262 motion/logic controller and is configurable with EcoStruxure machine expert software. It is delivered in 1 package (PCE type). It is mounted on a symmetrical DIN rail. Or with a specific kit for plate or panel mounting. The specially developed Modicon TM3 I/O system enables flexible and customizable expansion of the I/O terminals in all the controllers. From design and development to commissioning and maintenance, EcoStruxure Machine Expert is a complete machine-building solution.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Conformance Attributes
• Standards : CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 1604, CSA C22.2 No 213, EN/IEC 61131-2:2007, EN/IEC 61131-2:2007, UL 508, EN/IEC 61010-2-201
• Complementary Attributes
• US Rated Supply Voltage : 24 V DC external supply - 15...20 %), 24 V DC external supply - 15...20 %), 24 V DC external supply - 15...20 %), 24 V DC external supply - 15...20 %)
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
• Current Consumption : 100 mA 5 V DC, 100 mA 5 V DC, 100 mA 5 V DC, 50 mA 24 V DC, 50 mA 24 V DC, 50 mA 24 V DC
• Electromagnetic Emission : conducted emissions 120...69 dBµV/m QP10-150 kHz EN/IEC 55011, conducted emissions 120...69 dBµV/m QP10-150 kHz EN/IEC 55011, conducted emissions 120...69 dBµV/m QP10-150 kHz EN/IEC 55011, conducted emissions 120...69 dBµV/m QP10-150 kHz EN/IEC 55011, conducted emissions 63 dBμV/m QP1.5-30 MHz EN/IEC 55011, conducted emissions 63 dBμV/m QP1.5-30 MHz EN/IEC 55011, conducted emissions 63 dBμV/m QP1.5-30 MHz EN/IEC 55011, conducted emissions 63 dBμV/m QP1.5-30 MHz EN/IEC 55011, radiated emissions 40 dBµV/m class A30-230 MHz EN/IEC 55011, radiated emissions 40 dBµV/m class A30-230 MHz EN/IEC 55011, radiated emissions 40 dBµV/m class A30-230 MHz EN/IEC 55011, radiated emissions 40 dBµV/m class A30-230 MHz EN/IEC 55011, radiated emissions 40 dBµV/m class A30-230 MHz EN/IEC 55011, conducted emissions 79...63 dBμV/m QP150-1500 kHz EN/IEC 55011, conducted emissions 79...63 dBμV/m QP150-1500 kHz EN/IEC 55011, conducted emissions 79...63 dBμV/m QP150-1500 kHz EN/IEC 55011, conducted emissions 79...63 dBμV/m QP150-1500 kHz EN/IEC 55011, radiated emissions 47 dBµV/m class A230-1000 MHz EN/IEC 55011, radiated emissions 47 dBµV/m class A230-1000 MHz EN/IEC 55011, radiated emissions 47 dBµV/m class A230-1000 MHz EN/IEC 55011, radiated emissions 47 dBµV/m class A230-1000 MHz EN/IEC 55011, radiated emissions 47 dBµV/m class A230-1000 MHz EN/IEC 55011
• Event Management : No event, Thresholds < 10 µs, Thresholds < 10 µs
• Local Signalling : 1 LED I/O, 1 LED I/O, 1 LED RUN, 1 LED RUN, 1 LED ERR, 1 LED ERR
• Mounting Support : top hat type TH35-15 rail IEC 60715, top hat type TH35-15 rail IEC 60715, top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
• Resistance To Conducted Disturbances : 10 V 0.15...80 MHz EN/IEC 61000-4-4, 10 V 0.15...80 MHz EN/IEC 61000-4-4, 10 V 0.15...80 MHz EN/IEC 61000-4-4
• Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz EN/IEC 61000-4-3, 10 V/m 80 MHz...1 GHz EN/IEC 61000-4-3, 10 V/m 80 MHz...1 GHz EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-3, 1 V/m 2 GHz...3 GHz EN/IEC 61000-4-3, 1 V/m 2 GHz...3 GHz EN/IEC 61000-4-3, 1 V/m 2 GHz...3 GHz EN/IEC 61000-4-3
• Resistance To Electrostatic Discharge : 8 kV in air EN/IEC 61000-4-2, 8 kV in air EN/IEC 61000-4-2, 8 kV in air EN/IEC 61000-4-2, 4 kV on contact EN/IEC 61000-4-2, 4 kV on contact EN/IEC 61000-4-2, 4 kV on contact EN/IEC 61000-4-2
• Resistance To Fast Transients : 2 kV alimentation cableEN/IEC 61000-4-4, 2 kV alimentation cableEN/IEC 61000-4-4, 2 kV alimentation cableEN/IEC 61000-4-4, 1 kV Ethernet lineEN/IEC 61000-4-4, 1 kV Ethernet lineEN/IEC 61000-4-4, 1 kV Ethernet lineEN/IEC 61000-4-4, 1 kV serial linkEN/IEC 61000-4-4, 1 kV serial linkEN/IEC 61000-4-4, 1 kV serial linkEN/IEC 61000-4-4, 1 kV inputEN/IEC 61000-4-4, 1 kV inputEN/IEC 61000-4-4, 1 kV inputEN/IEC 61000-4-4, 1 kV transistor outputEN/IEC 61000-4-4, 1 kV transistor outputEN/IEC 61000-4-4, 1 kV transistor outputEN/IEC 61000-4-4
• Services : HSC simple One shot/Modulo, HSC simple One shot/Modulo, HSC main single phase One shot/Modulo/Event counting, HSC main single phase One shot/Modulo/Event counting, HSC main dual phase Modulo/Free-large, HSC main dual phase Modulo/Free-large, period meter Edge to Edge, Edge to Opposite, period meter Edge to Edge, Edge to Opposite
• Shock Resistance : 15 gn 11 ms, 15 gn 11 ms
• Vibration Resistance : 3.5 mm 2-8.4 Hz DIN rail, 3.5 mm 2-8.4 Hz DIN rail, 3.5 mm 2-8.4 Hz DIN rail, 1 gn 8.4-200 Hz DIN rail, 1 gn 8.4-200 Hz DIN rail, 1 gn 8.4-200 Hz DIN rail, 3.5 mm 2-8.4 Hz panel, 3.5 mm 2-8.4 Hz panel, 3.5 mm 2-8.4 Hz panel, 1 gn 8.4-200 Hz panel, 1 gn 8.4-200 Hz panel, 1 gn 8.4-200 Hz panel
