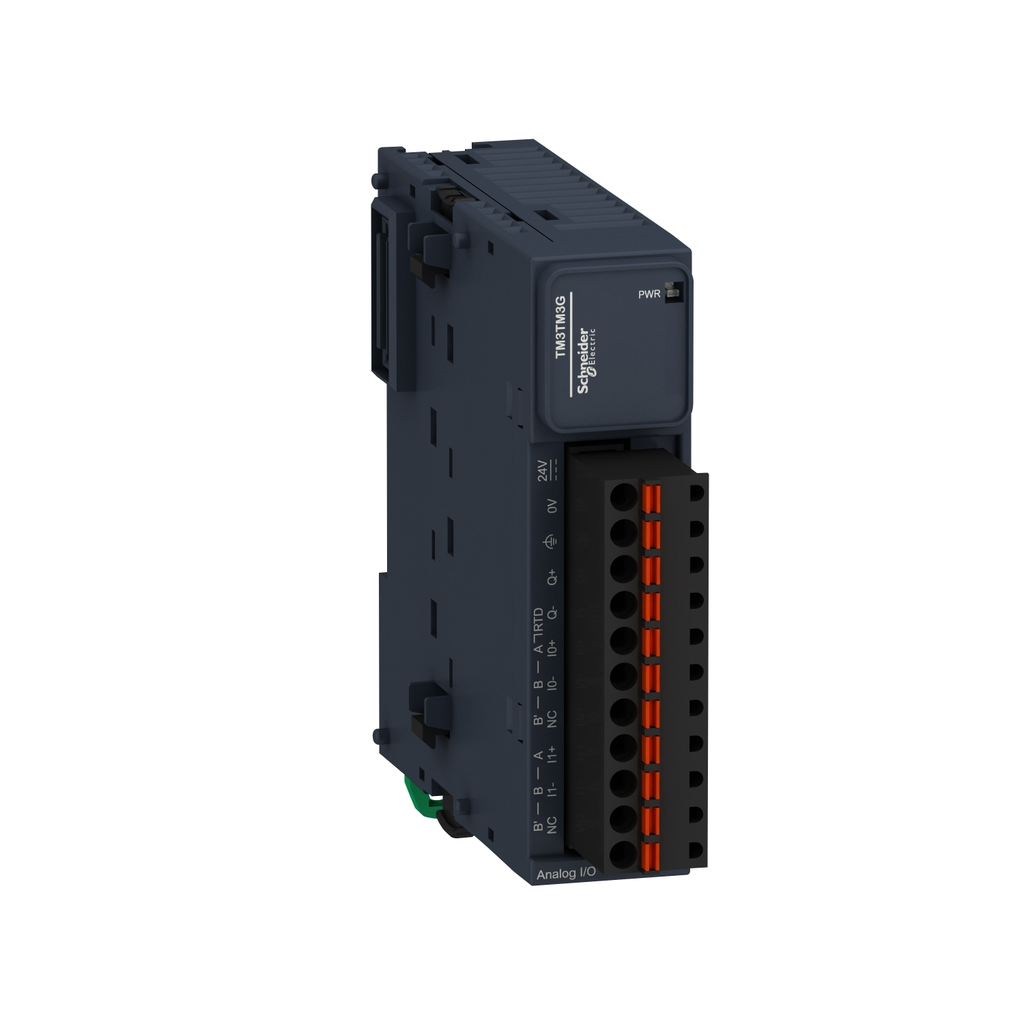

Input/output analog module, Modicon TM3, 2 or temperature inputs, 1 output (spring) 24 VDC

Input/output analog module, Modicon TM3, 2 or temperature inputs, 1 output (spring) 24 VDC

SQDTM3TM3G TM3TM3G 785901985990
262.38 / EA
  • Current: 24 V, 5 V, 55 mA, 60 mA, 80 mA
  • Depth: 70 mm
  • Height: 90 mm
  • Impedance: 1 mOhm, 50 ohm
  • Net Weight: 0.1 kg
  • Standard: EN/IEC 61010-2-201, EN/IEC 61131-2
  • Width: 23.6 mm
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue I/O module provides 2 inputs, 1 output with 16bit, 15bit + sign input resolution. It is an I/O module with a rated supply voltage of 24V DC, a current consumption of 60mA, 55mA at 5V DC via bus connector, 55mA, 80mA at 24V DC via external supply. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC, output and supply at 1500V AC and output and internal logic at 500V AC. It is furnished with removable spring terminal for electrical connection with 5.08mm pitch adjustment for inputs, outputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.1kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
  • Product Description
  • Specifications
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue I/O module provides 2 inputs, 1 output with 16bit, 15bit + sign input resolution. It is an I/O module with a rated supply voltage of 24V DC, a current consumption of 60mA, 55mA at 5V DC via bus connector, 55mA, 80mA at 24V DC via external supply. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC, output and supply at 1500V AC and output and internal logic at 500V AC. It is furnished with removable spring terminal for electrical connection with 5.08mm pitch adjustment for inputs, outputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.1kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
  • Complementary
    • Load Type : resistive
    • Local Signalling : for PWR 1 LED (green)
    • Cross Talk : <= 1 LSB
    • Maximum Height : 90 mm
    • Repeat Accuracy : +/-0.5 %FS input || +/- 0.4 %FS output
    • Maximum Width : 23.6 mm
    • Mounting Support : top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
    • Sampling Duration : 10 ms voltage/current || 100 ms voltage/current || 100 ms thermocouple || 100 ms temperature probe
    • Marking : CE
    • Insulation : between input and supply 1500 V AC || between input and internal logic 500 V AC || between output and supply 1500 V AC || between output and internal logic 500 V AC
    • Load Impedance Ohmic : 1 kOhm voltage || 300 Ohm current
    • Permissible Continuous Overload : 13 V voltage || 40 mA current
    • Supply Voltage Limits : 20.4-28.8 V
    • Lsb Value : 0.15 mV 0...10 V voltage || 0.30 mV - 10...10 V voltage || 0.30 µA 0...20 mA current || 0.244 µA 4...20 mA current || 0.1 °C temperature probe || 0.1 °C thermocouple || 2.44 mV 0...10 V voltage || 4.88 mV - 10...10 V voltage || 4.88 µA 0...20 mA current || 3.91 µA 4...20 mA current
    • Output Ripple : 20 mV
    • Maximum Depth : 70 mm
    • Conversion Time : 100 ms + 100 ms per channel + 1 controller cycle time thermocouple || 100 ms + 100 ms per channel + 1 controller cycle time temperature probe || 10 ms + 10 ms per channel + 1 controller cycle time voltage/current
    • Analogue Output Resolution : 12 bits
    • Analogue Input Resolution : 16 bits || 15 bits + sign
    • Absolute Accuracy Error : +/- 6 °C 25 °C thermocouple R, S 0...200 °C || +/- 0.4 % of full scale 25 °C thermocouple K - 200...0 °C || +/- 0.4 % of full scale 25 °C thermocouple J - 200...0 °C || +/- 0.4 % of full scale 25 °C thermocouple E - 200...0 °C || +/- 0.4 % of full scale 25 °C thermocouple T - 200...0 °C || +/- 0.4 % of full scale 25 °C thermocouple N - 200...0 °C || +/- 0.1 % of full scale 25 °C voltage/current || +/- 0.1 % of full scale 25 °C thermocouple C 0...2315 °C || +/- 0.1 % of full scale 25 °C Pt 100/Pt 1000, Ni 100/ Ni 1000 || +/- 0.1 % of full scale 25 °C thermocouple R, S 200...1760 °C || +/- 0.1 % of full scale 25 °C thermocouple B 300...1820 °C || +/- 0.1 % of full scale 25 °C thermocouple K 0...1300 °C || +/- 0.1 % of full scale 25 °C thermocouple J 0...1000 °C || +/- 0.1 % of full scale 25 °C thermocouple E 0...800 °C || +/- 0.1 % of full scale 25 °C thermocouple T 0...400 °C || +/- 0.1 % of full scale 25 °C thermocouple N 0...1300 °C || +/- 0.1 % of full scale 25 °C voltage/current
    • Input Impedance : <= 50 Ohm current || >= 1 MOhm voltage || >= 1 MOhm thermocouple || >= 1 MOhm temperature probe
    • Net Weight : 0.1 kg
    • Stabilisation Time : 1 ms
    • Electrical Connection : 11 x 2.5 mm² removable spring terminal block pitch 5.08 mm for inputs, outputs and supply
    • Type Of Cable : twisted shielded pairs cable <30 m input/output
    • Surge Withstand : 1 kV power supply common mode EN/IEC 61000-4-5 || 0.5 kV power supply differential mode EN/IEC 61000-4-5 || 1 kV I/O common mode EN/IEC 61000-4-5 || 0.5 kV I/O differential mode EN/IEC 61000-4-5
    • Current Consumption : 55 mA 24 V DC via external supply no load || 55 mA 5 V DC via bus connector no load || 60 mA 5 V DC via bus connector full load || 80 mA 24 V DC via external supply full load
    • Temperature Drift : +/- 0.006 %FS/°C
    • Non-Linearity : +/- 0.01 %FS analog output || +/- 0.1 %FS analog input
    • [Us] Rated Supply Voltage : 24 V DC
  • Offer Sustainability
    • Toxic Heavy Metal Free : Yes
    • Rohs Exemption Information : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Circularity Profile : ENVEOLI1402009EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Mercury Free : Yes
    • Pvc Free : Yes
    • China Rohs Regulation : X
    • Environmental Disclosure : ENVPEP1402009EN
  • Analogue Output Type : current 4...20 mA || current 0...20 mA || voltage 0...10 V || voltage - 10...10 V
  • Product Or Component Type : input/output analog module
  • Analogue Input Type : current 4...20 mA || current 0...20 mA || voltage 0...10 V || voltage - 10...10 V || thermocouple - 200...1000 °C thermocouple J || thermocouple - 200...1300 °C thermocouple K || thermocouple 0...1760 °C thermocouple R || thermocouple 0...1760 °C thermocouple S || thermocouple 0...1820 °C thermocouple B || thermocouple - 200...400 °C thermocouple T || thermocouple - 200...1300 °C thermocouple N || thermocouple - 200...800 °C thermocouple E || thermocouple 0...2315 °C thermocouple C || Ni 100/Ni 1000 temperature probe - 60...180 °C || Pt 100 temperature probe - 200...850 °C || Pt 1000 temperature probe - 200...600 °C
  • Range Compatibility : Modicon M221 || Modicon M241 || Modicon M251 || Modicon M262
  • Analogue Input Number : 2
  • Range Of Product : Modicon TM3
  • Analogue Output Number : 1
  • Environment
    • Resistance To Magnetic Fields : 30 A/m EN/IEC 61000-4-8
    • Ambient Air Temperature For Operation : -10-55 °C horizontal installation || -10-35 °C vertical installation
    • Shock Resistance : 15 gn 11 ms
    • Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz EN/IEC 61000-4-3
    • Standards : EN/IEC 61131-2 || EN/IEC 61010-2-201
    • Relative Humidity : 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
    • Resistance To Fast Transients : 1 kV EN/IEC 61000-4-4 I/O)
    • Immunity To Microbreaks : 10 ms
    • Storage Altitude : 0-3000 m
    • Pollution Degree : 2
    • Resistance To Conducted Disturbances : 10 V 0.15...80 MHz EN/IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
    • Ip Degree Of Protection : IP20
    • Vibration Resistance : 3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail
    • Resistance To Electrostatic Discharge : 8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2
    • Ambient Air Temperature For Storage : -25-70 °C
    • Electromagnetic Emission : radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz EN/IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz EN/IEC 55011
