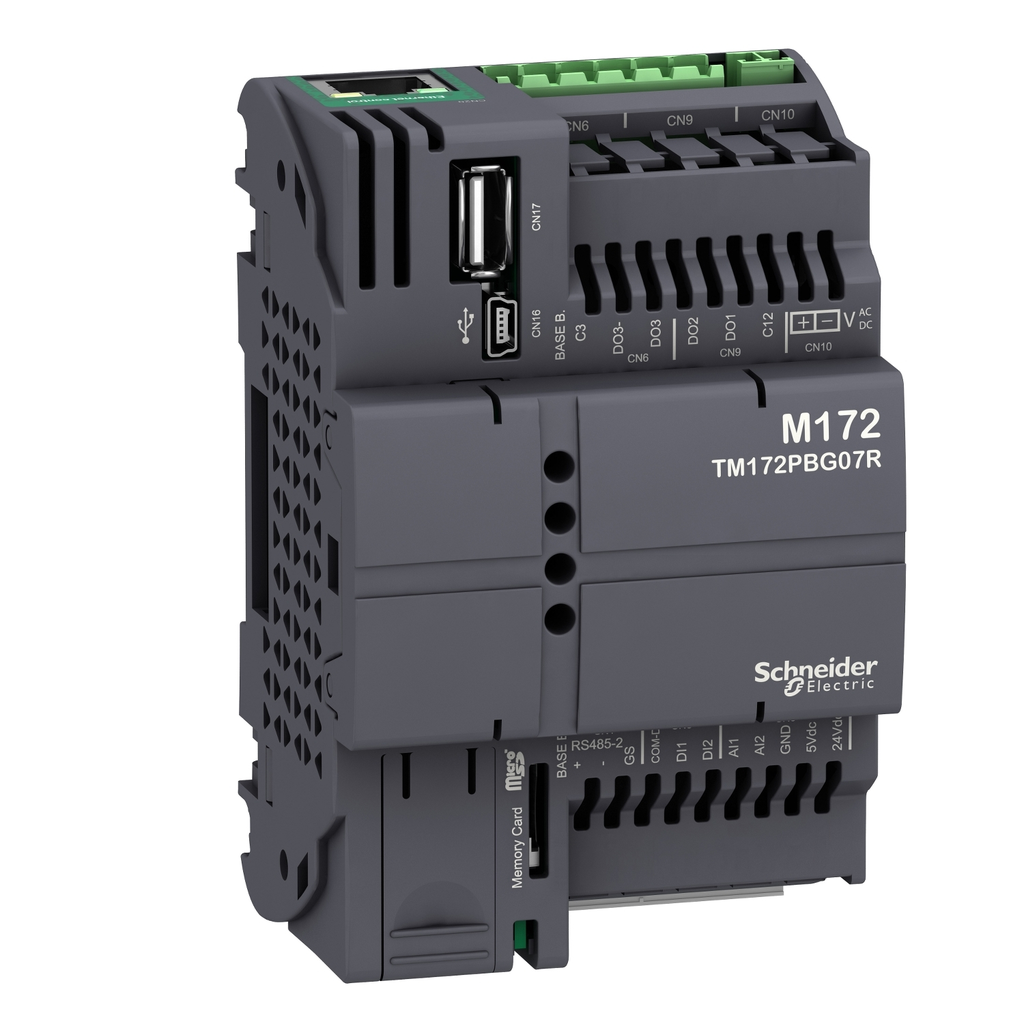

This product is part of the Modicon M171/M172 range, an offer of programmable controllers for HVAC solutions. This programmable controller offers 2 discrete inputs with sink or source (positive/negative) up to 2kHz discrete logic. It is a module with dis

• Power Consumption In W
• 10 W 24 V AC/DC
• US Rated Supply Voltage
• 24 V +/- 10 % AC
• 20...38 V DC
• Discrete Input Current
• 5 mA AC/DC
• Analogue Input Type
• NTC NK103 Beta 3977 temperature probe - 40...137 °C 0.1 °C 10 kOhm at 25 °C)
• NTC NK103 Beta 3977 tem
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Input Output Number
• 2 digital input
• 2 analog input
• 3 digital output
• Communication
• TM171ACAN
• TM171AMB
• TM171ARS485
• Carbon Footprint Of The Installation Phase A5
• 0.0014018787140373777
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.6 kg CO2 eq.
• 0.5684068346257188
• Sensor Power Supply
• 5-5 V DC 40 mA supplied by the controller
• 24-24 V DC 100 mA supplied by the controller
• 24-24 V DC 100 mA supplied by the control
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 26 kg CO2 eq.
• 26.27309725178555
• Discrete Output Number
• 1 relay outputs SPDT with independent common
• 2 relay outputs SPST with same common
• 2 relay outputs SPST with same commo
• Accessories
• TM172ASCTB07
• TM172AP12PM
• Discrete Input Voltage
• 24 V AC/DC
• Analogue Input Number
• 2 configurable by pair
• Discrete Output Current
• 3 A relay SPST
• 3 A relay SPDT
• Realtime Clock
• built-in clock, clock drift <= 30 s/month at -20-60 °C
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 456 kg CO2 eq.
• 455.9411973725249
• Relative Humidity
• 5-95 % non-condensing
• Directives
• 2014/35/EU - low voltage directive
• 2014/30/EU - electromagnetic compatibility
• Auxiliaries
• TM172DCLWT
• TM172DCLWTH
• Measurement Accuracy
• 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit
• 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit
• 0...20 mA 4...20 mA +/- 1 % of full scale
• Number Of Port
• 1 CAN port - screw terminal block
• 1 USB type A - USB type A female
• 1 USB type mini B - USB device port Mini-B
• 1 USB type
• Carbon Footprint Of The Distribution Phase A4
• 0.08288552590788222
• 0.1 kg CO2 eq.
• Discrete Input Logic
• sink or source (positive/negative) up to 2 kHz
• Local Signalling
• 1 LED (red) for programmable
• 1 LED (yellow) for programmable
• 1 LED (green) for programmable
• 1 LED (gr

• Assets
• CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001966_3D-CAD
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 9/23/2025
• HTML Description : Modicon M172 Performance Blind 7 I/Os, Ethernet, Modbus
• Manufacturer : Schneider Electric
• Manufacturing Carbon Footprint : 26.27309725
• Distribution Carbon Footprint : 0.082885526
• Installation Carbon Footprint : 0.001401879
• Use Carbon Footprint : 455.9411974
• End Of Life Carbon Footprint : 0.568406835
• WEEE Applicability : Finished product
• WEEE Scope : In
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1803011EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1929
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Display Type : Without Display
• Package Weight Lbs : 223.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : programmable controllers
• Product Specific Application : HVAC
• Range Of Product : Modicon M171/M172
• Returnability : Yes
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 483 kg CO2 eq.
• Updatability : Yes
• Upgradeability : Yes
• Variant : programmable
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 482.8669889
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP1803011EN
• Pep Verification Date : 9/1/2025
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : No PSR
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 223
• Functional Unit Description : To manage a wide range of HVAC/R and pumping applications with a 100% of the time for 10 years
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 10
• Energy Consumption On Product Lifetime In Kwh : 963.6
• Energy Model Manufacturing A1 A3 : Electricity Mix; Low voltage; 2020; Italy, IT
• Energy Model Installation A5 : No energy used
• Energy Model Use B6 : Electricity Mix; Low voltage; 2020; Asia Pacific, APAC
• Energy Model End Of Life C1 C4 : Global, European and French datasets are used.
• Recyclability Potential In : 0
• Acidification Ap Mole Of H Equiv Total Life Cycle : 2.715351314
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.129830459
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.000554401
• Acidification Ap Mole Of H Equiv Installation A5 : 1.59446E-05
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 2.584562674
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.000387835
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -4.52414E-06
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 5.628737777
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.040257054
• Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
• Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.000240191
• Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
• Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
• Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 5.5869099
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.001330632
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0.000976014
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 477.2382421
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 26.2328312
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.082885526
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.001161688
• Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 450.3542875
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.567076203
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.000852834
• Climate Change Total Kg Co2 Eq Total Life Cycle : 482.8669889
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 26.27309725
• Climate Change Total Kg Co2 Eq Distribution A4 : 0.082885526
• Climate Change Total Kg Co2 Eq Installation A5 : 0.001401879
• Climate Change Total Kg Co2 Eq Maintenance B2 : 0
• Climate Change Total Kg Co2 Eq Repair B3 : 0
• Climate Change Total Kg Co2 Eq Replacement B4 : 0
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 455.9411974
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.568406835
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : 0.00012318
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.006356801
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.006249693
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 3.26531E-09
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : -3.06924E-11
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.000107104
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 8.32773E-11
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -9.08941E-11
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 9684.593619
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 273.9618456
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 1.15709957
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.01361984
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 9408.767115
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.693938159
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -0.010340116
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 923.4364077
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 169.3968366
• Ecotoxicity Fresh Water Ctue Distribution A4 : 0.05438762
• Ecotoxicity Fresh Water Ctue Installation A5 : 0.109429039
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 743.0032262
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 10.87252826
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -0.019016973
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 1.8241E-05
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 7.64108E-07
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 4.78788E-09
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 6.4526E-11
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 1.74694E-05
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 2.62335E-09
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -2.70029E-11
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.017498357
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.01745497
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 4.33867E-05
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.000754654
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 9.45783E-05
• Freshwater Eutrophication Kg P Eq Distribution A4 : 3.11127E-08
• Freshwater Eutrophication Kg P Eq Installation A5 : 5.83995E-09
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.000657057
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 2.98169E-06
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -1.33751E-08
• Hazardous Waste Disposed Of Kg Total Life Cycle : 70.87962291
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 70.74758691
• Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Hazardous Waste Disposed Of Kg Installation A5 : 6.46069E-06
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.132029531
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -2.58812E-05
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 5.28107E-07
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 3.68003E-07
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 1.48308E-12
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 2.43594E-10
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 5.59642E-08
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 1.03894E-07
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -1.17457E-10
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 2.17851E-06
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 5.48494E-07
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 2.85641E-11
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 6.84867E-11
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 1.61689E-06
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 1.30309E-08
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -2.95788E-12
• Impacts Related To Land Use Soil Quality Total Life Cycle : 9.011182227
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.202082255
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 8.809099973
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 367.1032056
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 7.677070423
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.000202026
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 9.2595E-06
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 359.4254966
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.000427292
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -0.000192434
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.312471729
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.014942458
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.000261422
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 7.53904E-06
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.297069432
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.000190878
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -1.37484E-06
• Materials For Energy Recovery Kg Total Life Cycle : 0
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 0.007776356
• Materials For Recycling Kg Manufacturing A1 A3 : 0.007086318
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0.000690038
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 0.977104156
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.284544478
• Net Use Of Fresh Water M3 Distribution A4 : 7.33369E-06
• Net Use Of Fresh Water M3 Installation A5 : 6.58125E-05
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.692022659
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.000463873
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -4.944E-06
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 85.99150279
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 10.95955173
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.002911495
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.030763143
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 74.9352796
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.062996823
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.000514449
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 6.00608E-06
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 3.9728E-06
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 1.27148E-10
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 4.70064E-11
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 2.03247E-06
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 6.34129E-10
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -2.63555E-11
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 1.013562412
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.048006964
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.000727015
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 1.84335E-05
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.964337122
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.000472877
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -2.93028E-06
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.019599659
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.00655505
• Radioactive Waste Disposed Of Kg Distribution A4 : 2.07366E-06
• Radioactive Waste Disposed Of Kg Installation A5 : 2.71775E-08
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.013039395
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 3.11267E-06
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -2.35552E-07
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 4.301459195
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.159357602
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.002868448
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 7.68428E-05
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 4.137206055
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.001950246
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -1.13477E-05
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3.597162566
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.597162566
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 11686.32583
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 293.9493162
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 1.158643666
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.013613978
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 11390.49779
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.706473101
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -0.019897354
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2001.732214
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 19.98747067
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.001544096
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : -5.86255E-06
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1981.73067
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.012534943
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.009557238
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3.597162566
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.597162566
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 9680.996456
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 270.364683
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 1.15709957
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.01361984
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 9408.767115
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.693938159
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.010340116
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.289315498
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.289315498
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.012420679
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2001.442899
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 19.69815517
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.001544096
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : -5.86255E-06
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 1981.73067
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.012534943
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0.002863441
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0.028489134
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.028489134
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Water Use M3 Eq Total Life Cycle : 41.98623934
• Water Use M3 Eq Manufacturing A1 A3 : 12.31132592
• Water Use M3 Eq Distribution A4 : 0.000314982
• Water Use M3 Eq Installation A5 : 0.002826647
• Water Use M3 Eq Maintenance B2 : 0
• Water Use M3 Eq Repair B3 : 0
• Water Use M3 Eq Replacement B4 : 0
• Water Use M3 Eq Operational Energy Use B6 : 29.65184843
• Water Use M3 Eq End Of Life C1 C4 : 0.019923364
• Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -0.00021223
• Air Pollution M3 Total Life Cycle : 0
• Air Pollution M3 Manufacturing A1 A3 : 0
• Air Pollution M3 Distribution A4 : 0
• Air Pollution M3 Installation A5 : 0
• Air Pollution M3 Maintenance B2 : 0
• Air Pollution M3 Repair B3 : 0
• Air Pollution M3 Replacement B4 : 0
• Air Pollution M3 Operational Energy Use B6 : 0
• Air Pollution M3 End Of Life C1 C4 : 0
• Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Water Pollution M3 Total Life Cycle : 0
• Water Pollution M3 Manufacturing A1 A3 : 0
• Water Pollution M3 Distribution A4 : 0
• Water Pollution M3 Installation A5 : 0
• Water Pollution M3 Maintenance B2 : 0
• Water Pollution M3 Repair B3 : 0
• Water Pollution M3 Replacement B4 : 0
• Water Pollution M3 Operational Energy Use B6 : 0
• Water Pollution M3 End Of Life C1 C4 : 0
• Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Packaging Weight In G : 49
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : programmable controllers
• Range Of Product : Modicon M171/M172
• Upgradeability : Yes
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=460702199&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 482.8669889
• Ambient Air Temperature For Operation : -20-60 °C
• Circularity Profile : ENVEOLI1803011EN
• Environmental Disclosure : ENVPEP1803011EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP20
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1803011EN
• Pep Verification Date : 9/1/2025
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : No PSR
• Type Of Verification For The Pep : Independent internal review
• Input Attributes
• Number Of Inputs Outputs : 7
• Specifications
• Country of Origin : Italy
• Batteries & Runtime Attributes
• Removable Battery : YES
