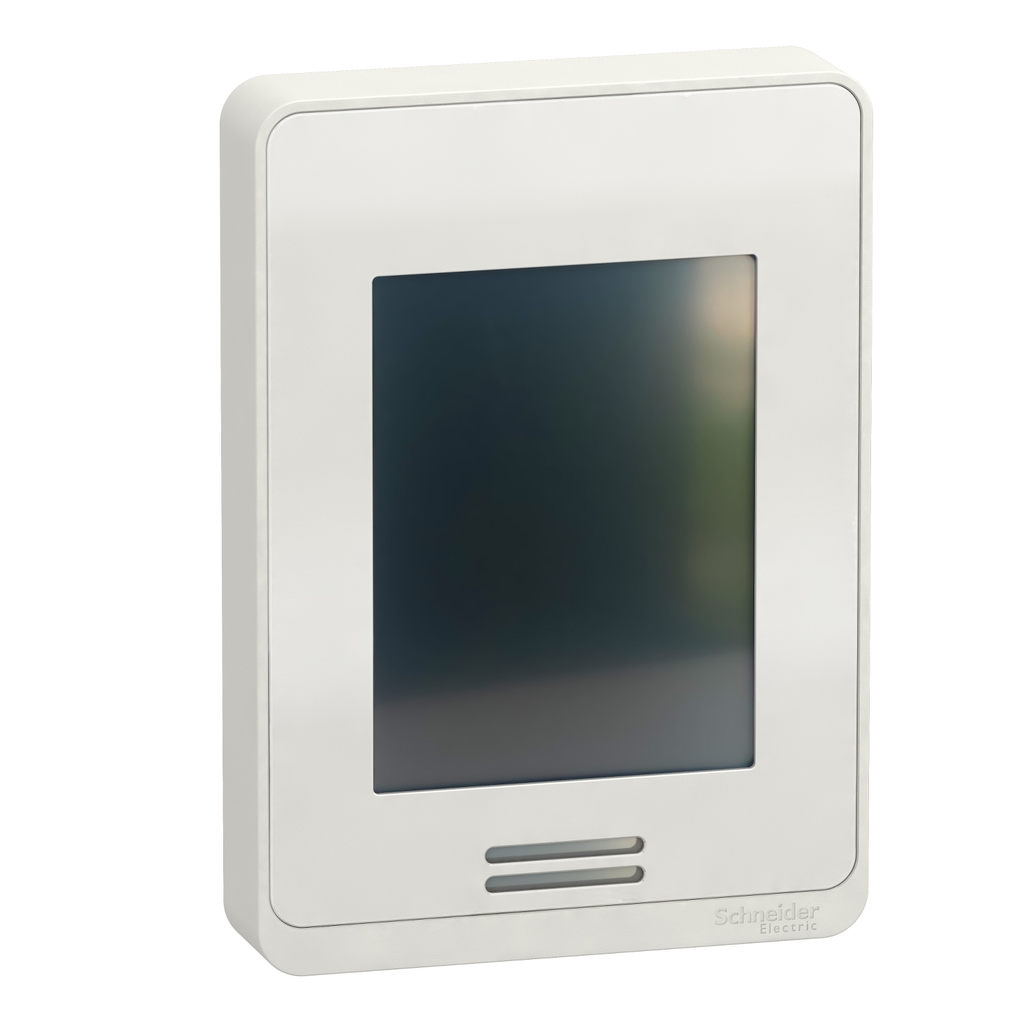

This product is part of the Modicon M171/M172 range, an offer of display modules for HVAC solutions. This display module features an LCD display and color touchscreen with 320 x 240 pixels display resolution. It offers external source supply with rated supply voltage of 24V AC/DC. Its dimensions are 86mm (width) x 25mm (depth) x 120mm (height). It weighs 0.34kg. This product is certified by CE, RCM, EAC and CTUVus. It meets EN 60950-1, EN 55024, CSA C22.2 No 24, EN 55032 and UL 873 standards. It is compatible with logic controller M172 and logic controller M171. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.

• Features
• Modicon M171/M172/M173 logic controllers help to maximize profitability/energy efficiency
• Reduce time to market thanks to the intuitive programming software EcoStruxure Machine Expert - HVAC
• All of the features and functions you need to design and build machines more profitably are already embedded
• Application Function Blocks reduce energy consumption and help to improve system efficiency
• Stay connected everywhere with multiple BMS connectivity and web server embedded
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Color : White
• Conformance Attributes
• Product Certifications : cTUVus, EAC, RCM, CE
• Standards : UL 873, EN 55032, CSA C22.2 No 24, EN 55024, IEC 60950-1
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8, SI
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
• Display Type : LCD display, colour touchscreen
• Power Consumption In W : 3.2 VA, 1.3 W
• Carbon Footprint Of The Distribution Phase A4 : 0.1077883520775149, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.6 kg CO2 eq., 0.5564190424006955
• Carbon Footprint Of The Installation Phase A5 : 0.01809601340449856, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 10 kg CO2 eq., 10.47941534440373
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 54 kg CO2 eq., 53.88395968948022
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Manufacturer : Schneider Electric
• WEEE Applicability : Finished product
• WEEE Scope : In
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1803026EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Display Resolution : 320 x 240 pixels
• Package Weight Lbs : 236.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : display module
• Range Of Product : Modicon M171/M172
• Returnability : Yes
• Supply : external source
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 65 kg CO2 eq.
• Updatability : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Us Rated Supply Voltage2 : 24 V AC/DC
• Medium Desc : Modicon M172 Display Color TouchScreen, Temperature & Humidity built-in sensors
• Country Of Origin 6 : US
• Stocking Flag : Y
• Product Kit Identifier : N
• Pep Code : ENVPEP1803026EN
• Database Version : 2024-01
• Pep Verification Date : 2025-12-12
• Pcr Version : PCR-ed4-2021 09 06
• Psr Version : No PSR
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : To communicate the controlled temperature by means of input probes, pressure and many other typical loads of HVAC installations and a 100% of the time for 10 years.
• Functional Unit Unit : unit
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; Italy, IT
• Energy Model Installation A5 2 : No energy used
• Energy Model Use B6 2 : Electricity origin
• Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
• Upgradeability : Yes
• Global Commercial Status : Commercialised
• Us Rated Supply Voltage5 : 24 V AC/DC
• Environment Attributes Main
• Take Back : No, Nej
• Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
• EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
• Product Compatibility : logic controller M172, logic controller M171
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 65.04567844176665
• Ambient Air Temperature For Operation : 0-50 °C
• Ambient Air Temperature For Storage : -30-50 °C
• Circularity Profile : ENVEOLI1803026EN
• Environmental Disclosure : ENVPEP1803026EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1803026EN
• Pep Verification Date : 2025-12-12
• Pcr Version : PCR-ed4-2021 09 06
• Psr Version : No PSR
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : display module
• Range Of Product : Modicon M171/M172
• Upgradeability : Yes
• Input Attributes
• Analogue Input Type : NTC 10k type 2 temperature probe - 40...50 °C +/- 0.1 °C, NTC 10k temperature probe at 21 °C +/- 0.5 °C, humidity probe 10...90 % without condensation 10...20 % +/- 10 %, humidity probe 10...90 % without condensation 20...80 % +/- 5 %, humidity probe 10...90 % without condensation 80...90 % +/- 10 %
• Specifications
• Country of Origin : Mexico, Sweden
• Depth : 25 mm
