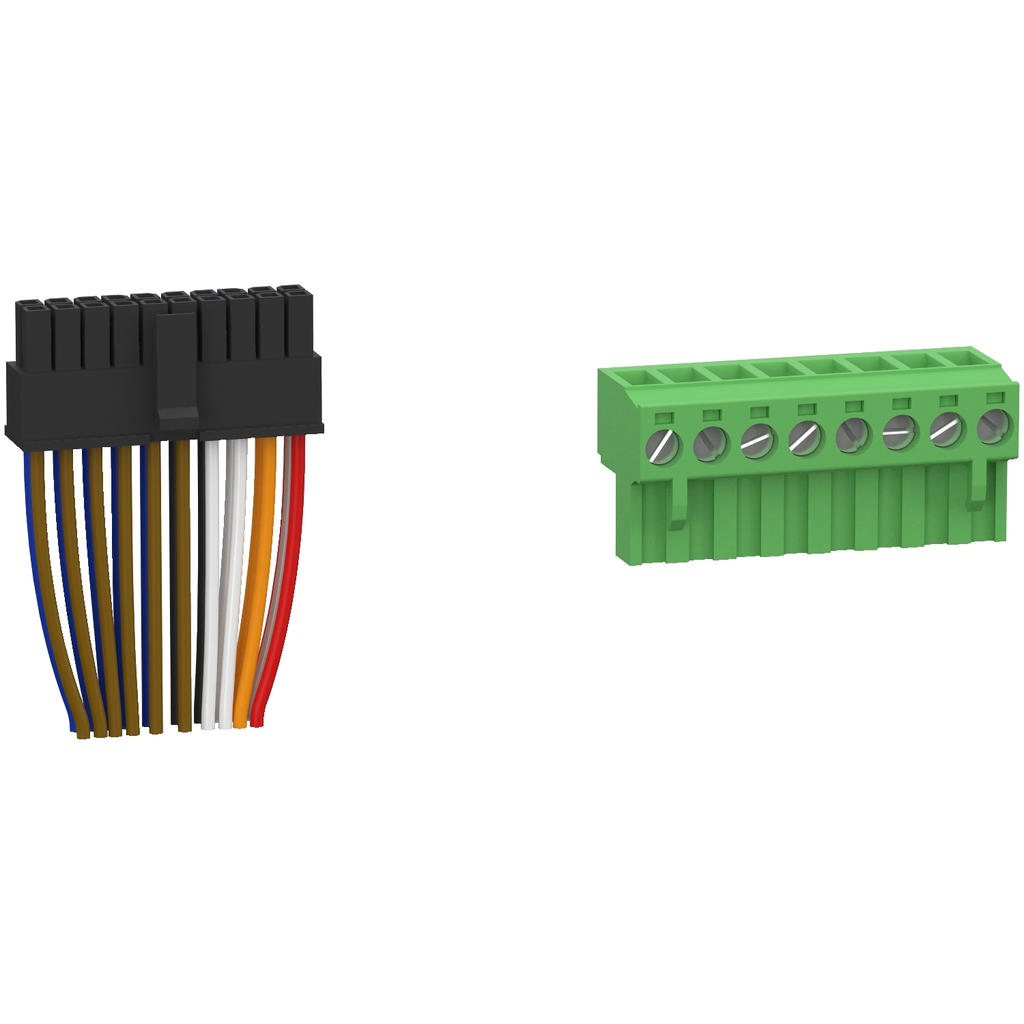

This connector is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This Low voltage connector is an accessory to the M171 optimized controllers. It is a Screw terminal block and a cordset equipped with a 20-pin connector at one end. It allows to connect the digital outputs to the controller. The connected digital outputs are 0-10V. The cable measures 1m. This connection accessory is dedicated to M171 Optimized controllers. It is sold in a 5-piece package. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
