Miniature Circuit Breaker 120/240V 60A

Miniature Circuit Breaker 120/240V 60A

SQDQOU2605258 QOU2605258 785901834847
90.28 / EACH

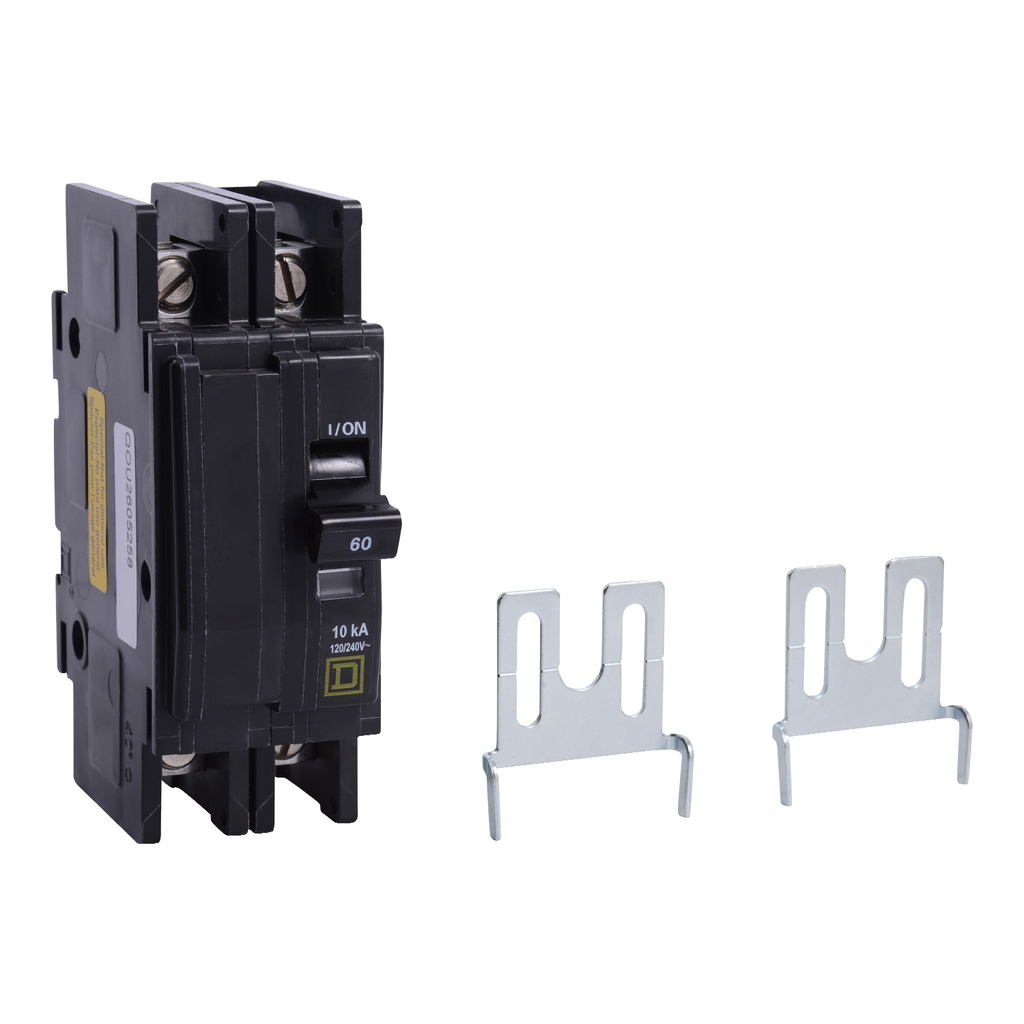

Mayer-Miniature Circuit Breaker 120/240V 60A-1
  • Country of Origin: Mexico
  • Mounting Type: Unit Mount
  • Package Weight: 0.800 lb
  • Voltage: 120/240 V, 48 V
  • Warranty Length: 18 mth
The perfect choice for OEMs thanks to high performances and multiple mounting options
  • Product Description
  • Features
  • Specifications
The perfect choice for OEMs thanks to high performances and multiple mounting options
  • Has lugs at both ends (cable-in/cable-out construction)
  • Automatically open a circuit under overload or short circuit conditions.
  • Are fully tested, UL Listed, and CSA certified for reverse connection without restrictive line/load markings.
  • Provide a means to manually open a circuit.
  • Can be flush-, surface-, or DIN rail-mounted.
  • Feature common tripping of all poles.
  • Have a Visi-Trip® trip indicator.
  • Operate in any position.
  • The Square D® Extreme Duty QOU circuit breaker was developed specifically with the unique challenges of harsh environments in mind. The circuit breaker has specially constructed internal components that make it resistant to the damaging effects of high humidity and salt, which are common in commercial HVAC and wastewater treatment applications. The circuit breaker has passed a 500-hour salt spray test.
  • Main
    • Circuit Breaker Application : HACR and Switching Duty rated
  • Ordering and Shipping Details
    • Discount Schedule : DE2
    • Category : 00900 - QOU BREAKERS & SWITCH
    • Number Of Units In Package : 1
    • Returnability : N
    • Country Of Origin : MX
    • Package Weight(Lbs) : 0.80000000000000004
    • GTIN : 00785901834847
  • Complementary
    • Width : 1.5 in
    • AWG Gauge : AWG 14...AWG 2 (aluminium/copper)
    • Breaking Capacity : 10 kA at: 120/240 V AC || 5 kA at: 48 V DC
    • Height : 4.05 in
    • Poles Description : 2P
    • Mounting Mode : Unit mount
    • Electrical Connection : Box lugs, line side || Quick connect terminals, load side
    • Depth : 2.95 in
    • System Voltage : 120/240 V AC || 48 V DC
    • Line Rated Current : 60 A
  • Offer Sustainability
    • Sustainable Offer Status : Green Premium product
    • Product End Of Life Instructions : Need no specific recycling operations
    • RoHS (Date Code: YYWW) : Compliant  - since  1323  -  Schneider Electric declaration of conformity
    • Product Environmental Profile : Available
  • Environment
    • Product Certifications : UL listed || IEC || CSA
  • Contractual Warranty
    • Warranty Period : 18 months
