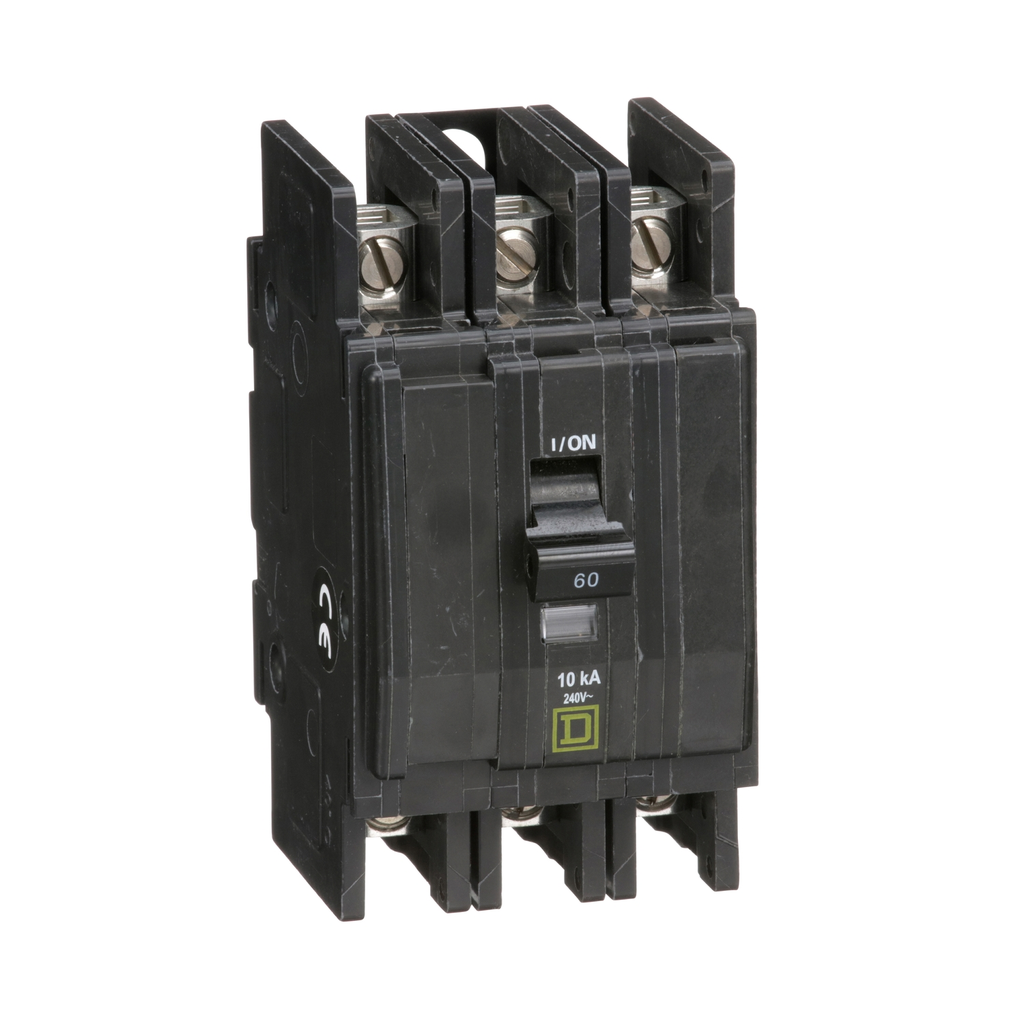

Mini circuit breaker, QOU, 60A, 3 pole, 240VAC, 10kA

Mini circuit breaker, QOU, 60A, 3 pole, 240VAC, 10kA

SQDQOU360 QOU360 785901060291
245.04 / EACH
  • Certifications: CSA, IEC, UL Listed
  • Circuit Breaker Type: Standard
  • Depth: 2.95 in
  • Height: 4.05 in
  • Line Rated Current: 60 A
  • Mounting Type: Unit Mount
  • Short Circuit Current: 10 kA, 5 kA
  • Warranty Length: 18 mth
  • Width: 2.25 in
QO™ and QOU Miniature Circuit Breakers, QOU360, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers provide a means to manually open a circuit.
  • Product Description
  • Specifications
QO™ and QOU Miniature Circuit Breakers, QOU360, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers provide a means to manually open a circuit.
  • Electrical Connection : slotted box lugs, line side || slotted box lugs, load side
  • Product Certifications : IEC || CSA || UL Listed
  • Short-Circuit Current : 10 kA || 5 kA
  • Range Of Product : QOU
  • Poles Description : 3P
  • Breaking Capacity : 10 kA 120/240 V AC || 10 kA 240 V AC || 10 kA 120 V AC || 5 kA 48 V DC
  • Awg Gauge : AWG 14...AWG 2 aluminium/copper
  • Maximum Depth : 2.95 in
  • Warranty : 18 months
  • Maximum Height : 4.05 in
  • Tightening Torque : 45-45 lbf.in (AWG 14...AWG 2)
  • Mounting Mode : unit mount
  • Circuit Breaker Type : standard
  • [Ue] Rated Operational Voltage : 120/240 V AC || 240 V AC || 120 V AC || 48 V DC
  • Line Rated Current : 60 A
  • Maximum Width : 2.25 in
  • Circuit Breaker Application : HACR and Switching Duty rated
  • Product Or Component Type : miniature circuit-breaker
