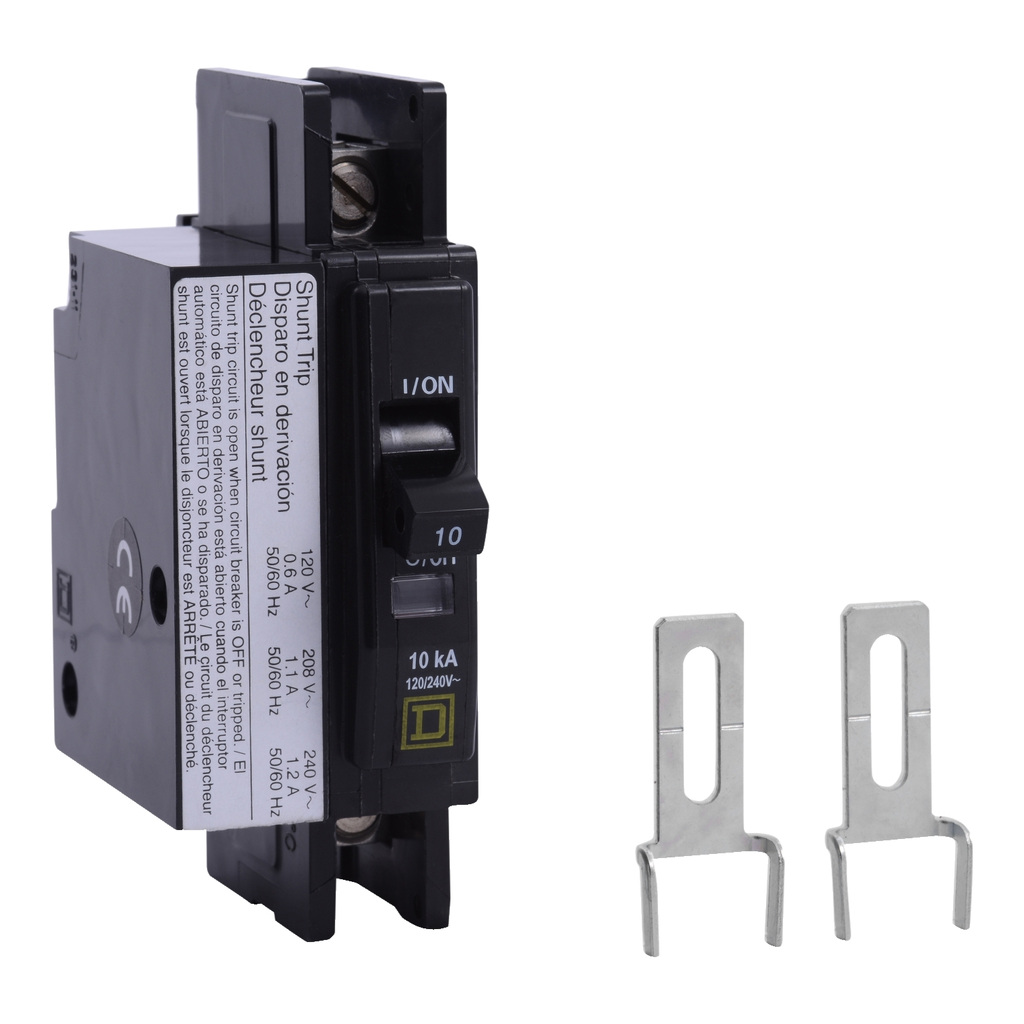

Mini circuit breaker, QOU, 50A, 1 pole, 120/240 VAC, 10kA, shunt trip

Mini circuit breaker, QOU, 50A, 1 pole, 120/240 VAC, 10kA, shunt trip

SQDQOU1501042 QOU1501042 785901585794
196.88 / EACH
  • Certifications: CSA, IEC, UL Listed
  • Circuit Breaker Type: Standard
  • Depth: 2.95 in
  • Height: 4.05 in
  • Line Rated Current: 50 A
  • Mounting Type: Unit Mount
  • Short Circuit Current: 10 kA, 5 kA
  • Warranty Length: 18 mth
  • Width: 1.5 in
The perfect choice for OEMs thanks to high performances and multiple mounting options
  • Specifications
  • Mounting Mode : unit mount
  • Breaking Capacity : 10 kA 120/240 V AC || 10 kA 120 V AC || 5 kA 48 V DC
  • [Ue] Rated Operational Voltage : 120/240 V AC || 120 V AC || 48 V DC
  • Maximum Height : 4.05 in
  • Product Certifications : IEC || UL Listed || CSA
  • Maximum Width : 1.5 in
  • Poles Description : 1P
  • Short-Circuit Current : 10 kA || 5 kA
  • Awg Gauge : AWG 14...AWG 2 aluminium/copper
  • Tightening Torque : 45-45 lbf.in (AWG 14...AWG 2)
  • Circuit Breaker Application : HACR and Switching Duty rated
  • Maximum Depth : 2.95 in
  • Electrical Connection : slotted box lugs, line side || slotted box lugs, load side
  • Circuit Breaker Type : standard
  • Warranty : 18 months
  • Range Of Product : QOU
  • Line Rated Current : 50 A
  • Accessory / Separate Part Type : shunt trip 12/24 V AC/DC
  • Product Or Component Type : miniature circuit-breaker
