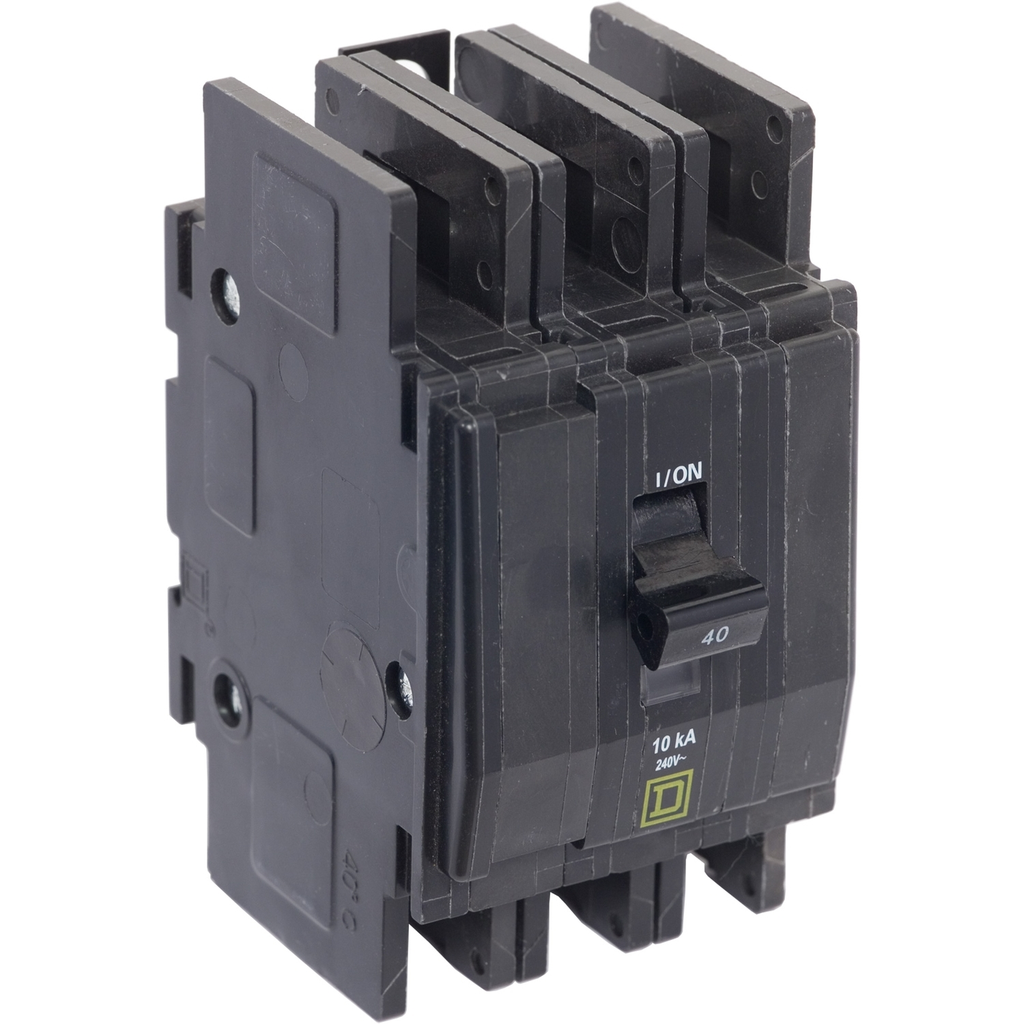

QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a cir

• Carbon Footprint Of The Installation Phase A5
• 0.0001268947
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.1 kg CO2 eq.
• 0.0928661881
• Ue Rated Operational Voltage
• 120/240 V AC
• Electrical Connection
• slotted box lugs, line side
• slotted box lugs, load side
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 3 kg CO2 eq.
• 2.9683581721
• Accessories
• QOU2PAFLA
• HLO1
• BCV
• QOUECB
• QOULFSC1B
• QOU2DTILA
• QOUMFS1
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 17 kg CO2 eq.
• 17.3042434783
• Persona Type Ids
• EU
• LC
• OM
• Carbon Footprint Of The Distribution Phase A4
• 0.0655439073
• 0.1 kg CO2 eq.
• Tightening Torque
• 45-45 lbf.in (AWG 14...AWG 2)
• AWG Gauge
• AWG 14...AWG 2 aluminium/copper
• Product Certifications
• IEC
• UL Listed
• CSA

• Complementary Attributes
• Line Rated Current : 30 A
• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : QO MCBs are designed to sheild electronics from short-circuits and overcurrent
• B2B Bullet Point 2 : Provides instaneous and time-delayed overcurrent protection
• B2B Bullet Point 3 : Idle application for OEMs due to their high performances and multiple mounting options
• B2B Bullet Point 4 : Product has been verified by UL and CSA to adhere to the electrical specs stated on the data sheet
• Local Data Status : Publishable
• Local Publishable Date : 2025-05-31
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 2.9683581721
• Distribution Carbon Footprint : 0.0655439073
• Installation Carbon Footprint : 0.0001268947
• Use Carbon Footprint : 17.3042434783
• End Of Life Carbon Footprint : 0.0928661881
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 2534
• ROHS Eur Full Compliance Status : Compliant
• ROHS Eur Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• H And D Domain : Safety
• H And D Subrange : INDUS
• H And D Enrichment Assignment : no
• H And D Enrichment Function : MCB
• H And D Enrichment Class 3 : Circuit Breakers
• H And D Enrichment Class 4 : MCB UL 3P
• Circuit Breaker Application : HACR rated
• Circuit Breaker Type : standard
• Energy Efficiency Optimized : False
• Halogen Free Status : Halogen free product
• Mounting Mode : unit mount
• Package Weight Lbs : 508.0 g
• Poles Description : 3P
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : QOU
• Returnability : Yes
• Short Circuit Current : 22 kA
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 20 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 20.4311386405
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : QOU
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=402835&lang=en-us
• Take Back : No
• Halogene Performance : Halogen free product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 20.4311386405
• Environmental Disclosure : ENVPEP2111016
• Eu Rohs Directive : Compliant
• Halogen Content Performance : Halogen free product
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Height : 4.05 in
• Width : 2.25 in
• Depth : 2.95 in
