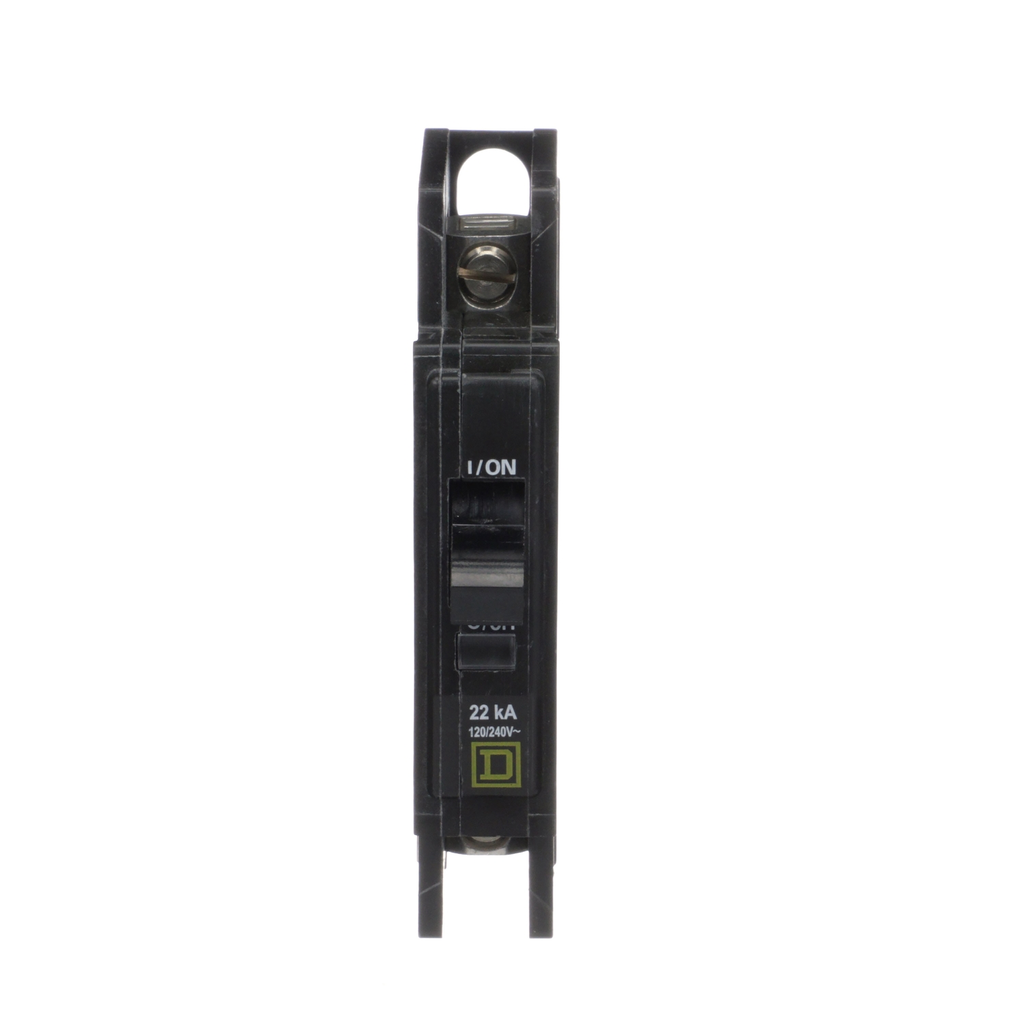

Mini circuit breaker, QOU, 30A, 1 pole, 120/240 VAC, 22kA

Mini circuit breaker, QOU, 30A, 1 pole, 120/240 VAC, 22kA

SQDQOU130VH QOU130VH 785901470663
86.84 / EACH
  • Certifications: CSA, IEC, UL Listed
  • Circuit Breaker Type: Standard
  • Depth: 2.95 in
  • Height: 4.05 in
  • Line Rated Current: 30 A
  • Mounting Type: Unit Mount
  • Short Circuit Current: 22 kA
  • Warranty Length: 18 mth
  • Width: 0.75 in
QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This one pole QOU miniature circuit breaker is rated as 30A, 120/240 VAC. This unit provides 22 kA breaking capacity. A full line of accessories are available for these circuit breakers. The slotted box lugs will accept one 14 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a maximum height of 4.05 inches, a maximum width of 0.75 inch and maximum depth of 2.95 inches. QOU circuit breakers are UL Listed and CSA Certified.
  • Product Description
  • Specifications
QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This one pole QOU miniature circuit breaker is rated as 30A, 120/240 VAC. This unit provides 22 kA breaking capacity. A full line of accessories are available for these circuit breakers. The slotted box lugs will accept one 14 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a maximum height of 4.05 inches, a maximum width of 0.75 inch and maximum depth of 2.95 inches. QOU circuit breakers are UL Listed and CSA Certified.
  • Poles Description : 1P
  • Breaking Capacity : 22 kA 120/240 V AC
  • Tightening Torque : 45-45 lbf.in (AWG 14...AWG 2)
  • Warranty : 18 months
  • Short-Circuit Current : 22 kA
  • [Ue] Rated Operational Voltage : 120/240 V AC
  • Awg Gauge : AWG 14...AWG 2 aluminium/copper
  • Line Rated Current : 30 A
  • Electrical Connection : slotted box lugs, line side || slotted box lugs, load side
  • Range Of Product : QOU
  • Mounting Mode : unit mount
  • Maximum Width : 0.75 in
  • Product Or Component Type : miniature circuit-breaker
  • Circuit Breaker Type : standard
  • Maximum Depth : 2.95 in
  • Maximum Height : 4.05 in
  • Product Certifications : CSA || IEC || UL Listed
