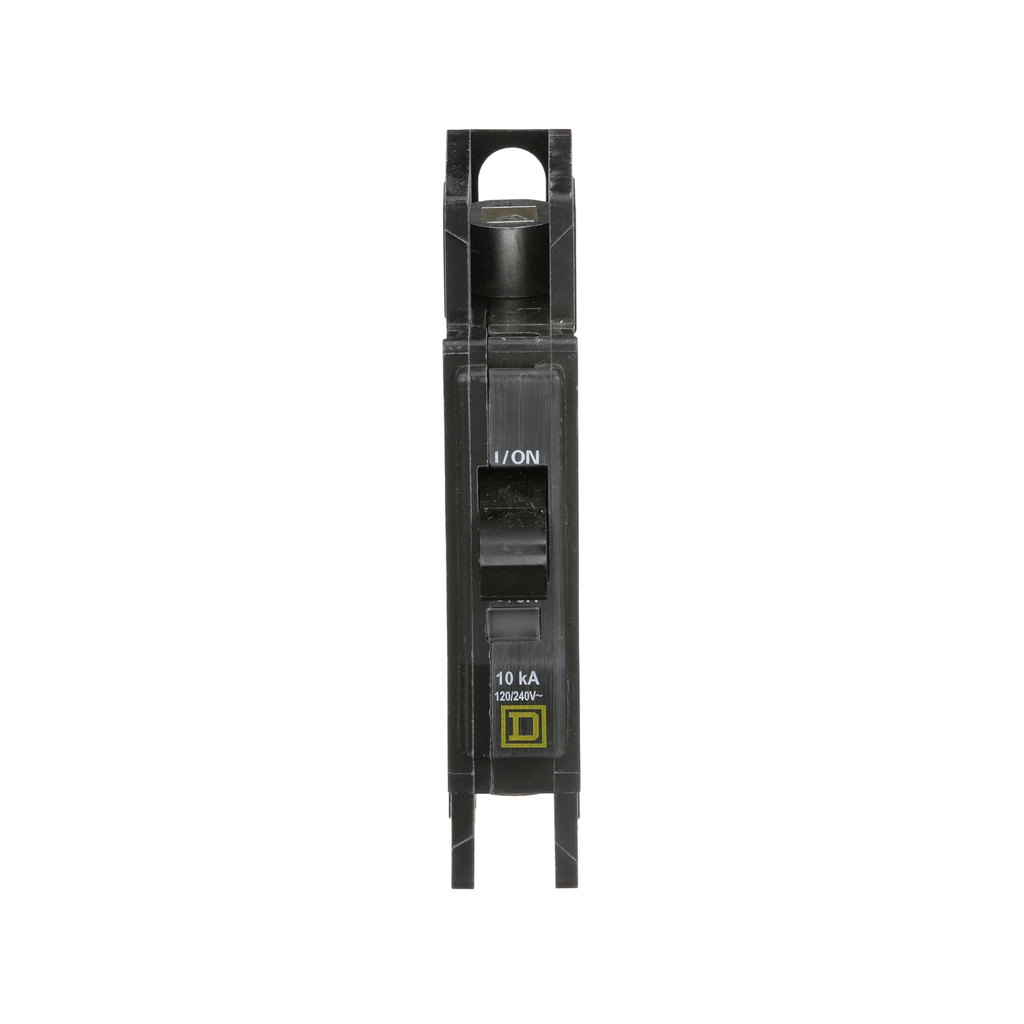

Mini circuit breaker, QOU, 30A, 1 pole, 120/240 VAC, 10kA, field reversible lugs

Mini circuit breaker, QOU, 30A, 1 pole, 120/240 VAC, 10kA, field reversible lugs

SQDQOUR130 QOUR130 785901079279
41.70 / EACH
  • Certifications: CSA, IEC, UL Listed
  • Circuit Breaker Type: Standard
  • Depth: 2.95 in
  • Height: 4.05 in
  • Line Rated Current: 30 A
  • Mounting Type: Unit Mount
  • Short Circuit Current: 10 kA, 5 kA
  • Warranty Length: 18 mth
  • Width: 0.75 in
QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This one pole QOU miniature circuit breaker is rated as 30A, 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. A full line of accessories are available for these circuit breakers. The rotatable lugs will accept one 14 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a maximum height of 4.05 inches, a maximum width of 0.75 inch and maximum depth of 2.95 inches. QOU circuit breakers are UL Listed and CSA Certified.
  • Product Description
  • Specifications
QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This one pole QOU miniature circuit breaker is rated as 30A, 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. A full line of accessories are available for these circuit breakers. The rotatable lugs will accept one 14 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a maximum height of 4.05 inches, a maximum width of 0.75 inch and maximum depth of 2.95 inches. QOU circuit breakers are UL Listed and CSA Certified.
  • Tightening Torque : 45-45 lbf.in (AWG 14...AWG 2)
  • Range Of Product : QOU
  • Breaking Capacity : 10 kA 120/240 V AC || 10 kA 120 V AC || 5 kA 48 V DC
  • Maximum Height : 4.05 in
  • Short-Circuit Current : 10 kA || 5 kA
  • Maximum Depth : 2.95 in
  • Product Or Component Type : miniature circuit-breaker
  • Product Certifications : UL Listed || CSA || IEC
  • Electrical Connection : slotted box lugs, line side || slotted box lugs, load side
  • Poles Description : 1P
  • Warranty : 18 months
  • Circuit Breaker Type : standard
  • Maximum Width : 0.75 in
  • Accessory / Separate Part Type : rotatable fixing lug
  • Mounting Mode : unit mount
  • [Ue] Rated Operational Voltage : 120/240 V AC || 120 V AC || 48 V DC
  • Awg Gauge : AWG 14...AWG 2 aluminium/copper
  • Circuit Breaker Application : HACR and Switching Duty rated
  • Line Rated Current : 30 A
