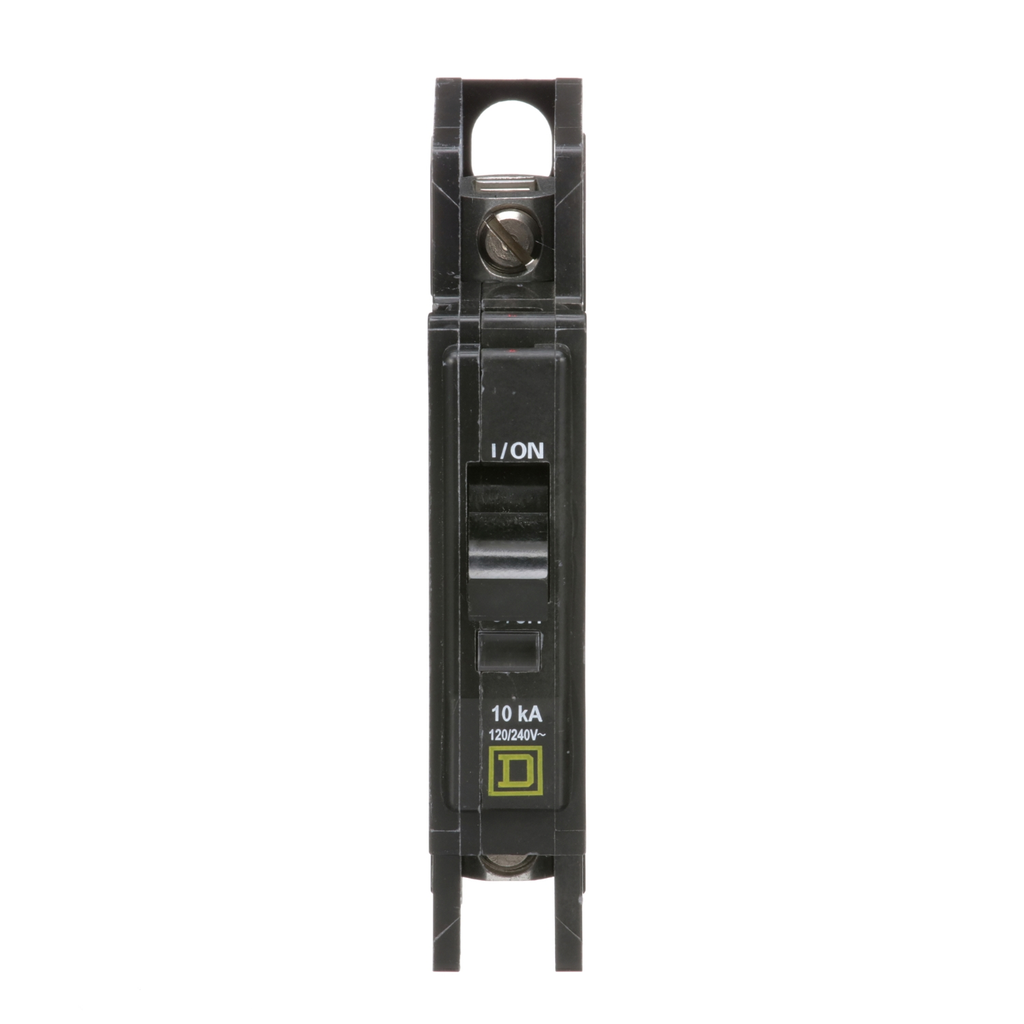

QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This one pole QOU miniature circuit breaker is rated as 30A, 240VAC. This circuit breaker provides 10 kA breaking capacity. QOU circuit breakers have been verified to adhere to their datasheet specifications by UL and CSA. Supplied in bulk packaging for streamlined inventory management and optimized handling in high-volume installations.

• Carbon Footprint Of The Installation Phase A5
• 0.0000407894
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0 kg CO2 eq.
• 0.0298511781
• Electrical Connection
• slotted box lugs, line side
• slotted box lugs, load side
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 1 kg CO2 eq.
• 0.9541576988
• Accessories
• HLO1
• QOU1PAFLA
• BCV
• QOU2DTILA
• QOUMF1B
• QOUECB
• QOU14100BAFB
• QOU14100JBAF
• QOUFR
• Persona Type Names
• End User
• Original Equipment Manufacturer
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 17 kg CO2 eq.
• 17.3042434783
• Persona Type Ids
• EU
• OM
• Carbon Footprint Of The Distribution Phase A4
• 0.0210686245
• 0 kg CO2 eq.
• Tightening Torque
• 45-45 lbf.in (AWG 14...AWG 2)
• AWG Gauge
• AWG 14...AWG 2 aluminium/copper
• UE Rated Operational Voltage
• 120/240 V AC
• 120 V AC
• 48 V DC

• Important Information Attributes
• B2B Bullet Point 1 : 1, 2, or 3 pole constructions
• B2B Bullet Point 2 : Overcurrent protection and switching on AC and DC
• B2B Bullet Point 3 : Visi-Trip trip indicator
• B2B Bullet Point 4 : Resistant to damaging high humidity and salt
• B2B Bullet Point 5 : UL Listed and CSA Certified
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-18
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 0.9541576988
• Distribution Carbon Footprint : 0.0210686245
• Installation Carbon Footprint : 0.0000407894
• Use Carbon Footprint : 17.3042434783
• End Of Life Carbon Footprint : 0.0298511781
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 2534
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• H And D Domain : Safety
• H And D Subrange : INDUS
• H And D Enrichment Assignment : no
• H And D Enrichment Function : MCB
• H And D Enrichment Class 3 : Circuit Breakers
• H And D Enrichment Class 4 : MCB UL 1P
• Energy Efficiency Optimized : False
• Halogen Free Status : Halogen free product
• Package Weight Lbs : 163.293 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : QOU
• Returnability : Yes
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 18 kg CO2 eq.
• Type Of Packing : bulk
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 18.3093617691
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2111016
• Pep Verification Date : 2021-11-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 163.293
• Functional Unit Description : Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120V and rated current 20A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1p& 10- Rated breaking capacity 10KA
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 20
• Energy Consumption On Product Lifetime In Kwh : 24.8784
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• Energy Model Manufacturing A1 A3 : Energy model used: Mexico
• Energy Model Installation A5 : Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
• Energy Model Use B6 : Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
• Energy Model End Of Life C1 C4 : Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0005561155
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0005559548
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000008
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0000001594
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000005
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 205.5040571885
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 16.0084682358
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.2959917825
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.0005250524
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 189.0122898551
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.1867822627
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.0000022988
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0000002161
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0.0000020827
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Hazardous Waste Disposed Of Kg Total Life Cycle : 6.392602417
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 5.72889179
• Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Hazardous Waste Disposed Of Kg Installation A5 : 0.0000000074
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.3946612174
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.2690494023
• Materials For Energy Recovery Kg Total Life Cycle : 0.0049420764
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0.0049420764
• Materials For Recycling Kg Total Life Cycle : 0.0621522119
• Materials For Recycling Kg Manufacturing A1 A3 : 0.0152956688
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0.0007276171
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0.0461289261
• Net Use Of Fresh Water M3 Total Life Cycle : 0.2469707674
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.2200750383
• Net Use Of Fresh Water M3 Distribution A4 : 0.0000018855
• Net Use Of Fresh Water M3 Installation A5 : 0.0000000054
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.0268705159
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0000233222
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 2.911067655
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.7338234607
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0007485546
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0000168048
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 2.1757692754
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0007095595
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000012217
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000001096
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.000001111
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000011
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0008545108
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0003776541
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000005331
• Radioactive Waste Disposed Of Kg Installation A5 : 0.0000000014
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.0004751855
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0000011365
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 222.0008811338
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 24.5476619605
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.2974893814
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0005291276
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 196.9231304348
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.2320702295
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 237.000922123
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 25.3799813489
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.2978925811
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.0005302652
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 211.0902028986
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.2323150293
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 15.0035981429
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.8325785882
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0003969933
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0000011394
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 14.1703652174
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0002562046
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2.6114380809
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.6114380809
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 219.3901630523
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 21.9369438791
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.2974893814
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0005291276
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 196.9231304348
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.2320702295
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.0048877884
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.0048877884
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 14.9987165465
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.8276969917
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0003969933
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0000011394
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 14.1703652174
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0002562046
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0.0028923819
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.0028923819
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Air Pollution M3 Total Life Cycle : 1586.1573377093
• Air Pollution M3 Manufacturing A1 A3 : 217.9726398173
• Air Pollution M3 Distribution A4 : 0.8962409414
• Air Pollution M3 Installation A5 : 0.0017238227
• Air Pollution M3 Operational Energy Use B6 : 1365.5872463768
• Air Pollution M3 End Of Life C1 C4 : 1.6994867511
• Water Pollution M3 Total Life Cycle : 960.9758592625
• Water Pollution M3 Manufacturing A1 A3 : 78.6628221926
• Water Pollution M3 Distribution A4 : 3.4646374539
• Water Pollution M3 Installation A5 : 0.0061410195
• Water Pollution M3 Operational Energy Use B6 : 876.6956521739
• Water Pollution M3 End Of Life C1 C4 : 2.1466064225
• Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0.0197805961
• Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.0030437335
• Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0.0048878025
• Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.0040016131
• Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.0000961962
• Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.0000001696
• Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 0.0156339942
• Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.000048623
• Global Warming Kg Equivalent Co2 Total Life Cycle : 18.3093617691
• Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 0.9541576988
• Global Warming Kg Equivalent Co2 Distribution A4 : 0.0210686245
• Global Warming Kg Equivalent Co2 Installation A5 : 0.0000407894
• Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 17.3042434783
• Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 0.0298511781
• Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.0002937022
• Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.0000068646
• Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.0000000127
• Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0.0027381716
• Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.0000049824
• Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.0007247371
• Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.0000221558
• Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.0000000454
• Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.0041263965
• Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.0000144677
• General Attributes
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : QOU
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=401953&lang=en-us
• Take Back : No
• Halogene Performance : Halogen free product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 18.3093617691
• Environmental Disclosure : ENVPEP2111016
• EU ROHS Directive : Compliant
• Halogen Content Performance : Halogen free product
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2111016
• Pep Verification Date : 2021-11-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
