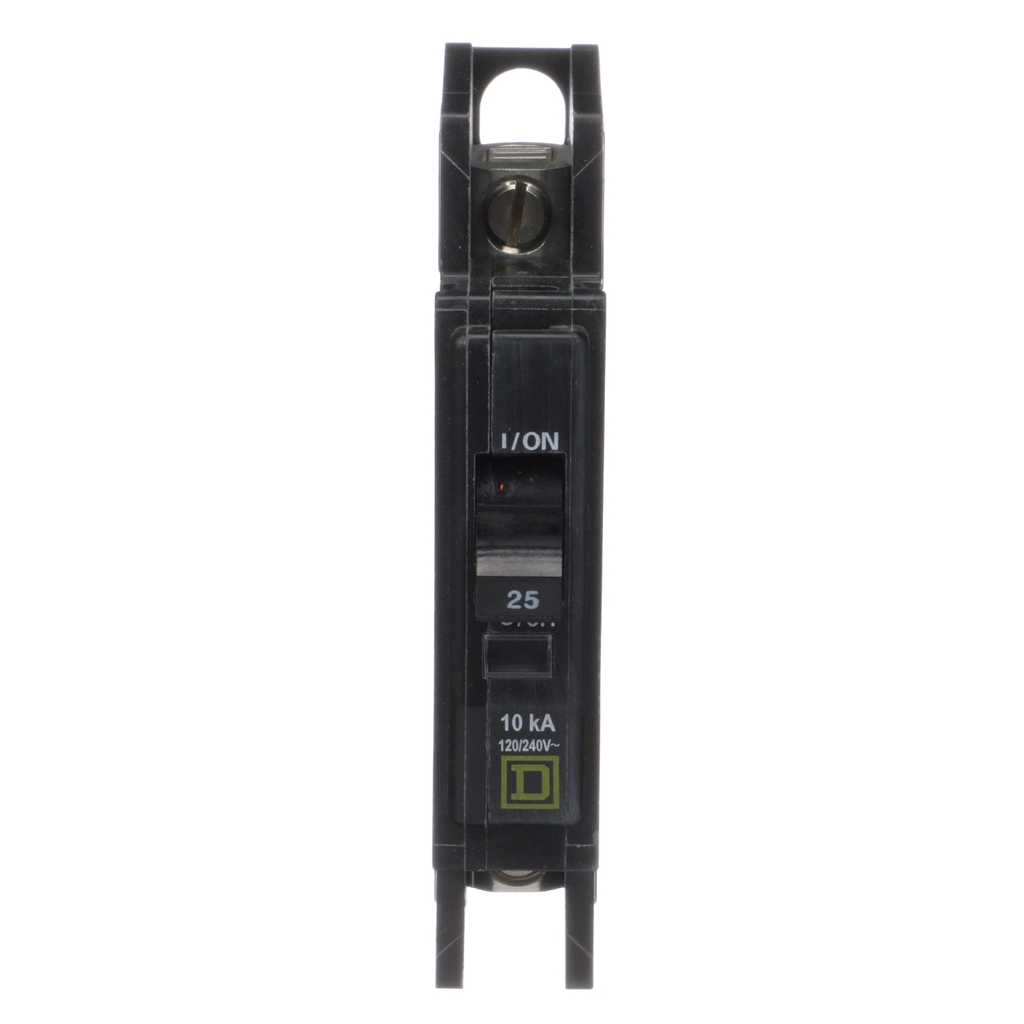

Mini circuit breaker, QOU, 25A, 1 pole, 120/240 VAC, 10kA

Mini circuit breaker, QOU, 25A, 1 pole, 120/240 VAC, 10kA

SQDQOU125 QOU125 785901489085
34.56 / EACH
  • Certifications: CSA, IEC, UL Listed
  • Circuit Breaker Type: Standard
  • Depth: 2.95 in
  • Height: 4.05 in
  • Line Rated Current: 25 A
  • Mounting Type: Unit Mount
  • Short Circuit Current: 10 kA, 5 kA
  • Warranty Length: 18 mth
  • Width: 0.75 in
QO™ and QOU Miniature Circuit Breakers, QOU125, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.
  • Product Description
  • Specifications
QO™ and QOU Miniature Circuit Breakers, QOU125, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.
  • Warranty : 18 months
  • [Ue] Rated Operational Voltage : 120/240 V AC || 120 V AC || 48 V DC
  • Awg Gauge : AWG 14...AWG 2 aluminium/copper
  • Poles Description : 1P
  • Mounting Mode : unit mount
  • Breaking Capacity : 10 kA 120/240 V AC || 10 kA 120 V AC || 5 kA 48 V DC
  • Short-Circuit Current : 10 kA || 5 kA
  • Maximum Width : 0.75 in
  • Maximum Depth : 2.95 in
  • Maximum Height : 4.05 in
  • Range Of Product : QOU
  • Product Certifications : UL Listed || IEC || CSA
  • Product Or Component Type : miniature circuit-breaker
  • Tightening Torque : 45-45 lbf.in (AWG 14...AWG 2)
  • Electrical Connection : slotted box lugs, line side || slotted box lugs, load side
  • Circuit Breaker Application : HACR and Switching Duty rated
  • Line Rated Current : 25 A
  • Circuit Breaker Type : standard
