SQUARE D

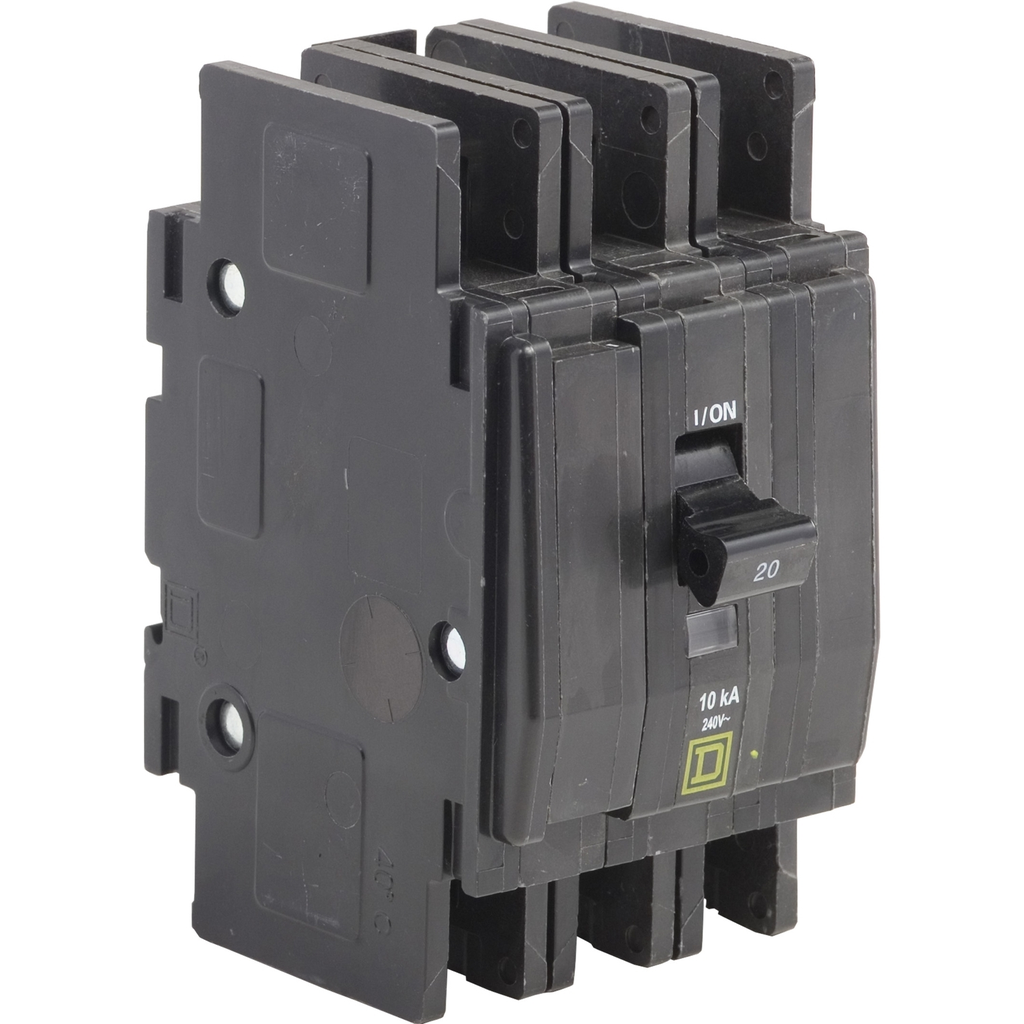

Mini circuit breaker, QOU, 20A, 3 pole, 240VAC, 10kA, ring terminal

MINIATURE CIRCUIT BREAKER 240V

SQDQOU3205283 QOU3205283 785901612933
333.54 / EACH
http://schema.org/OutOfStock
Mini circuit breaker, QOU, 20A, 3 pole, 240VAC, 10kA, ring terminal
  • Country of Origin: USA
  • Depth: 2.95 in
  • Height: 4.05 in
  • Warranty Length: 18 mth
  • Width: 2.25 in
QO™ and QOU Miniature Circuit Breakers, QOU3205283, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit. Comes with factory installed ring tongue terminal.
QTY
  • Product Description
  • Specifications
QO™ and QOU Miniature Circuit Breakers, QOU3205283, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit. Comes with factory installed ring tongue terminal.
  • Environment
    • Product Certifications : CSA || UL Listed || IEC
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Environmental Disclosure : ENVPEP2111016
    • Halogen Content Performance : Halogen free product
    • Packaging Without Single Use Plastic : Yes
    • Scip Number : af42fb01-813d-40c0-ae28-b8b3299dbc99
    • Circularity Profile : N/A
    • Take-Back : No
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 20.4033659024
  • Complementary
    • Height : 4.05 in
    • Tightening Torque : 45-45 lbf.in (AWG 14...AWG 2)
    • Electrical Connection : ring tongue, line side || ring tongue, load side
    • Mounting Mode : unit mount
    • Line Rated Current : 20 A
    • Awg Gauge : AWG 14...AWG 2 aluminium/copper
    • Width : 2.25 in
    • Depth : 2.95 in
    • [Ue] Rated Operational Voltage : 120/240 V AC || 240 V AC || 120 V AC || 48 V DC
  • Specifications
    • Country of Origin : United States
    • Width : 2.25 in
    • Height : 4.05 in
    • Range Of Product : QOU
    • Circuit Breaker Type : standard
    • Product Or Component Type : miniature circuit-breaker
    • Circuit Breaker Application : HACR rated
