SQUARE D

Mini circuit breaker, QOU, 20A, 1 pole, 120/240 VAC, 10kA, field reversible lugs, ring terminal, China certified

MINIATURE CIRCUIT BREAKER 120/

SQDQOUR1205283CCC QOUR1205283CCC 785901918073
64.67 / EACH
http://schema.org/OutOfStock

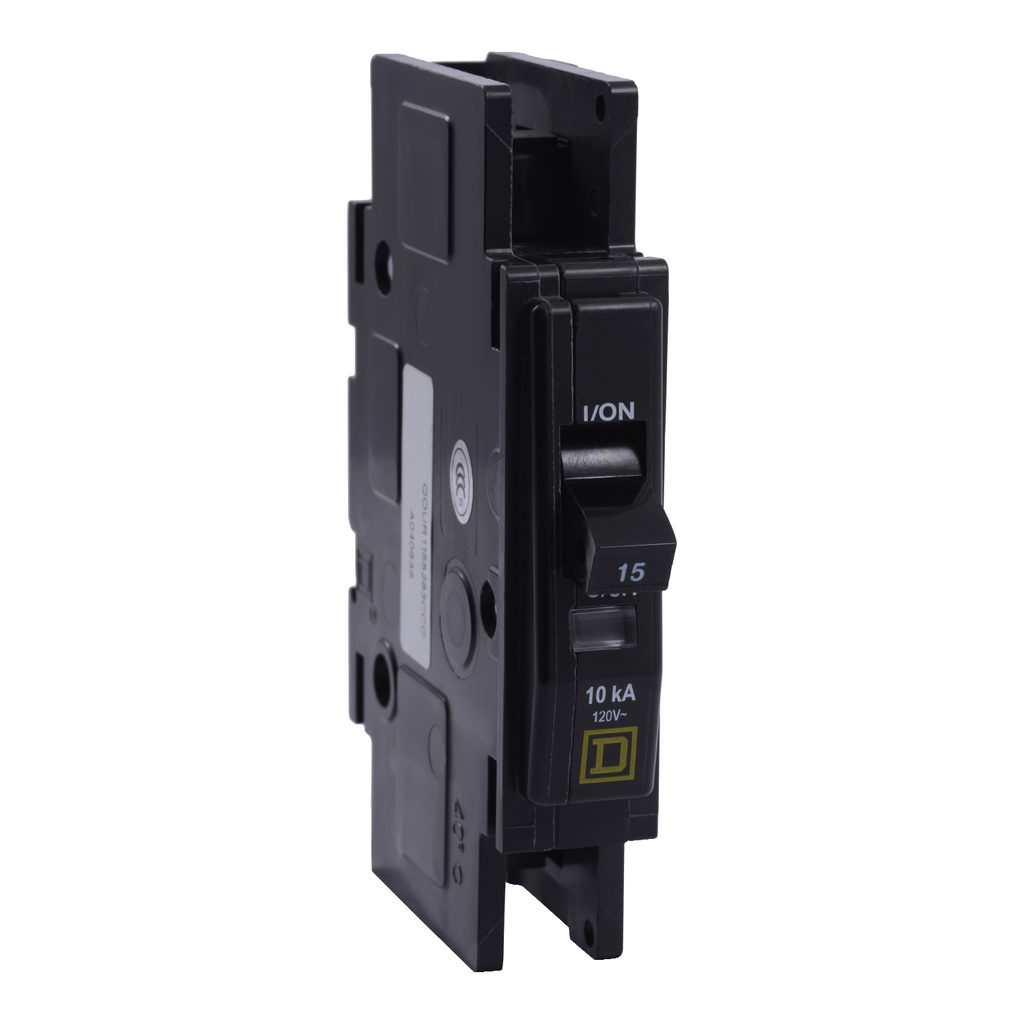

Mayer-DDS-Mini circuit breaker, QOU, 20A, 1 pole, 120/240 VAC, 10kA, field reversible lugs, ring terminal, China certified-1
  • Country of Origin: Mexico
  • Depth: 2.95 in
  • Height: 4.05 in
  • Warranty Length: 18 mth
  • Width: 0.75 in
QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This one pole QOU miniature circuit breaker is rated as 20A, 120/240VAC. This unit provides 10 kA breaking capacity. A full line of accessories are available for these circuit breakers. The slotted box lugs will accept one 14 AWG to 2 AWG copper or aluminum wire. This unit includes field reversible lugs and a ring terminal. QOU circuit breakers are UL Listed, CSA Certified, and China certified.
QTY
  • Product Description
  • Features
  • Specifications
QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This one pole QOU miniature circuit breaker is rated as 20A, 120/240VAC. This unit provides 10 kA breaking capacity. A full line of accessories are available for these circuit breakers. The slotted box lugs will accept one 14 AWG to 2 AWG copper or aluminum wire. This unit includes field reversible lugs and a ring terminal. QOU circuit breakers are UL Listed, CSA Certified, and China certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Halogen Content Performance : Halogen free product
    • Packaging Without Single Use Plastic : Yes
    • Toxic Heavy Metal Free : Yes
    • Scip Number : af42fb01-813d-40c0-ae28-b8b3299dbc99
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant
  • Complementary
    • Height : 4.05 in
    • Tightening Torque : 45-45 lbf.in (AWG 14...AWG 2)
    • Electrical Connection : ring tongue, line side || ring tongue, load side
    • Mounting Mode : unit mount
    • Line Rated Current : 20 A
    • Awg Gauge : AWG 14...AWG 2 aluminium/copper
    • Width : 0.75 in
    • Depth : 2.95 in
    • [Ue] Rated Operational Voltage : 120/240 V AC || 120 V AC || 48 V DC
  • Specifications
    • Country of Origin : Mexico
    • Width : 0.75 in
    • Height : 4.05 in
    • Range Of Product : QOU
    • Circuit Breaker Type : standard
    • Product Or Component Type : miniature circuit-breaker
    • Circuit Breaker Application : HACR rated
  • Contractual warranty
    • Warranty : 18 months
