SQUARE D

Mini circuit breaker, QOU, 20A, 1 pole, 120/240 VAC, 10kA, field reversible lugs

MINI CIRCUITBREAKR 120240V20A

SQDQOUR120 QOUR120 785901079262
45.70 / EACH
http://schema.org/OutOfStock

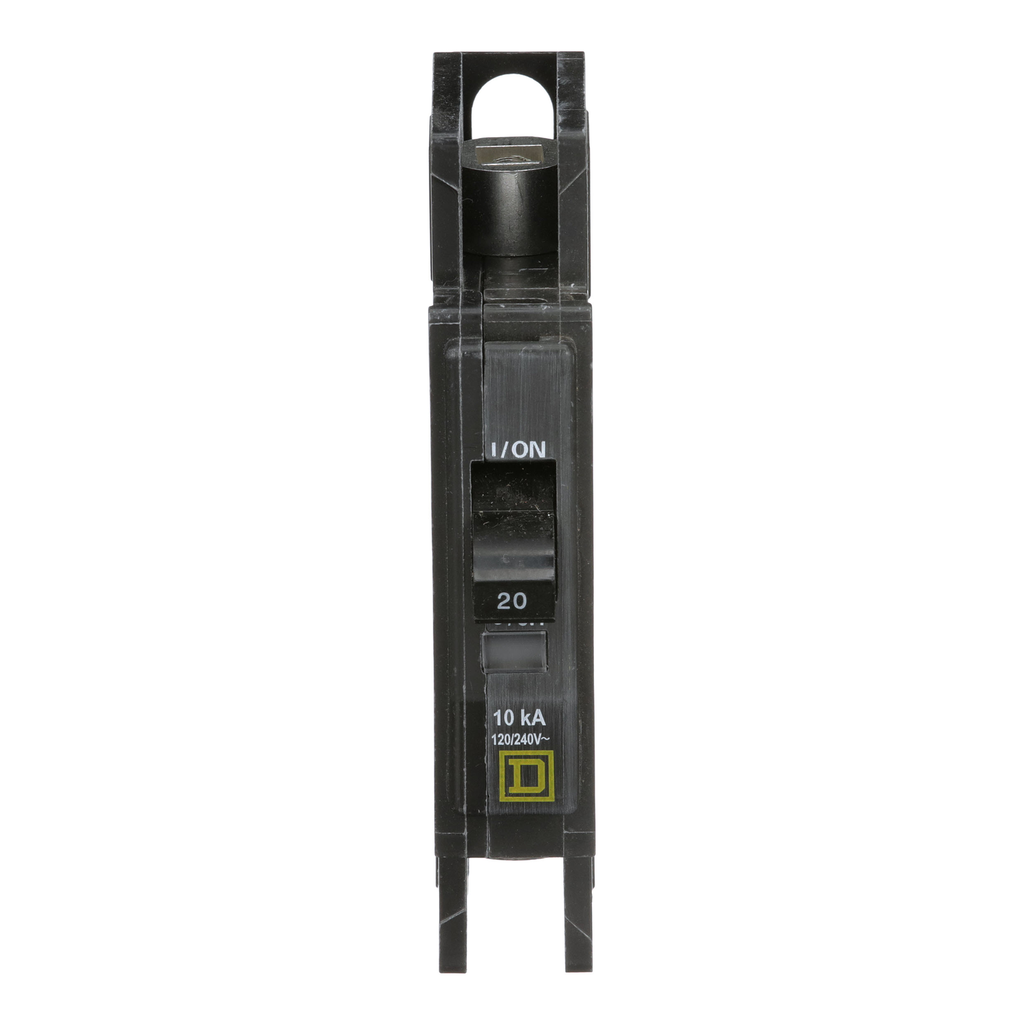

Mayer-DDS-Mini circuit breaker, QOU, 20A, 1 pole, 120/240 VAC, 10kA, field reversible lugs-2
  • Country of Origin: USA
  • Depth: 2.95 in
  • Height: 4.05 in
  • Warranty Length: 18 mth
  • Width: 0.75 in
QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. QOU circuit breakers have been verified to adhere to their datasheet specifications by UL and CSA. A range of accessories can be found for these breakers with their product range and are versatitle in their mounting. [Delete]
QTY
  • Product Description
  • Specifications
QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. QOU circuit breakers have been verified to adhere to their datasheet specifications by UL and CSA. A range of accessories can be found for these breakers with their product range and are versatitle in their mounting. [Delete]
  • Environment
    • Product Certifications : IEC || CSA || UL Listed
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2111016
    • Halogen Content Performance : Halogen free product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant
  • Complementary
    • Height : 4.05 in
    • Tightening Torque : 45-45 lbf.in (AWG 14...AWG 2)
    • Electrical Connection : slotted box lugs, line side || slotted box lugs, load side
    • Mounting Mode : unit mount
    • Line Rated Current : 20 A
    • Awg Gauge : AWG 14...AWG 2 aluminium/copper
    • Width : 0.75 in
    • Depth : 2.95 in
    • [Ue] Rated Operational Voltage : 120/240 V AC || 120 V AC || 48 V DC
  • Specifications
    • Country of Origin : United States
    • Width : 0.75 in
    • Height : 4.05 in
    • Range Of Product : QOU
    • Circuit Breaker Type : standard
    • Product Or Component Type : miniature circuit-breaker
    • Circuit Breaker Application : HACR rated
