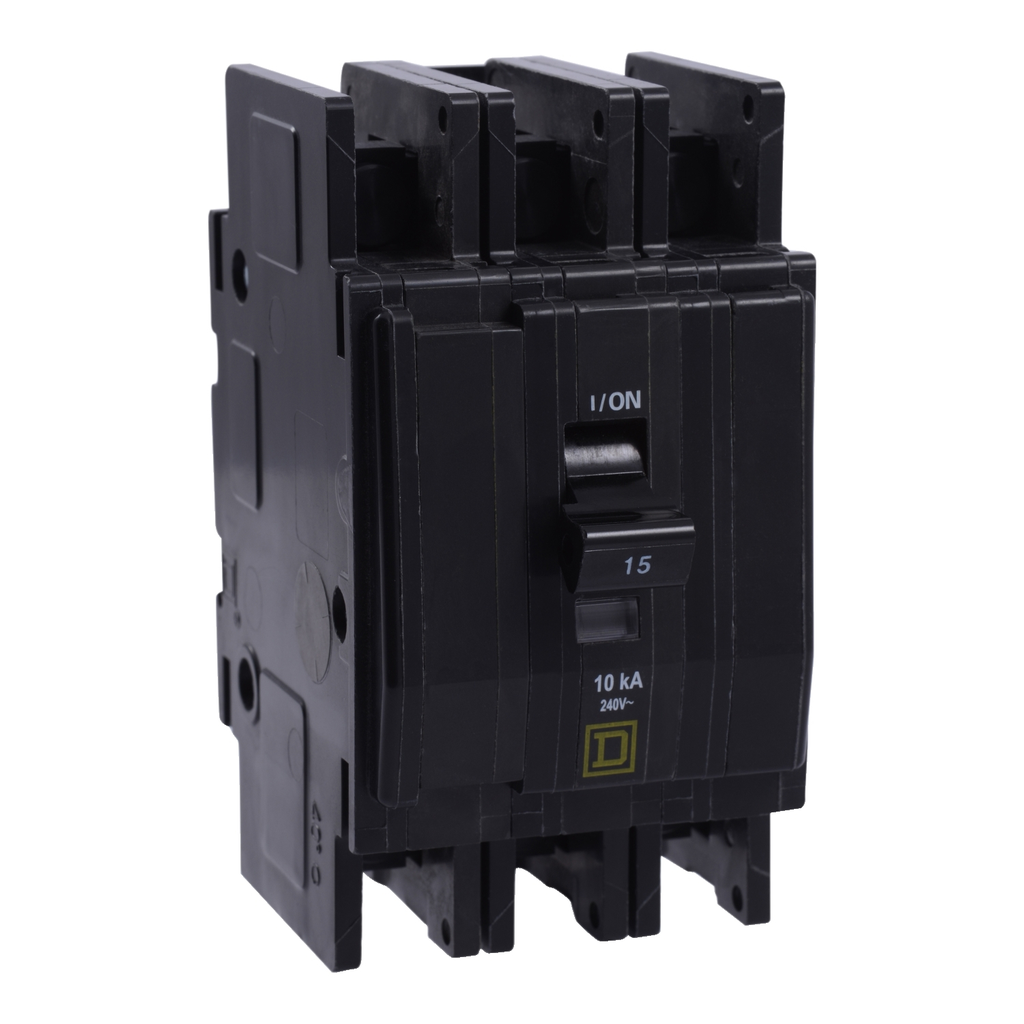

QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This three pole QOU miniature circuit breaker is rated as 15A, 240VAC. This circuit breaker provides 10 kA breaking capacity. QOU circuit breakers have been verified to adhere to their datasheet specifications by UL and CSA. Equipped with ring terminal connectors to facilitate secure and reliable wire terminations. Ideal for applications requiring bolted connections and enhanced vibration resistance. Features field-reversible lugs, allowing flexible installation configurations to accommodate various wiring orientations and panel layouts.

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Electrical Connection
• ring tongue, line side
• ring tongue, load side
• Persona Type Names
• End User
• Original Equipment Manufacturer
• Persona Type Ids
• EU
• OM
• Tightening Torque
• 45-45 lbf.in (AWG 14...AWG 2)
• AWG Gauge
• AWG 14...AWG 2 aluminium/copper
• UE Rated Operational Voltage
• 120/240 V AC
• 240 V AC
• 120 V AC
• 48 V DC

• Important Information Attributes
• B2B Bullet Point 1 : Ideal for OEM applications and have the Square D’s unique Visi-Trip Indicator feature.
• B2B Bullet Point 2 : Can be DIN rail-mounted, surface-mounted, or flush-mounted.
• B2B Bullet Point 3 : Simple design and clear instructions help you install correctly.
• B2B Bullet Point 4 : Single handle with internal common trip.
• B2B Bullet Point 5 : Field-installable quick connectors.
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 2534
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Tier Id : 3
• Tier : 3
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• H And D Domain : Safety
• H And D Subrange : INDUS
• H And D Enrichment Assignment : no
• H And D Enrichment Function : MCB
• H And D Enrichment Class 3 : Circuit Breakers
• H And D Enrichment Class 4 : MCB UL 3P
• Energy Efficiency Optimized : False
• Halogen Free Status : Halogen free product
• Package Weight Lbs : 517.095 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : QOU
• Returnability : No
• Sustainable Packaging : No
• Accessory Separate Part Type : rotatable fixing lug
• Pep Code : ENVPEP2111016
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : QOU
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=403303&lang=en-us
• Take Back : No
• Halogene Performance : Halogen free product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2111016
• EU ROHS Directive : Compliant
• Halogen Content Performance : Halogen free product
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2111016
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
