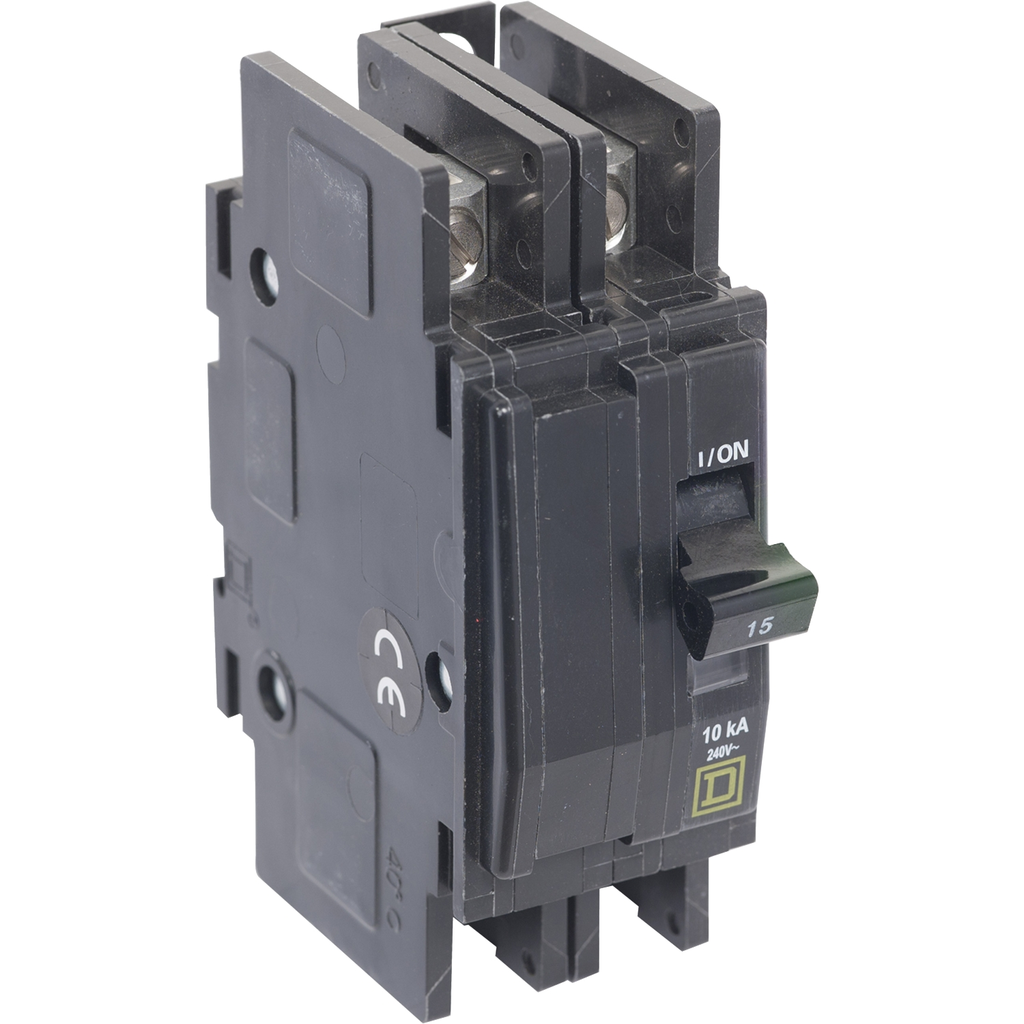

Mini circuit breaker, QOU, 15A, 2 pole, 240 VAC, 10kA

Mini circuit breaker, QOU, 15A, 2 pole, 240 VAC, 10kA

SQDQOU215H QOU215H 785901848462
144.45 / EACH
  • Certifications: CSA, IEC, UL Listed
  • Circuit Breaker Type: Standard
  • Depth: 2.95 in
  • Height: 4.05 in
  • Line Rated Current: 15 A
  • Mounting Type: Unit Mount
  • Short Circuit Current: 10 kA
  • Warranty Length: 18 mth
  • Width: 1.5 in
QO™ and QOU Miniature Circuit Breakers, QOU215H, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.
  • Product Description
  • Specifications
QO™ and QOU Miniature Circuit Breakers, QOU215H, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.
  • Warranty : 18 months
  • Breaking Capacity : 10 kA 240 V AC
  • Circuit Breaker Application : HACR and Switching Duty rated
  • Range Of Product : QOU
  • Line Rated Current : 15 A
  • Poles Description : 2P
  • Mounting Mode : unit mount
  • Maximum Depth : 2.95 in
  • Maximum Height : 4.05 in
  • Awg Gauge : AWG 14...AWG 2 aluminium/copper
  • Product Or Component Type : miniature circuit-breaker
  • Circuit Breaker Type : standard
  • Electrical Connection : slotted box lugs, line side || slotted box lugs, load side
  • Product Certifications : UL Listed || IEC || CSA
  • Tightening Torque : 45-45 lbf.in AWG 14...AWG 2)
  • Maximum Width : 1.5 in
  • [Ue] Rated Operational Voltage : 240 V AC
  • Short-Circuit Current : 10 kA
