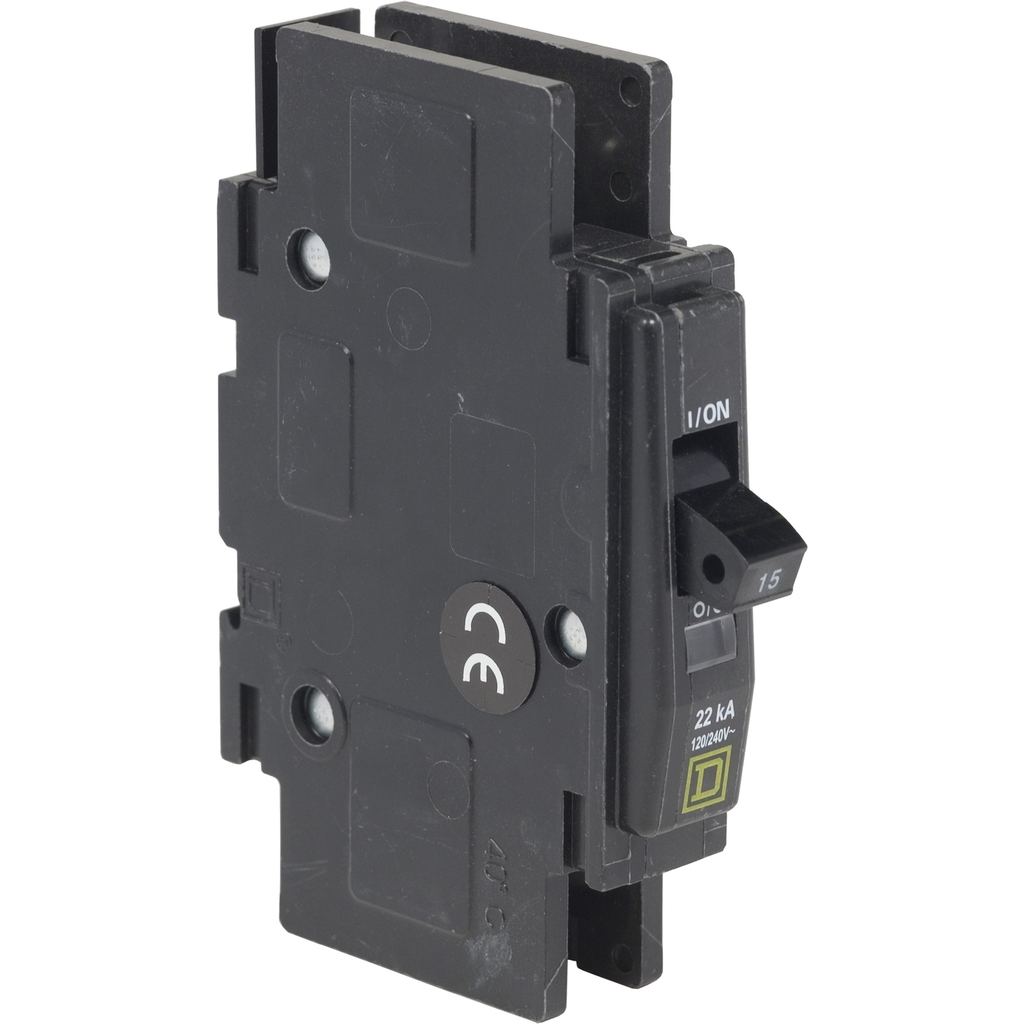

QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This one pole QOU miniature circuit breaker is rated as 15A, 240VAC. This circuit breaker provides 10 kA breaking capacity. QOU circuit breakers have been verified to adhere to their datasheet specifications by UL and CSA.

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Features
• QO MCBs are designed to sheild electronics from short-circuits and overcurrent
• Provides instaneous and time-delayed overcurrent protection
• Idle application for OEMs due to their high performances and multiple mounting options
• Product has been verified by UL and CSA to adhere to the electrical specs stated on the data sheet

• Conformance Attributes
• Product Certifications : IEC, CSA, UL Listed
• Complementary Attributes
• Line Rated Current : 15 A
• Important Information Attributes
• Persona Type Ids : EU, OM
• Persona Type Names : End User, Original Equipment Manufacturer
• Electrical Connection : slotted box lugs, line side, slotted box lugs, load side
• Carbon Footprint Of The Distribution Phase A4 : 0.0216538748, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0306803927
• Carbon Footprint Of The Installation Phase A5 : 0.0000419225, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 1 kg CO2 eq., 0.9806625663
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 17 kg CO2 eq., 17.3042434783
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-18
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• H And D Domain : Safety
• H And D Subrange : INDUS
• H And D Enrichment Assignment : no
• H And D Enrichment Function : MCB
• H And D Enrichment Class 3 : Circuit Breakers
• H And D Enrichment Class 4 : MCB UL 1P
• AWG Gauge : AWG 14...AWG 2 aluminium/copper
• Circuit Breaker Application : HACR rated
• Circuit Breaker Type : high magnetic
• Energy Efficiency Optimized : False
• Halogen Free Status : Halogen free product
• Mounting Mode : unit mount
• Package Weight Lbs : 167.829 g
• Poles Description : 1P
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : QOU
• Returnability : Yes
• Short Circuit Current : 10 kA
• Sustainable Packaging : No
• Tightening Torque : 45-45 lbf.in (AWG 14...AWG 2)
• Total Lifecycle Carbon Footprint : 18 kg CO2 eq.
• Ue Rated Operational Voltage2 : 120/240 V AC
• Medium Desc : Mini circuit breaker, QOU, 15A, 1 pole, 120/240 VAC, 10kA, high magnetic
• Stocking Flag : N
• Product Kit Identifier : N
• Pep Code : ENVPEP2111016EN
• Database Version : 2016-11
• Pep Verification Date : 2021-11-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120V and rated current 20A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1p& 10- Rated breaking capacity 10KA
• Functional Unit Unit : unit
• Energy Model Manufacturing A1 A3 2 : Energy model used: Mexico
• Energy Model Installation A5 2 : Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
• Energy Model Use B6 2 : Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
• Energy Model End Of Life C1 C4 2 : Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
• Global Commercial Status : Commercialised
• Ue Rated Operational Voltage5 : 120/240 V AC
• Environment Attributes Main
• Take Back : No, Nej
• China ROHS Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• EU ROHS Directive : Compliant , Compliant
• ROHS Exemption Information : Yes
• Halogene Performance : Halogen free product
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 18.3372822345
• Environmental Disclosure : ENVPEP2111016EN
• Halogen Content Performance : Halogen free product
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2111016EN
• Pep Verification Date : 2021-11-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : QOU
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Depth : 2.95 in
