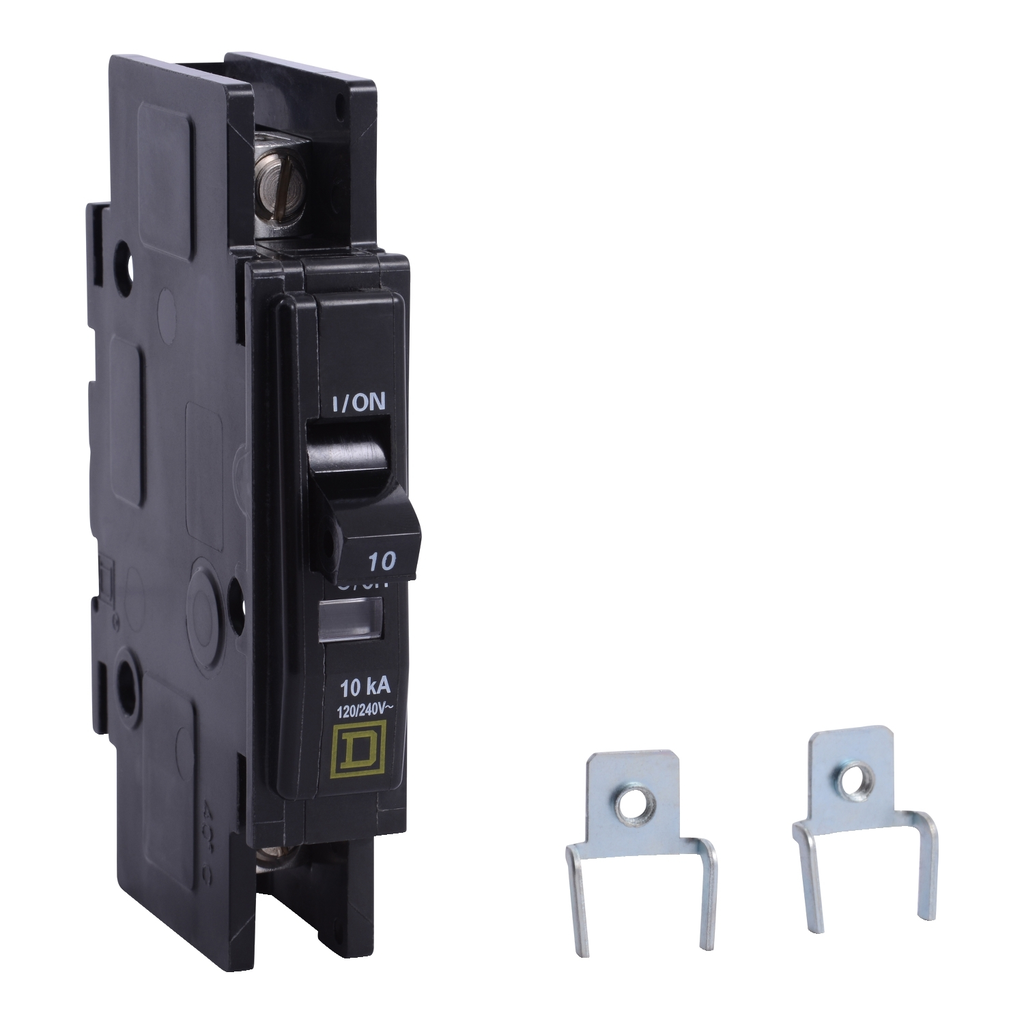

Mini circuit breaker, QOU, 10A, 1 pole, 120/240 VAC, 10kA, mounting foot

Mini circuit breaker, QOU, 10A, 1 pole, 120/240 VAC, 10kA, mounting foot

SQDQOU1103100 QOU1103100 785901630821
41.53 / EACH
  • Certifications: CSA, IEC, UL Listed
  • Circuit Breaker Type: Standard
  • Depth: 2.95 in
  • Height: 4.05 in
  • Line Rated Current: 10 A
  • Mounting Type: Unit Mount
  • Short Circuit Current: 10 kA, 5 kA
  • Warranty Length: 18 mth
  • Width: 0.75 in
QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This one pole QOU miniature circuit breaker is rated as 10A, 120/240 VAC. This unit provides 10 kA breaking capacity. A full line of accessories are available for these circuit breakers. This breaker has tapped mounting feet. The slotted box lugs will accept one 14 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a maximum height of 4.05 inches, a maximum width of 0.75 inch and maximum depth of 2.95 inches. QOU circuit breakers are UL Listed and CSA Certified.
  • Product Description
  • Specifications
QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This one pole QOU miniature circuit breaker is rated as 10A, 120/240 VAC. This unit provides 10 kA breaking capacity. A full line of accessories are available for these circuit breakers. This breaker has tapped mounting feet. The slotted box lugs will accept one 14 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a maximum height of 4.05 inches, a maximum width of 0.75 inch and maximum depth of 2.95 inches. QOU circuit breakers are UL Listed and CSA Certified.
  • Poles Description : 1P
  • Line Rated Current : 10 A
  • Warranty : 18 months
  • Circuit Breaker Type : standard
  • Breaking Capacity : 10 kA 120/240 V AC || 10 kA 120 V AC || 5 kA 48 V DC
  • Product Certifications : IEC || CSA || UL Listed
  • Short-Circuit Current : 10 kA || 5 kA
  • [Ue] Rated Operational Voltage : 120/240 V AC || 120 V AC || 48 V DC
  • Maximum Height : 4.05 in
  • Maximum Depth : 2.95 in
  • Mounting Mode : unit mount
  • Tightening Torque : 45-45 lbf.in (AWG 14...AWG 2)
  • Awg Gauge : AWG 14...AWG 2 aluminium/copper
  • Product Or Component Type : miniature circuit-breaker
  • Range Of Product : QOU
  • Maximum Width : 0.75 in
  • Electrical Connection : slotted box lugs, line side || slotted box lugs, load side
  • Accessory / Separate Part Type : tapped mounting foot
