SQUARE D

Mini circuit breaker, QOU, 10A, 1 pole, 120/240 VAC, 10kA, field reversible lugs

MINIATURE CIRCUIT BREAKER 120/

SQDQOUR110 QOUR110 785901224730
42.57 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Mini circuit breaker, QOU, 10A, 1 pole, 120/240 VAC, 10kA, field reversible lugs-2
  • Certifications: CSA, IEC, UL Listed
  • Circuit Breaker Type: Standard

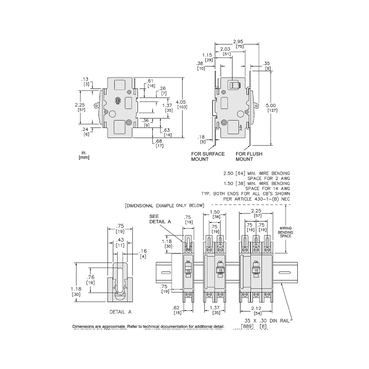

  • Depth: 2.95 in
  • Height: 4.05 in
  • Line Rated Current: 10 A
  • Mounting Type: Unit Mount
  • Warranty Length: 18 mth
  • Width: 0.75 in
QOUR miniature molded case circuit breakers are intended for use in residential and commercial applications. These circuit breakers are unit mount thermal magnetic circuit breakers. QOU breakers will automatically open a circuit under overload or short circuit conditions. They have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped. You can flush mount, surface mount or DIN rail mount these circuit breakers. This 1 pole QOUR miniature circuit breaker is rated as 10 A at 120/240 VAC. This unit provides 10 kA breaking capacity. For added convenience, this circuit breaker has reversible lugs. This permits the breaker to be flush mounted and then wired from the back. They are tested and listed according to UL Standard 489 and CSA Standard C22.2 No. 5-02 for circuit breakers. QOU circuit breakers are UL Listed under UL File E84967 DIVQ and are CSA Certified.
QTY
  • Product Description
  • Specifications
QOUR miniature molded case circuit breakers are intended for use in residential and commercial applications. These circuit breakers are unit mount thermal magnetic circuit breakers. QOU breakers will automatically open a circuit under overload or short circuit conditions. They have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped. You can flush mount, surface mount or DIN rail mount these circuit breakers. This 1 pole QOUR miniature circuit breaker is rated as 10 A at 120/240 VAC. This unit provides 10 kA breaking capacity. For added convenience, this circuit breaker has reversible lugs. This permits the breaker to be flush mounted and then wired from the back. They are tested and listed according to UL Standard 489 and CSA Standard C22.2 No. 5-02 for circuit breakers. QOU circuit breakers are UL Listed under UL File E84967 DIVQ and are CSA Certified.
  • Environment
    • Product Certifications : CSA || UL Listed || IEC
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : N/A
    • Eu Rohs Directive : Compliant with Exemptions
    • Halogen Content Performance : Halogen free product
  • Complementary
    • Height : 4.05 in
    • Tightening Torque : 45-45 lbf.in (AWG 14...AWG 2)
    • Electrical Connection : slotted box lugs, line side || slotted box lugs, load side
    • Mounting Mode : unit mount
    • Line Rated Current : 10 A
    • Awg Gauge : AWG 14...AWG 2 aluminium/copper
    • Width : 0.75 in
    • Depth : 2.95 in
    • [Ue] Rated Operational Voltage : 120/240 V AC || 120 V AC || 48 V DC
  • Specifications
    • Range Of Product : QOU
    • Circuit Breaker Type : standard
    • Product Or Component Type : miniature circuit-breaker
    • Circuit Breaker Application : HACR rated
