Mini circuit breaker, QOU, 100A, 2 pole, 120/240VAC, 10kA, shunt trip

Mini circuit breaker, QOU, 100A, 2 pole, 120/240VAC, 10kA, shunt trip

SQDQOU21001021 QOU21001021 785901272182
374.01 / EACH
  • Certifications: CSA, IEC, UL Listed
  • Circuit Breaker Type: Standard
  • Depth: 2.95 in
  • Height: 4.45 in
  • Line Rated Current: 100 A
  • Mounting Type: Unit Mount
  • Short Circuit Current: 10 kA, 5 kA
  • Warranty Length: 18 mth
  • Width: 2.25 in
QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This two pole QOU miniature circuit breaker is rated as 100A, 240 VAC. This unit provides 10 kA breaking capacity. A full line of accessories are available for these circuit breakers. This breaker has a shunt trip with a 120/208/240 VAC control circuit voltage. The slotted box lugs will accept one 12 AWG to 2/0 AWG copper or aluminum wire. This circuit breaker has a maximum height of 4.45 inches, a maximum width of 2.25 inch and maximum depth of 2.95 inches. QOU circuit breakers are UL Listed and CSA Certified.
  • Product Description
  • Specifications
QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This two pole QOU miniature circuit breaker is rated as 100A, 240 VAC. This unit provides 10 kA breaking capacity. A full line of accessories are available for these circuit breakers. This breaker has a shunt trip with a 120/208/240 VAC control circuit voltage. The slotted box lugs will accept one 12 AWG to 2/0 AWG copper or aluminum wire. This circuit breaker has a maximum height of 4.45 inches, a maximum width of 2.25 inch and maximum depth of 2.95 inches. QOU circuit breakers are UL Listed and CSA Certified.
  • Awg Gauge : AWG 12...AWG 2/0 aluminium/copper
  • Product Or Component Type : miniature circuit-breaker
  • Accessory / Separate Part Type : shunt trip 120/208/240 V AC
  • Poles Description : 2P
  • [Ue] Rated Operational Voltage : 120/240 V AC || 120 V AC || 60 V DC
  • Line Rated Current : 100 A
  • Product Certifications : UL Listed || CSA || IEC

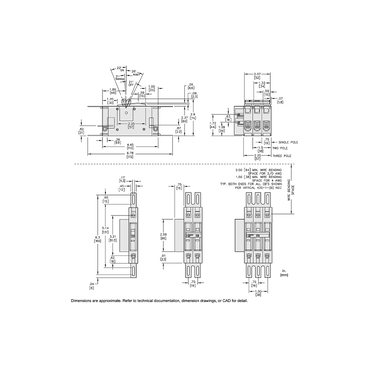

  • Maximum Width : 2.25 in
  • Mounting Mode : unit mount
  • Maximum Height : 4.45 in
  • Breaking Capacity : 10 kA 120/240 V AC || 10 kA 120 V AC || 5 kA 60 V DC
  • Maximum Depth : 2.95 in
  • Electrical Connection : slotted box lugs, line side || slotted box lugs, load side
  • Circuit Breaker Type : standard
  • Short-Circuit Current : 10 kA || 5 kA
  • Range Of Product : QOU
  • Warranty : 18 months
  • Tightening Torque : 45-45 lbf.in (AWG 12...AWG 2/0)
