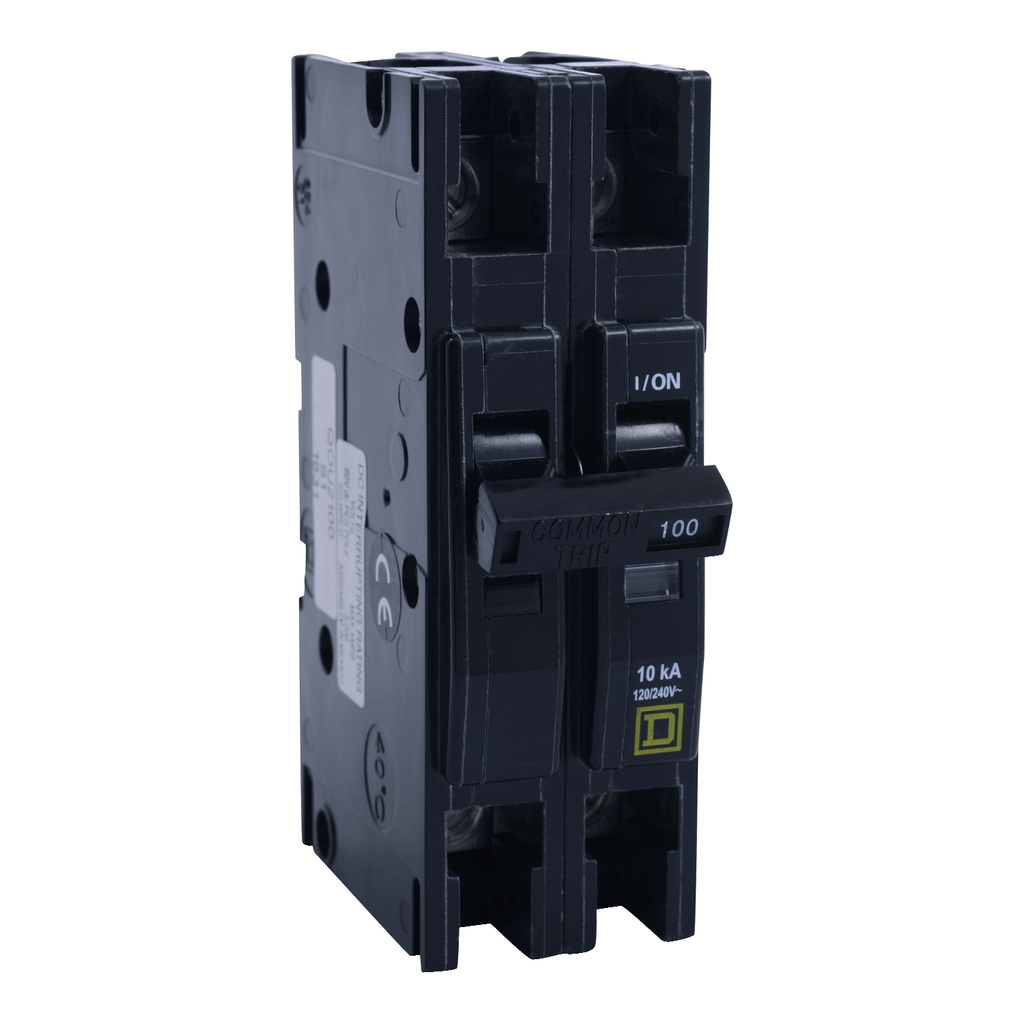

Mini circuit breaker, QOU, 100A, 2 pole, 120/240 VAC, 10kA

Mini circuit breaker, QOU, 100A, 2 pole, 120/240 VAC, 10kA

SQDQOU2100 QOU2100 785901060284
211.50 / EACH
  • Certifications: CSA, IEC, UL Listed
  • Circuit Breaker Type: Standard
  • Depth: 2.95 in
  • Height: 4.45 in
  • Line Rated Current: 100 A
  • Mounting Type: Unit Mount
  • Short Circuit Current: 10 kA, 5 kA
  • Warranty Length: 18 mth
  • Width: 1.5 in
QO™ and QOU Miniature Circuit Breakers, QOU2100, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.
  • Product Description
  • Specifications
QO™ and QOU Miniature Circuit Breakers, QOU2100, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.
  • Maximum Height : 4.45 in
  • Product Or Component Type : miniature circuit-breaker
  • Maximum Depth : 2.95 in
  • Range Of Product : QOU
  • Awg Gauge : AWG 12...AWG 2/0 aluminium/copper
  • Poles Description : 2P
  • Line Rated Current : 100 A
  • Warranty : 18 months
  • Maximum Width : 1.5 in
  • [Ue] Rated Operational Voltage : 120/240 V AC || 120 V AC || 60 V DC
  • Tightening Torque : 45-45 lbf.in (AWG 12...AWG 2/0)
  • Short-Circuit Current : 10 kA || 5 kA
  • Electrical Connection : slotted box lugs, line side || slotted box lugs, load side
  • Breaking Capacity : 10 kA 120/240 V AC || 10 kA 120 V AC || 5 kA 60 V DC
  • Mounting Mode : unit mount
  • Circuit Breaker Type : standard
  • Product Certifications : CSA || UL Listed || IEC
